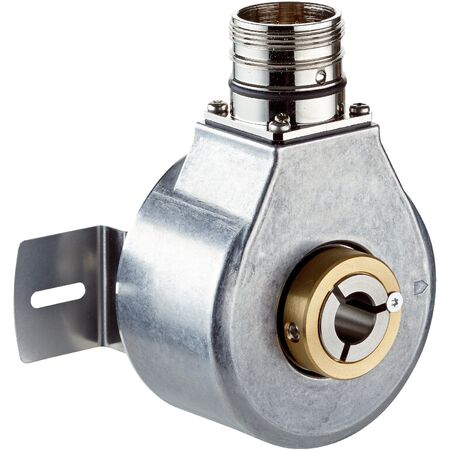

Incremental Rotary Encoder DBS60E-RHFA00360 | 360 Pulses/Rev | IP65 Rated | High Speed up to 9000 min⁻¹ | by SICK
The Incremental Rotary Encoder DBS60E-RHFA00360 delivers precise rotational position measurement with 360 pulses per revolution, making it ideal for industrial automation and robotics. Its robust aluminum housing and IP65 rating ensure durability in harsh environments, while the high maximum operating speed of 9,000 min⁻¹ supports demanding applications like conveyor systems and machine tool feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Mean time to dangerous failure (MTTFD): 500 years (EN ISO 13849-1)
- Pulses per revolution: 360
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulse
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental TTL / HTL
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Supply voltage: 4.5 to 30 V
- Connection type: Male M23 12-pin radial connector
- Start up torque: > 0.5 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliant to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (housing and shaft side)
- Operating temperature range: -30°C to +100°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 63mm x 83mm x 63mm
- Weight: 0.25 kg
Key Features
- 360 pulses per revolution for high resolution
- Through hollow shaft design with 15 mm diameter rear clamping
- Robust aluminum housing and flange with stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Operating temperature range from -30°C to +100°C
- Short-circuit and reverse polarity protection
- High maximum operating speed up to 9,000 min⁻¹
- Low power consumption ≤ 0.5 W without load
- 6-channel incremental TTL/HTL communication interface
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial automation for precise rotational position measurement
- Robotics and motion control systems
- Conveyor and packaging machinery
- Machine tool feedback systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Durable materials and robust design extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK DBS60E-RHFA00360 incremental encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
