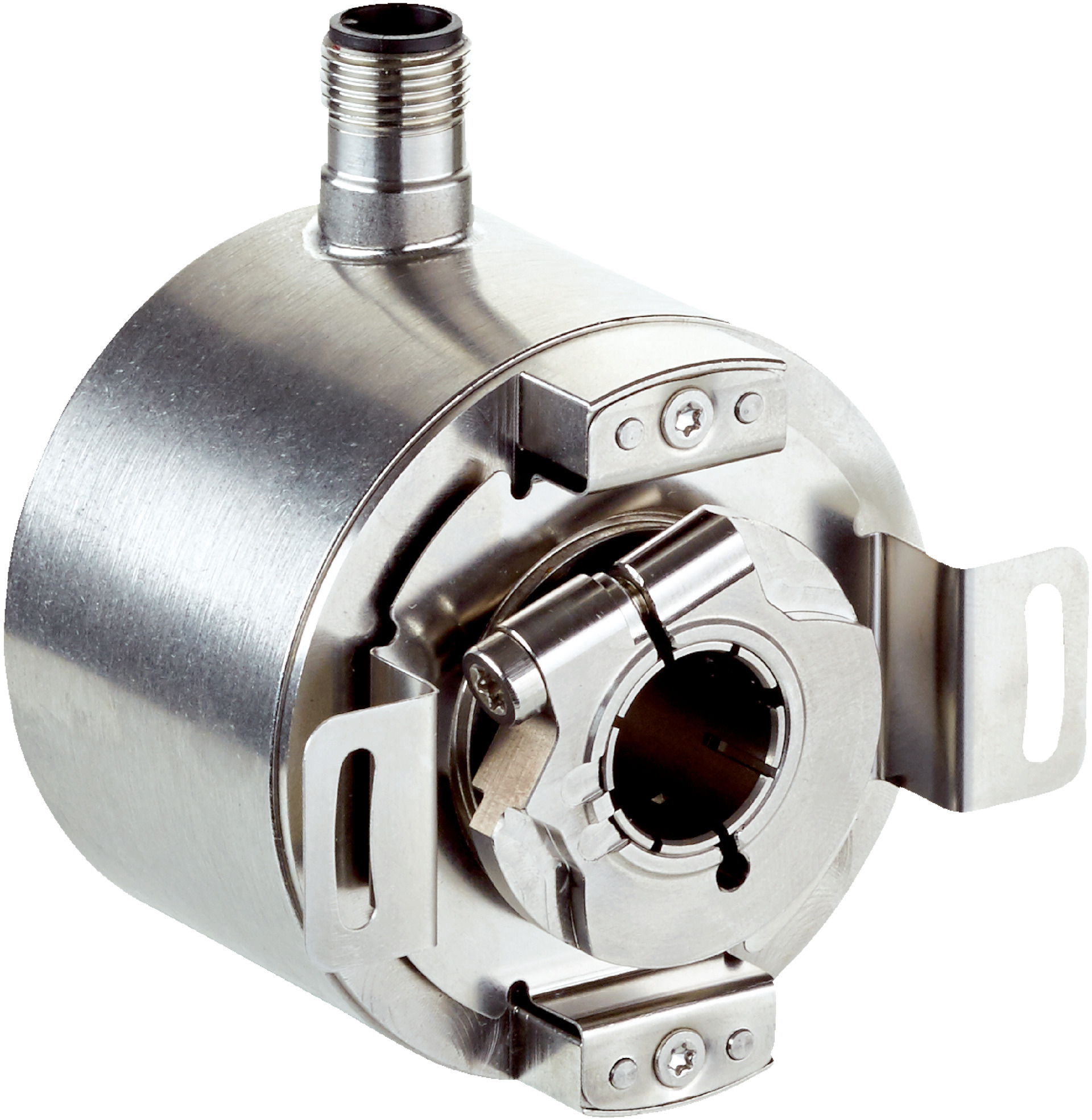

Incremental Rotary Encoder SICK DFS60I-BBEC00360 | 360 Pulses/Rev | IP67 Rated | Stainless Steel Housing | by SICK
The SICK DFS60I-BBEC00360 incremental rotary encoder delivers high precision with 360 pulses per revolution and a measuring step of 90°. Designed for industrial automation and motion control, it features a robust stainless steel housing and an IP67 rating for dust and water protection. With a wide operating temperature range from –40 °C to +100 °C, this encoder is perfect for demanding environments, ensuring reliable performance in robotics, conveyor systems, and machine tools.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 360
- Measuring step: 90°, electric/pulses per revolution
- Measuring step deviation: ±0.008°
- Error limits: ±0.03°
- Communication interface: Incremental HTL / Push-pull, 6-channel
- Initialization time: 40 ms
- Output frequency: ≤ 820 kHz
- Load current: ≤ 30 mA
- Operating current: 40 mA (without load)
- Power consumption: ≤ 0.5 W (without load)
- Load resistance: ≥ 120 Ω
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 10 ... 32 V
- Reference signal: 1, position 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 8 mm front clamp
- Shaft, flange, housing material: Stainless steel V2A
- Start up torque: 1 Ncm (+20 °C)
- Operating torque: 0.5 Ncm (+20 °C)
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.05 mm radial, ±0.01 mm axial
- Operating speed: ≤ 6,000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP67 (housing and shaft side)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –40 °C to +100 °C
- Storage temperature range: –40 °C to +100 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.5 kg
Key Features
- 360 pulses per revolution with high precision measuring step of 90°
- Robust stainless steel V2A housing, shaft, and flange
- IP67 rated enclosure for protection against dust and water
- High operating speed up to 6,000 min⁻¹
- Reverse polarity and short-circuit protection
- Low power consumption of ≤ 0.5 W without load
- 6-channel incremental HTL / Push-pull communication interface
- Durable bearing lifetime of 3.6 x 10^10 revolutions
- Wide operating temperature range from –40 °C to +100 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor and material handling systems
- Machine tool feedback and positioning
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage in industrial systems
- Durable stainless steel construction extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60I-BBEC00360 incremental encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
