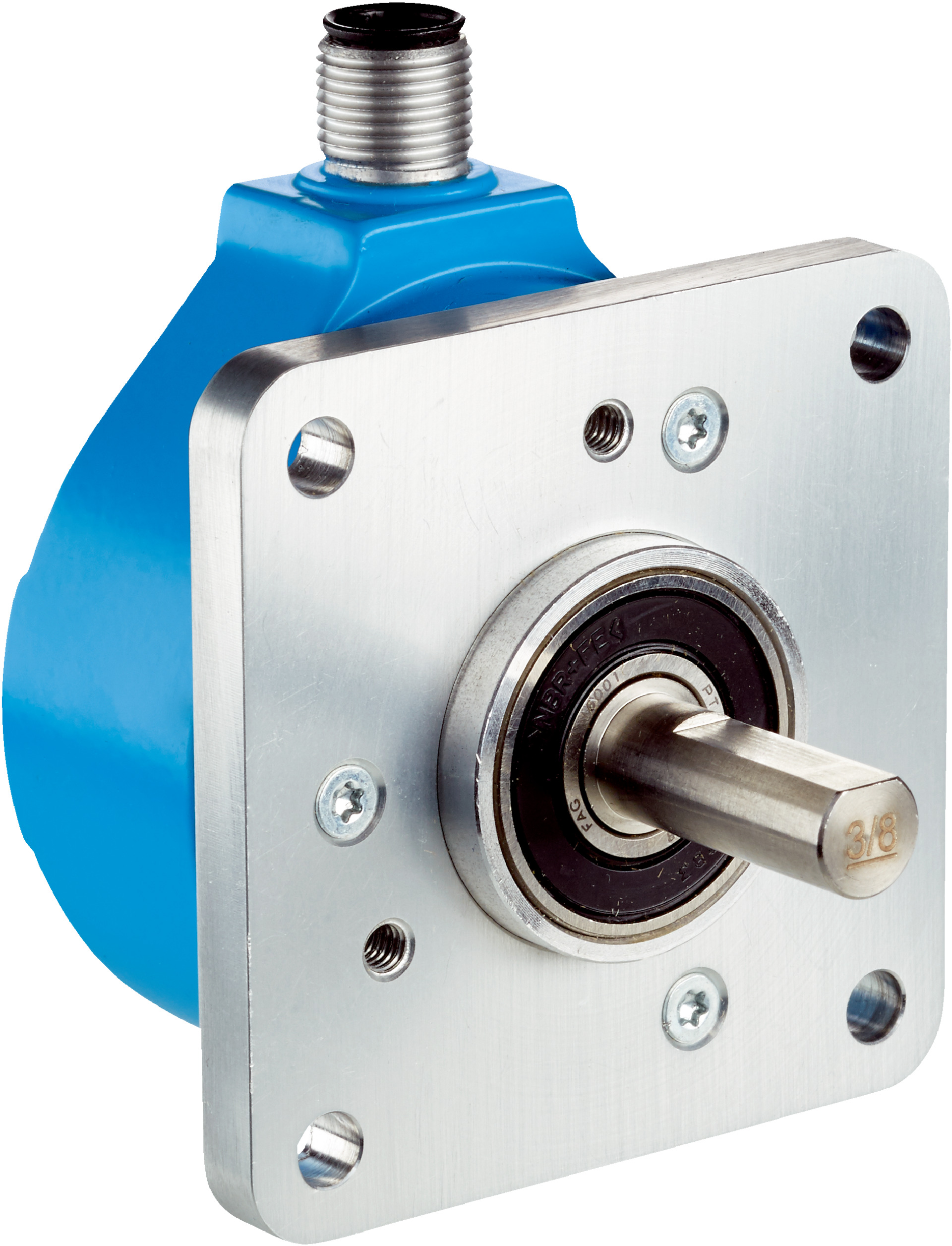

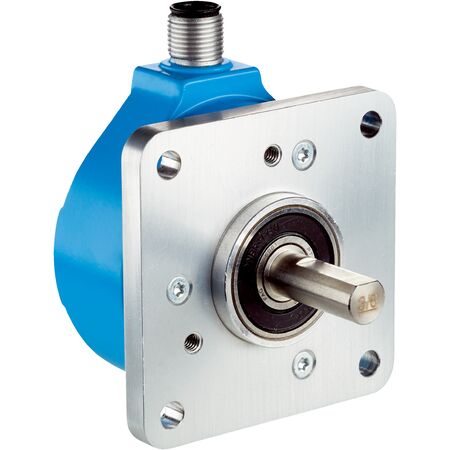

Incremental Rotary Encoder DFS25A-A2D2C000360 | 360 Pulses/Rev | ±0.008° Measuring Step | IP65/IP67 Rated | by SICK
The Incremental Rotary Encoder DFS25A-A2D2C000360 delivers high precision with 360 pulses per revolution and a measuring step deviation of ±0.008°. Designed for industrial automation, robotics, and motion control, it features a robust mechanical design and operates efficiently in temperatures from –30 °C to +85 °C. With IP65 and IP67 ratings, it ensures reliable performance in challenging environments, making it ideal for safety-related applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 330 years (EN ISO 13849-1)
- Pulses per revolution: 360
- Measuring step: ±90°, electric/pulses per revolution
- Measuring step deviation: ±0.008° pulses 100 ... 10,000
- Error limits: ±0.03°
- Communication interface: Incremental, Open Collector
- Number of signal channels: 6-channel
- Initialization time: 40 ms
- Output frequency: 150 kHz
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 8 ... 30 V
- Reference signal: 1, position 90°, logically gated with A and B
- Code sequence: Clockwise
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Mechanical design: Solid shaft, Square flange
- Shaft diameter: 3/8″ with flat
- Shaft length: 19 mm
- Shaft material: Stainless steel 1,4305
- Flange material: Aluminum
- Housing material: Aluminum
- Start up torque: 0.5 Ncm (+20 °C)
- Operating torque: 0.3 Ncm (+20 °C)
- Permissible shaft loading: 80 N (radial), 40 N (axial)
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 15 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –30 °C to +85 °C
- Storage temperature range: –40 °C to +100 °C
- Resistance to shocks: 100 g, 11 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 80mm x 58mm
- Weight: 0.4 kg
Key Features
- 360 pulses per revolution for high resolution
- Measuring step deviation of ±0.008° with error limits of ±0.03°
- 6-channel incremental communication interface with Open Collector output
- Robust mechanical design with solid shaft and square flange
- High operating speed up to 9,000 min⁻¹
- IP65 rated shaft side and IP67 rated housing side for protection against dust and water
- Reverse polarity and short-circuit protection
- Wide operating temperature range from –30 °C to +85 °C
- Low power consumption of 0.7 W without load
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and automation equipment to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor systems and packaging machinery
- Safety-related applications requiring reliable feedback
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DFS25A-A2D2C000360 Incremental Encoder is available for immediate purchase, ideal for industrial automation and safety-related applications requiring precise position feedback.
