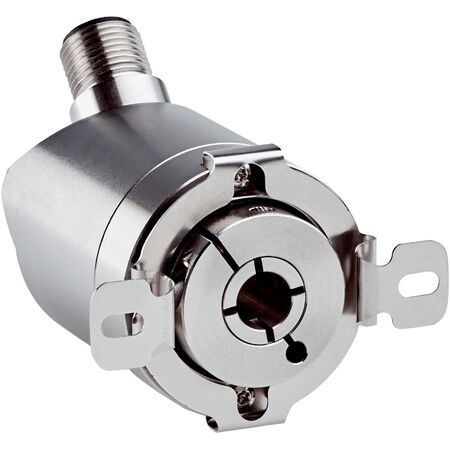

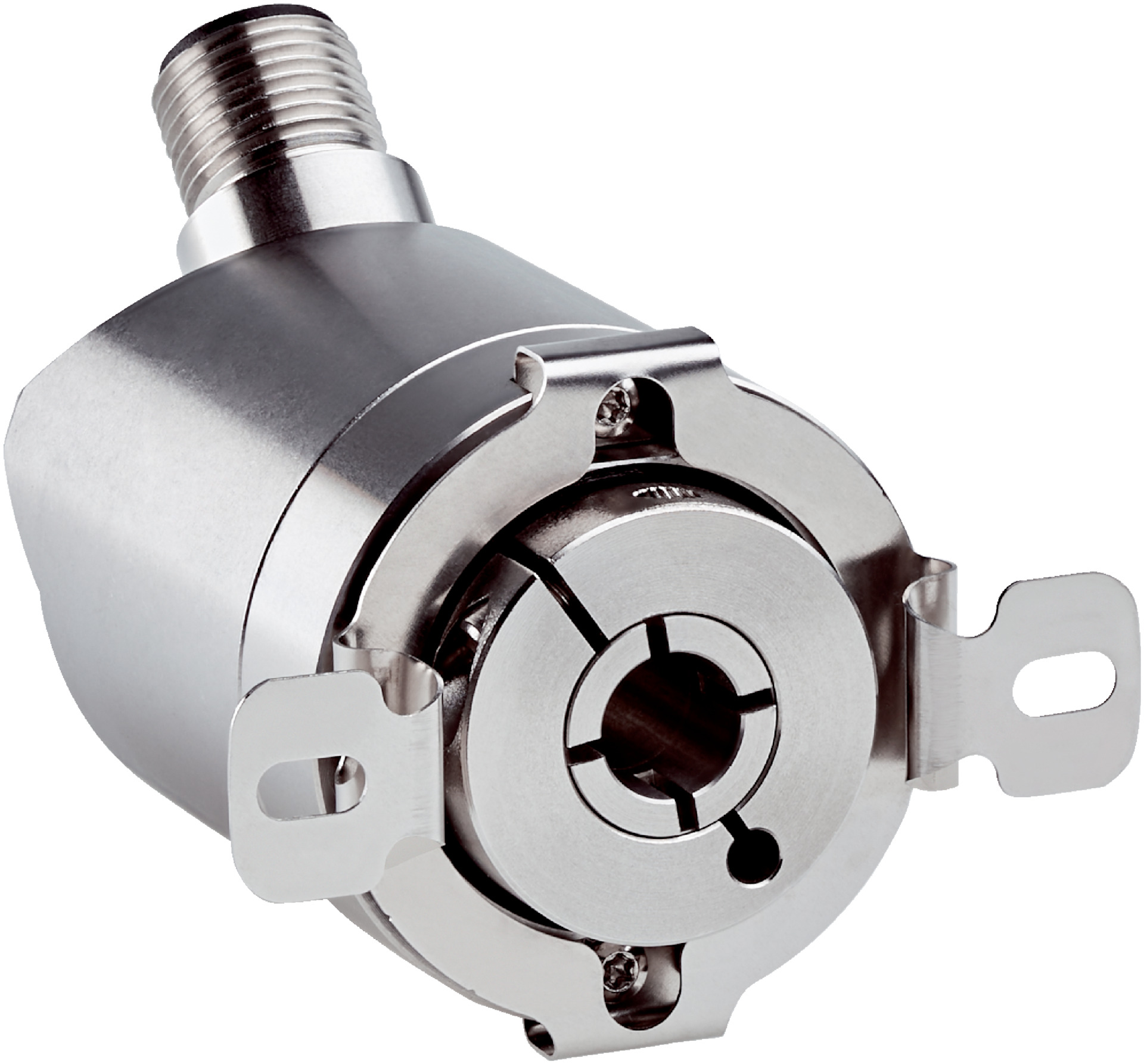

Incremental Rotary Encoder | 360 Steps/Rev | IP67 & IP69K Rated | High Repeatability | by SICK
The Incremental Rotary Encoder AHS36I-BDAC000256 offers 360 steps per revolution and high repeatability with a standard deviation of 0.2° at 20°C. Designed for industrial automation and robotics, it features robust stainless steel housing, operates in extreme temperatures from -40°C to +100°C, and is IP67 and IP69K rated for harsh environments, ensuring reliable performance in precision motion control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 230 years (EN ISO 13849-1)
- Number of steps per revolution: 360
- Error limits G: 0.35° at 20°C
- Repeatability standard deviation σr: 0.2° at 20°C
- Communication interface: SSI
- Initialization time: 100 ms
- Position forming time: 125 µs
- Code type: Gray
- Clock frequency: 2 MHz
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 1.5 W (without load)
- Mechanical design: Blind hollow shaft with 10 mm diameter
- Operating speed: ≤ 6,000 min⁻¹
- Operating temperature range: -40°C to +100°C
- Enclosure rating: IP67 and IP69K
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.2 kg
Key Features
- 360 steps per revolution maximum resolution
- High repeatability with standard deviation of 0.2° at 20°C
- Robust stainless steel housing and shaft material
- IP67 and IP69K rated for harsh environments
- Operating temperature range from -40°C to +100°C
- Reverse polarity protection and low power consumption (≤ 1.5 W)
- Communication via SSI interface with adjustable code sequence
- High mechanical durability with bearing lifetime of 2.0 x 10^9 revolutions
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and mechanical mounting according to manufacturer guidelines.
Applications
- Industrial automation for precise position measurement
- Robotics for accurate motion control
- Machine tools requiring high resolution feedback
- Conveyor systems and packaging machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption minimizes energy usage
- High resistance to environmental factors reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AHS36I-BDAC000256 incremental encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
