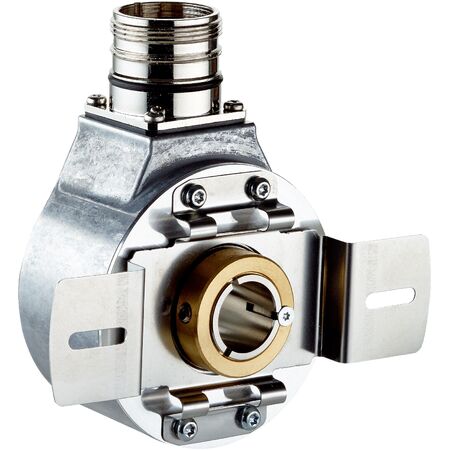

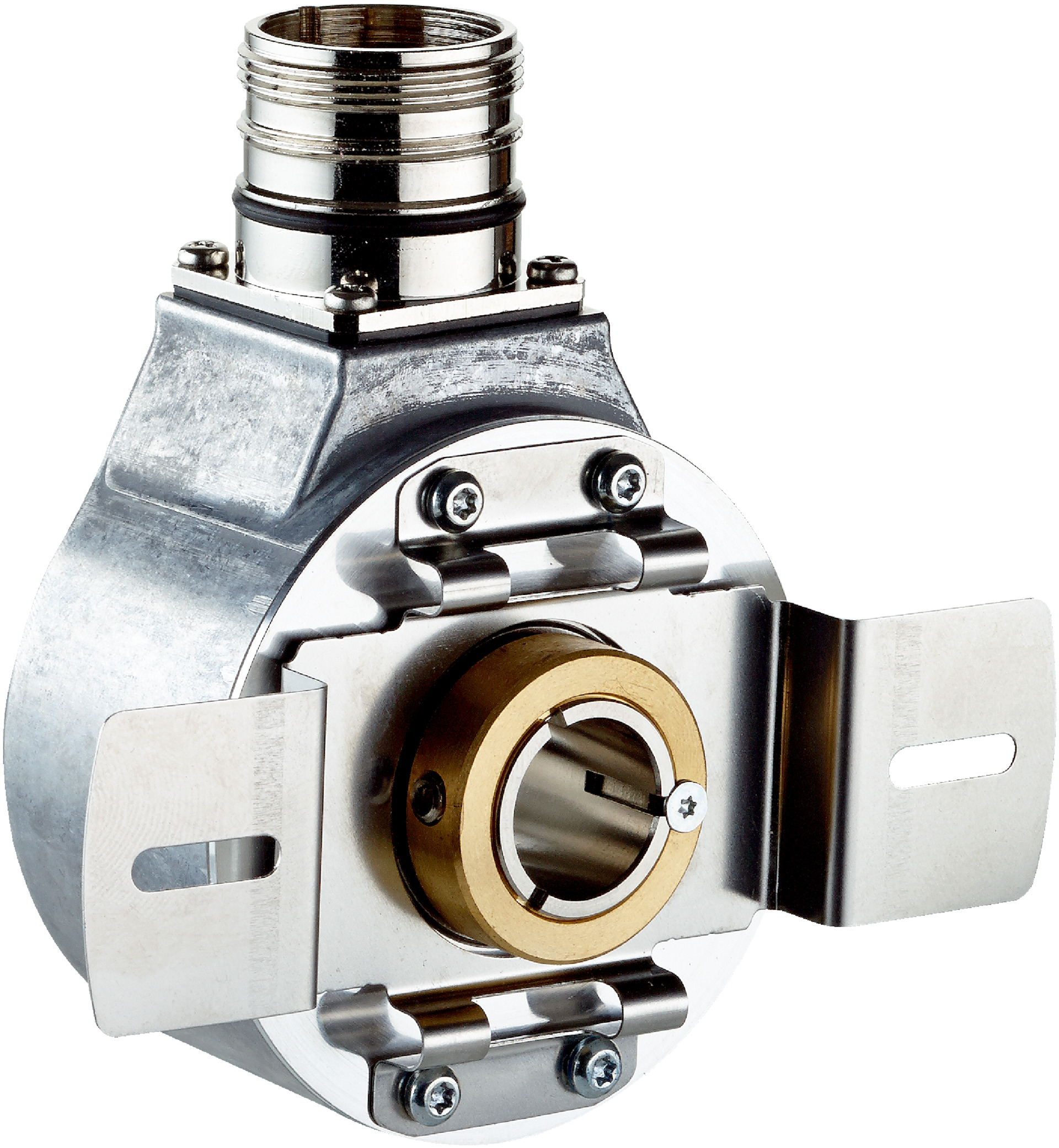

Incremental Rotary Encoder | 3600 Pulses/Rev | IP65 Rated | Through Hollow Shaft Design | by SICK
The Incremental Rotary Encoder DBS60E-THCA03600 offers high resolution with 3600 pulses per revolution, making it ideal for precise industrial automation and control systems. With a robust aluminum housing and IP65 rating, it ensures durability and protection against dust and water, perfect for demanding environments. Designed for applications in robotics, conveyor systems, and machine tool positioning, this encoder delivers reliable performance and low power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 3,600
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 36° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 10%
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 10 to 30 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity and short-circuit protection included
- Mechanical design: Through hollow shaft with 15 mm diameter
- Flange type: 2-sided stator coupling, slot, screw hole circle 63–83 mm
- Materials: Stainless steel shaft, aluminum flange and housing
- Start up torque: > 0.5 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹ (max 9,000 min⁻¹)
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65
- Operating temperature: -30°C to +100°C
- Storage temperature: -40°C to +100°C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 63mm x 83mm x 63mm
- Weight: 0.25 kg
Key Features
- High resolution with 3,600 pulses per revolution
- Through hollow shaft design with 15 mm shaft diameter
- Robust aluminum housing and flange for durability
- IP65 rated enclosure for protection against dust and water
- TTL / RS-422 incremental communication interface
- Short-circuit and reverse polarity protection
- High operating speed up to 9,000 min⁻¹
- Low power consumption ≤ 0.5 W
- EMC compliant according to EN 61000-6-2 and EN 61000-6-3
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor and material handling systems
- Machine tool positioning and feedback
- Safety-related monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Warranty details available upon request from the manufacturer; typically includes coverage against manufacturing defects.
Available Now
The SICK DBS60E-THCA03600 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-related applications.
