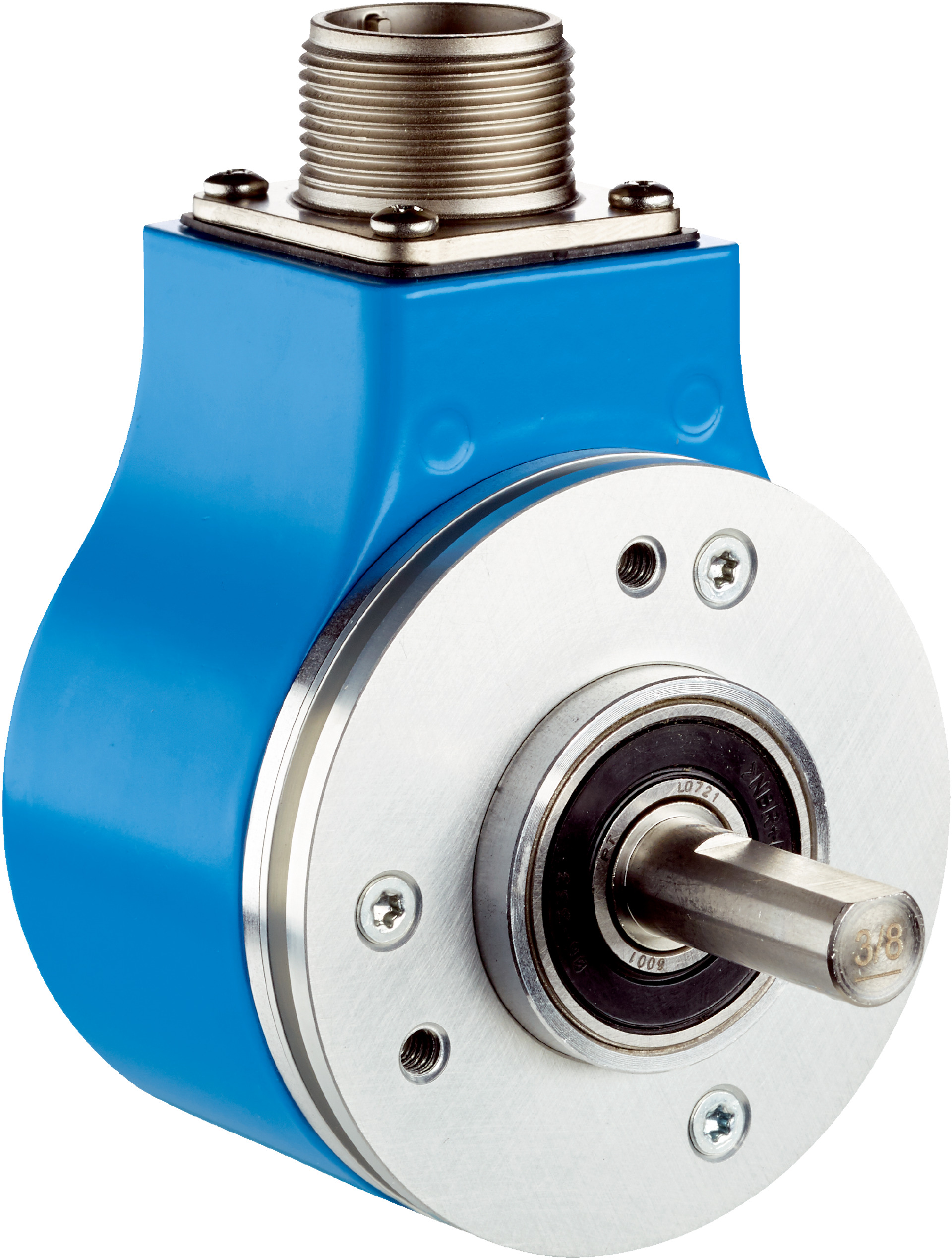

Incremental Rotary Encoder DFS25A-B2CAD003600 | 3600 Pulses/Rev | IP65/IP67 Rated | by SICK
The Incremental Rotary Encoder DFS25A-B2CAD003600 delivers high-resolution measurement with 3600 pulses per revolution, making it ideal for industrial automation and motion control applications. Designed for robust performance, it features an incremental communication interface and a solid shaft with servo flange, ensuring reliability in demanding environments. With a wide operating temperature range from -30°C to +85°C and IP65/IP67 ratings, this encoder is built to withstand harsh conditions while providing precise feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Mean time to dangerous failure (MTTFD): 330 years (EN ISO 13849-1)
- Pulses per revolution: 3600
- Measuring step: ±90° electric/pulses per revolution
- Measuring step deviation: ±0.008° pulses 100 to 10,000
- Error limits: ±0.03°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- 0-set function: H-active, hardware pin controlled
- Initialization time: 40 ms
- Output frequency: 820 kHz
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Connection type: Male connector, MS, 10-pin, radial
- Supply voltage: 8 to 30 V
- Reference signal: 1, positioned at 180° electrical
- Code sequence: Counterclockwise
- Reverse polarity and short-circuit protection included
- Mechanical design: Solid shaft with servo flange
- Shaft diameter: 3/8 inch with flat
- Shaft length: 19 mm
- Shaft material: Stainless steel 1.4305
- Flange and housing material: Aluminum
- Start up torque: 0.5 Ncm at +20°C
- Operating torque: 0.3 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: up to 9000 min⁻¹
- Moment of inertia of rotor: 15 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: up to 500,000 rad/s²
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -30°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 100 g, 11 ms
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 50mm x 80mm x 50mm
- Weight: 0.4 kg
Key Features
- 3600 pulses per revolution for high resolution measurement
- Incremental communication interface with TTL / RS-422
- 6-channel signal output with 0-set function via hardware pin
- Robust mechanical design with solid shaft and servo flange
- High operating speed up to 9000 min⁻¹
- IP65 rated shaft side and IP67 rated housing side for protection
- Reverse polarity and short-circuit protection
- Wide operating temperature range from -30°C to +85°C
- Low power consumption of 0.7 W without load
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation and control systems
- Servo motor feedback and positioning
- Robotics and motion control
- Conveyor and material handling systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS25A-B2CAD003600 incremental encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
