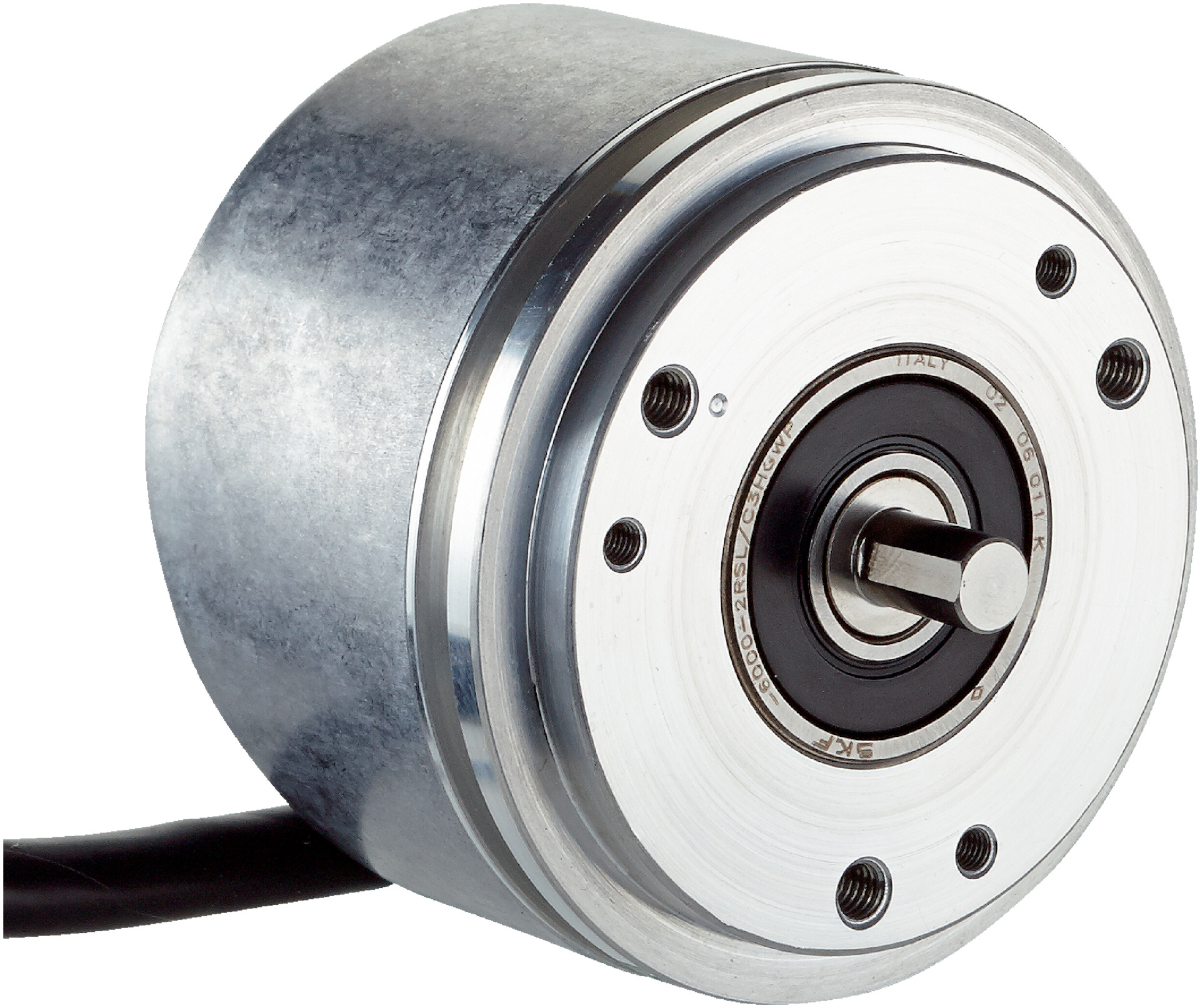

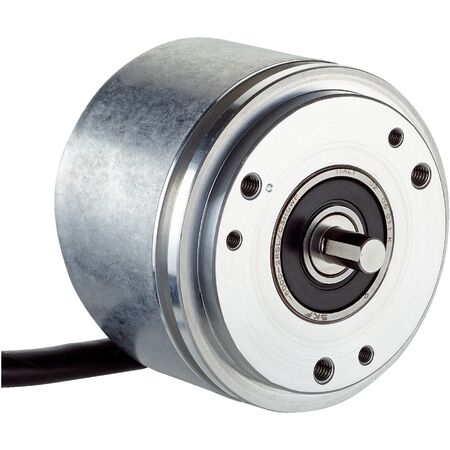

Incremental Rotary Encoder DBS60E-S1FN03600 | 3600 Pulses/Rev | IP67 & IP65 Rated | by SICK
The Incremental Rotary Encoder DBS60E-S1FN03600 delivers high-resolution measurement with 3600 pulses per revolution, making it ideal for industrial automation and motion control applications. Designed for durability, it features an IP67 rated housing and IP65 shaft side, ensuring robust protection in challenging environments. With a wide operating temperature range from -30°C to +85°C, this encoder is perfect for servo motor feedback and robotics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 3600
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 36° per pulse
- Duty cycle: ≤ 0.5 ± 10%
- Communication interface: Incremental TTL / HTL
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: 8-wire cable, 10 m length
- Supply voltage: 4.5 to 30 V
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Flange type: Flange with 3 x M3 and 3 x M4
- Start up torque: 1.2 Ncm at 20°C
- Operating torque: 1.1 Ncm at 20°C
- Permissible shaft loading: 100 N radial, 50 N axial
- Operating speed: 6000 min⁻¹ typical, max 9000 min⁻¹
- Moment of inertia of rotor: 33 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature: -30°C to +85°C
- Storage temperature: -40°C to +100°C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 58mm x 60mm x 58mm
- Weight: 0.3 kg
Key Features
- 3600 pulses per revolution for high resolution measurement
- Solid shaft with servo flange design
- IP67 rated housing side and IP65 shaft side for robust protection
- Operating temperature range from -30°C to +85°C
- Reverse polarity and short-circuit protection
- High maximum operating speed up to 9000 min⁻¹
- Low power consumption ≤ 0.5 W without load
- Cable connection with 8-wire universal 10 m cable
- High mechanical durability with bearing lifetime of 3.6 x 10⁹ revolutions
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and mechanical mounting for optimal performance and safety.
Applications
- Industrial automation and control systems
- Servo motor feedback
- Robotics and motion control
- Conveyor systems
- Machine tool positioning
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK DBS60E-S1FN03600 incremental encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
