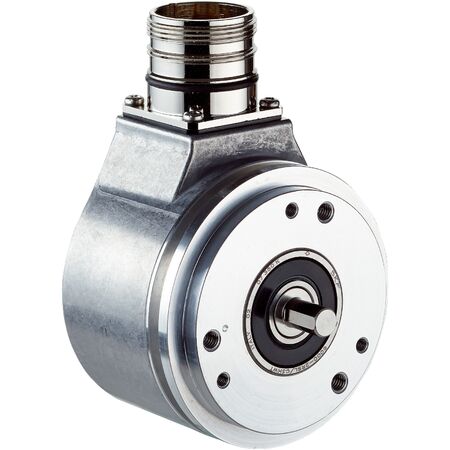

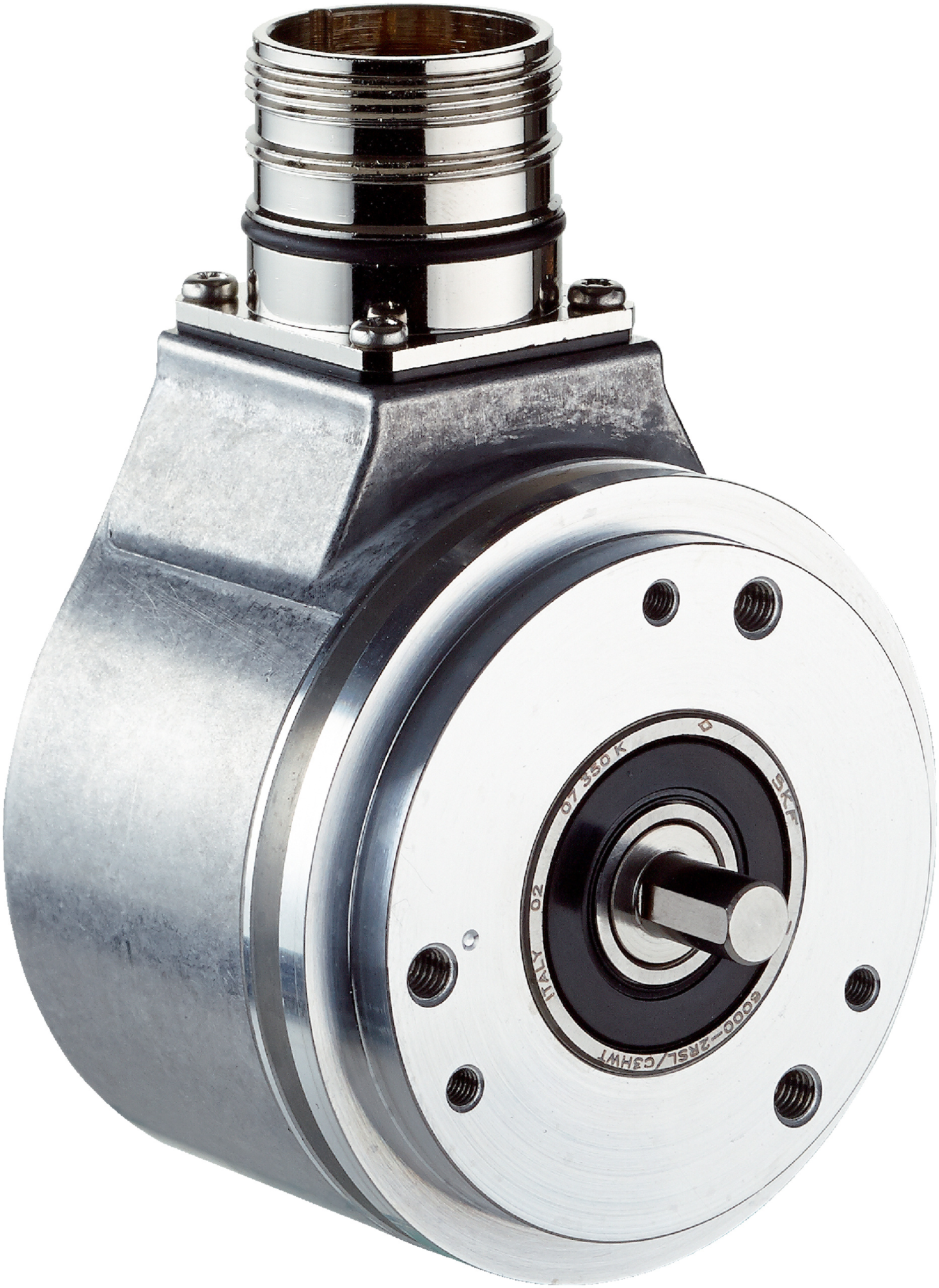

Incremental Rotary Encoder DBS60E-S1CA04096 | 4096 Pulses/Rev | IP67 & IP65 Rated | by SICK
The Incremental Rotary Encoder DBS60E-S1CA04096 offers high resolution with 4,096 pulses per revolution, making it ideal for industrial automation and precise motion control applications. Built with a robust aluminum housing and solid shaft design, it ensures durability and reliability in demanding environments, while its fast initialization time under 5 ms enhances operational efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 4,096
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 36° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 10%
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 10 to 30 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Solid shaft, servo flange
- Shaft diameter: 6 mm with flat
- Shaft length: 10 mm
- Flange type: Flange with 3 x M3 and 3 x M4
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Start up torque: 1.2 Ncm at 20°C
- Operating torque: 1.1 Ncm at 20°C
- Permissible shaft loading: 100 N radial, 50 N axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 33 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -30°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 40mm
- Weight: 0.3 kg
Key Features
- High resolution with 4,096 pulses per revolution
- Solid shaft with 6 mm diameter and 10 mm length
- Robust aluminum housing and flange
- IP67 rated housing side and IP65 shaft side for dust and water protection
- Reverse polarity and short-circuit protection
- Operating temperature range from -30°C to +85°C
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
- Fast initialization time under 5 ms
- Output frequency over 300 kHz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder wiring and mounting to ensure proper operation and safety.
Applications
- Industrial automation and control systems
- Servo motor feedback
- Robotics and motion control
- Position and speed measurement in manufacturing equipment
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of ≤ 0.5 W enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DBS60E-S1CA04096 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
