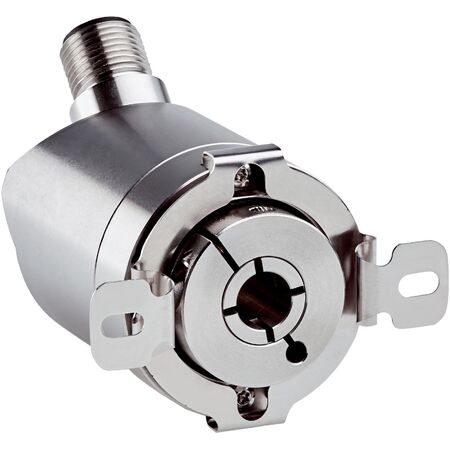

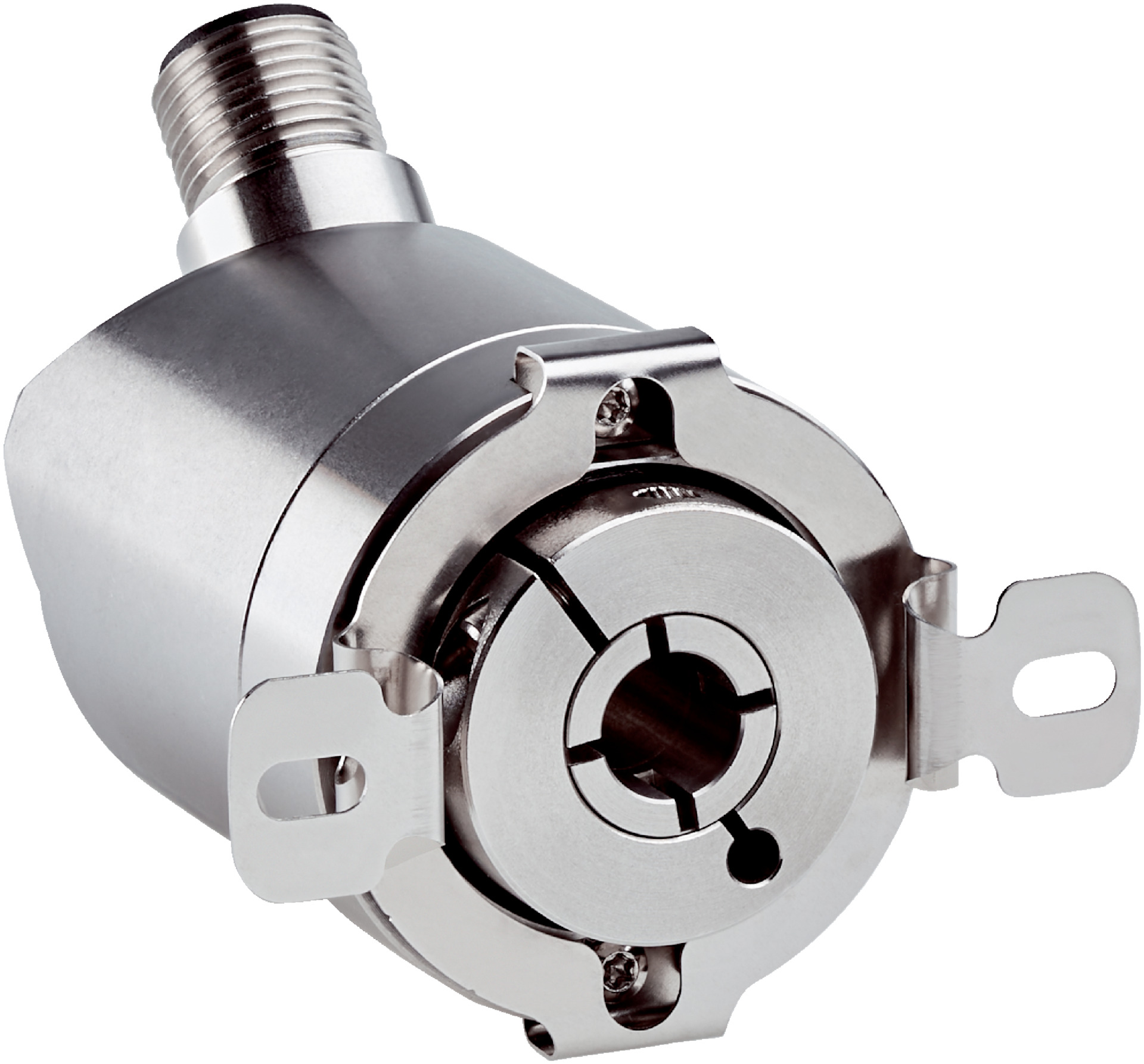

Incremental Rotary Encoder AHS36I-BAAC004096 | 4096 Steps/Rev | IP67 & IP69K Rated | by SICK
The Incremental Rotary Encoder AHS36I-BAAC004096 offers high precision with 4,096 steps per revolution, making it ideal for industrial automation and robotics applications. With a robust stainless steel housing and an impressive operating temperature range of -40 °C to +100 °C, this encoder ensures reliable performance in demanding environments. Its low power consumption and fast initialization time enhance efficiency, making it a perfect choice for machine tools and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 230 years (EN ISO 13849-1)
- Resolution: 4,096 steps per revolution (12 bit)
- Error limits G: 0.35° at 20 °C
- Repeatability standard deviation σr: 0.2° at 20 °C
- Communication interface: SSI
- Initialization time: 100 ms
- Position forming time: 125 µs
- Code type: Gray
- Clock frequency: 2 MHz
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 1.5 W (without load)
- Mechanical design: Blind hollow shaft, 6 mm diameter
- Operating speed: ≤ 6,000 min⁻¹
- Operating temperature range: -40 °C to +100 °C
- Enclosure rating: IP67 and IP69K
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.2 kg
Key Features
- High resolution with 4,096 steps per revolution (12 bit)
- Robust stainless steel housing and shaft material (1.4305)
- IP67 and IP69K rated for protection against dust and water
- Operating temperature range from -40 °C to +100 °C
- Low power consumption ≤ 1.5 W
- Reverse polarity protection included
- High mechanical durability with bearing lifetime of 2.0 x 10^9 revolutions
- Fast initialization time of 100 ms and position forming time of 125 µs
- Configurable code sequence (CW/CCW) via cable
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial encoder mounting and electrical connections to ensure proper operation and safety.
Applications
- Industrial automation for precise position measurement
- Robotics for accurate motion control
- Machine tools requiring high-resolution feedback
- Conveyor systems and packaging machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption contributes to energy efficiency
- High resistance to environmental factors reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AHS36I-BAAC004096 incremental encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
