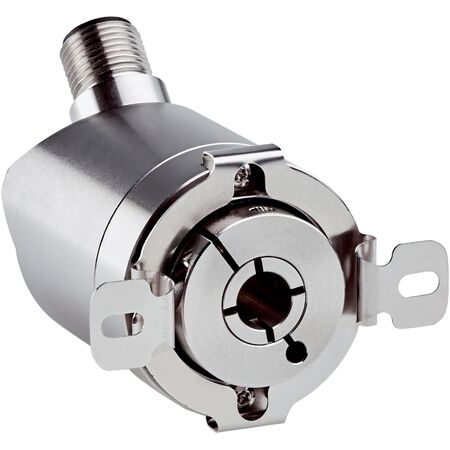

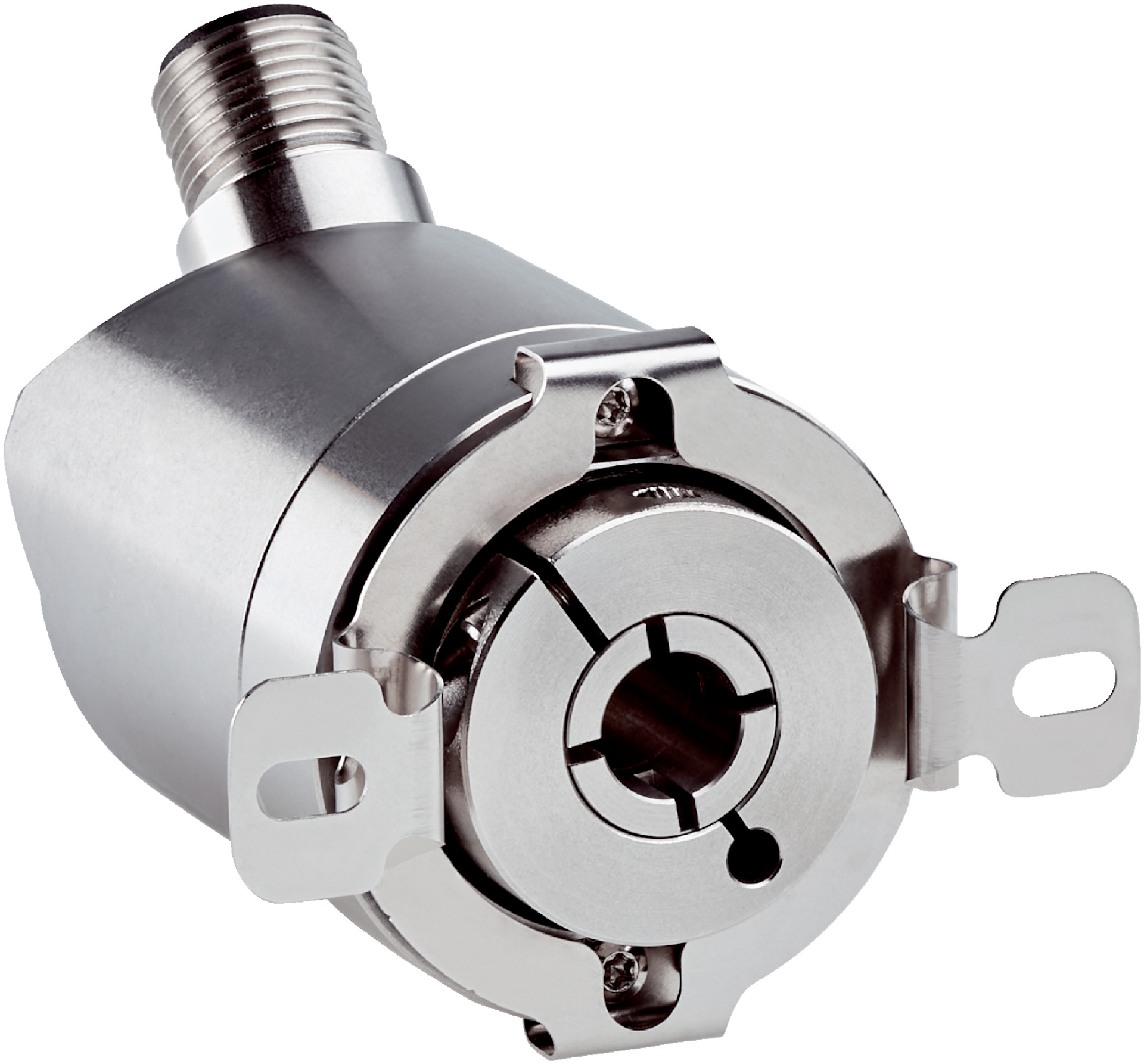

Incremental Rotary Encoder AHS36I-BDAC004096 | 4096 Steps/Rev | IP67 & IP69K Rated | by SICK
The Incremental Rotary Encoder AHS36I-BDAC004096 offers high precision with 4,096 steps per revolution, making it ideal for industrial automation and robotics. Built with a robust stainless steel housing, it ensures durability and reliability in harsh environments, while its IP67 and IP69K ratings provide excellent protection against dust and water. With a wide operating temperature range from -40°C to +100°C, this encoder is perfect for various applications requiring accurate motion control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD (mean time to dangerous failure): 230 years (EN ISO 13849-1)
- Number of steps per revolution: 4,096 (12 bit)
- Error limits G: 0.35° at 20 °C
- Repeatability standard deviation σr: 0.2° at 20 °C
- Communication interface: SSI
- Initialization time: 100 ms
- Position forming time: 125 µs
- Code type: Gray
- Code sequence parameter adjustable: CW/CCW configurable via cable
- Clock frequency: 2 MHz
- Set (electronic adjustment): H-active (L = 0 - 3 V, H = 4.0 - U s V)
- CW/CCW counting sequence: L-active (L = 0 - 1 V, H = 2.0 - Us V)
- Connection type: Male connector, M12, 8-pin, universal
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 1.5 W (without load)
- Reverse polarity protection: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 10 mm
- Shaft material: Stainless steel 1.4305
- Flange material: Stainless steel 1.4305
- Housing material: Stainless steel 1.4305
- Start up torque: 1 Ncm (+20 °C)
- Operating torque: < 1 Ncm (+20 °C)
- Permissible static movement: ± 0.3 mm radial and axial
- Permissible dynamic movement: ± 0.1 mm radial and axial
- Operating speed: ≤ 6,000 min⁻¹
- Moment of inertia of rotor: 23 gcm²
- Bearing lifetime: 2.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 and IP69K (IEC 60529)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -40 °C to +100 °C
- Storage temperature range: -40 °C to +100 °C without package
- Resistance to shocks: 100 g, 6 ms (EN 60068-2-27)
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.2 kg
Key Features
- High resolution with 4,096 steps per revolution (12 bit)
- Robust stainless steel housing and shaft for durability
- Blind hollow shaft with front clamp for secure mounting
- SSI communication interface with Gray code output
- Wide operating temperature range from -40°C to +100°C
- IP67 and IP69K rated for protection against dust and water
- Low power consumption ≤ 1.5 W
- Reverse polarity protection included
- High mechanical reliability with bearing lifetime of 2.0 x 10^9 revolutions
- Fast initialization time of 100 ms and position forming time of 125 µs
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial encoder wiring and configuration to ensure proper operation and safety.
Applications
- Industrial automation for precise position measurement
- Robotics for accurate motion control
- Machine tools requiring high resolution feedback
- Conveyor systems and packaging machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AHS36I-BDAC004096 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
