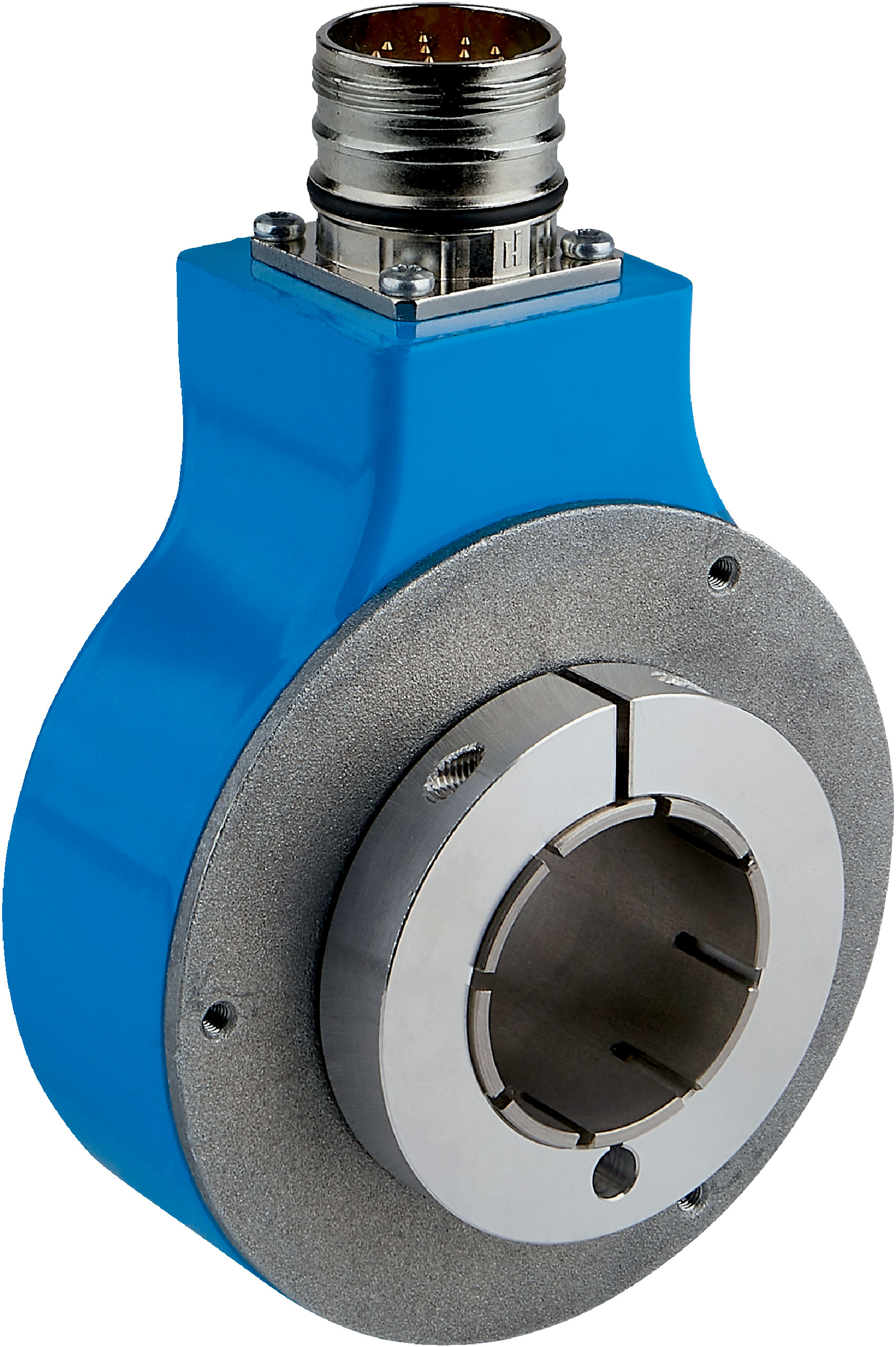

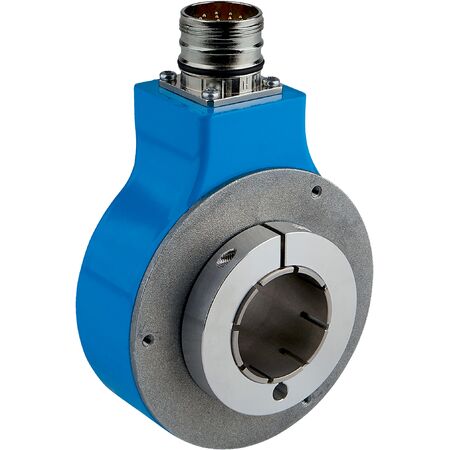

Incremental Rotary Encoder DGS80B-TSLA05000 | 5000 Pulses/Rev | IP65 Rated | Robust Hollow Shaft Design | by SICK
The DGS80B-TSLA05000 incremental rotary encoder delivers high-resolution feedback with 5000 pulses per revolution, making it ideal for industrial automation and robotics. Its robust through hollow shaft design and IP65 enclosure ensure reliable operation in harsh environments, while features like short-circuit protection and low power consumption enhance durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 5,000
- Measuring step: 90°, electric/pulses per revolution
- Measuring step deviation: ± 15° electrical
- Duty cycle: ≤ 0.5 ± 15 %
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6-channel
- Initialization time: < 50 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 40 mA per channel
- Operating current: ≤ 50 mA (without load)
- Power consumption: ≤ 0.85 W
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 5 ... 30 V
- Reference signal position: 90°, electric, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection of the outputs: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 30 mm
- Flange type: 1-sided stator coupling with slot (accessory)
- Shaft material: Aluminum
- Flange and housing material: ZAMAC die cast
- Shaft sealing ring material: FKM70
- Start up torque: 6 Ncm (+20 °C)
- Operating torque: 5 Ncm (+20 °C)
- Permissible shaft loading: 100 N radial and axial
- Operating speed: ≤ 3,600 min⁻¹
- Moment of inertia of the rotor: 408 gcm²
- Bearing lifetime: 10^9 revolutions
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (IEC 60529)
- Permissible relative humidity: 98% (no condensation)
- Operating temperature range: –25 °C to +85 °C
- Storage temperature range: –25 °C to +85 °C (without package)
- Resistance to shocks: 250 g, 6 ms (EN 60068-2-27)
- Resistance to vibration: 10 g, 5 Hz to 2,000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 80mm x 80mm x 80mm
- Weight: 0.65 kg
Key Features
- High resolution with 5,000 pulses per revolution
- Robust through hollow shaft mechanical design with 30 mm shaft diameter
- IP65 rated enclosure for protection against dust and water
- Short-circuit and reverse polarity protection for reliable operation
- Low power consumption of ≤ 0.85 W
- Operating temperature range from –25 °C to +85 °C
- High mechanical durability with bearing lifetime of 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and conveyor systems requiring high-resolution feedback
- Safety-related machinery monitoring and control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage in industrial systems
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DGS80B-TSLA05000 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-related applications.
