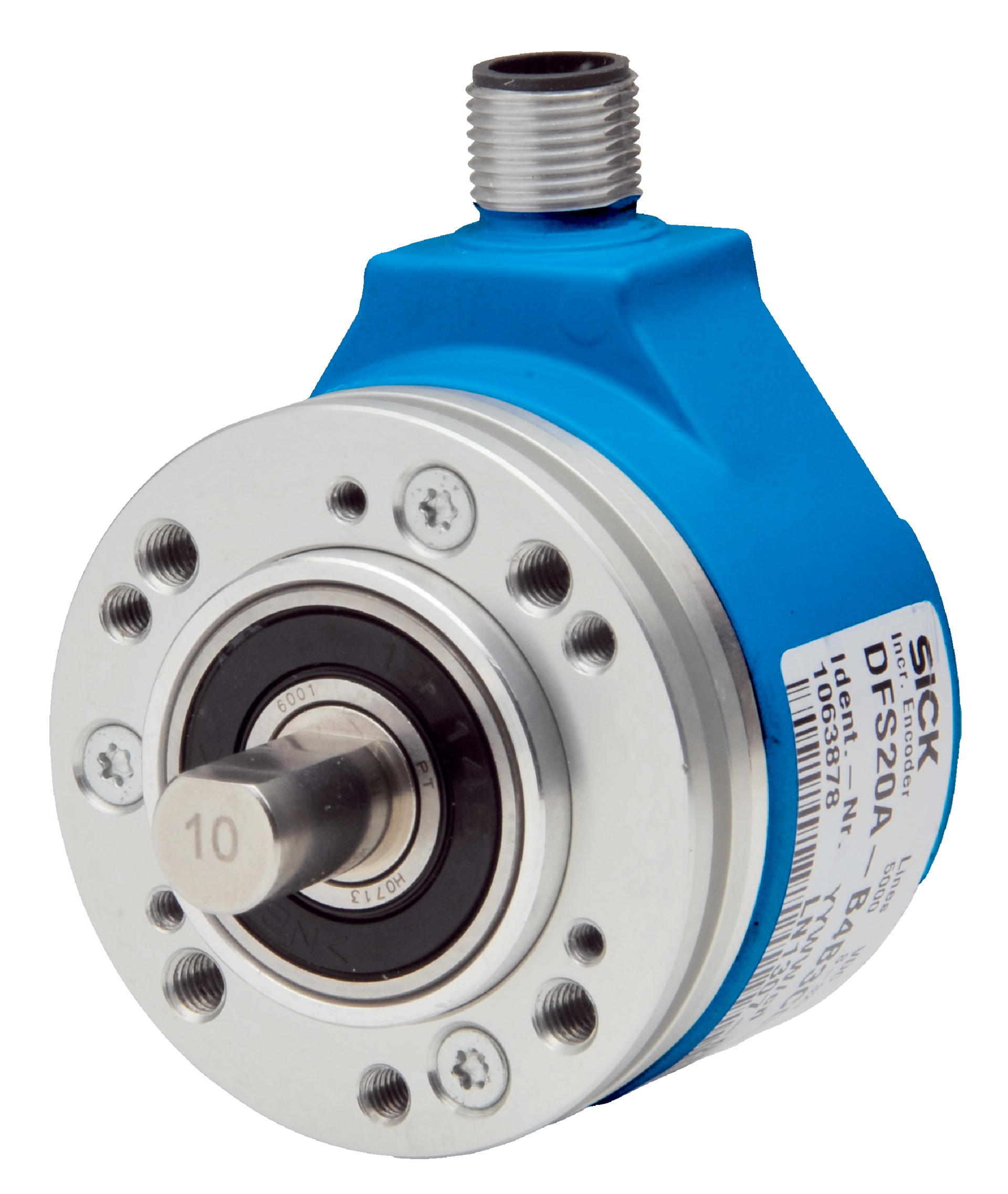

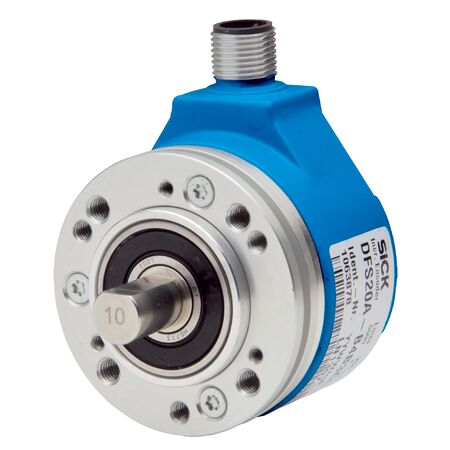

Incremental Rotary Encoder | 5000 Pulses/Rev | IP65/IP67 Rated | High Speed Up to 9000 min⁻¹ | by SICK
The Incremental Rotary Encoder DFS20A-B4A1C005000 delivers high precision with 5000 pulses per revolution, making it ideal for industrial automation and motion control applications. Designed for robust performance, it features an IP65/IP67 rating for dust and water protection, ensuring reliability in harsh environments. With a high operating speed of up to 9000 min⁻¹ and a long bearing lifetime, this encoder is perfect for servo motor feedback and machine tool positioning.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 330 years (EN ISO 13849-1)
- Pulses per revolution: 5,000
- Measuring step deviation: ±0.008°
- Error limits: ±0.03°
- Communication interface: Incremental TTL / RS-422, 6-channel
- Initialization time: 40 ms
- Output frequency: 820 kHz
- Load current: 30 mA
- Operating current: 50 mA (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 4.5 to 5.5 V
- Shaft diameter: 10 mm with flat
- Shaft length: 16 mm
- Shaft material: Stainless steel 1.4305
- Flange and housing material: Aluminum
- Start-up torque: 0.5 Ncm at +20°C
- Operating torque: 0.3 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: up to 9,000 min⁻¹
- Moment of inertia of rotor: 15 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: -30°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 100 g, 11 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.4 kg
Key Features
- High resolution with 5,000 pulses per revolution
- Solid shaft with servo flange mechanical design
- Robust aluminum housing and flange
- IP65 rated on shaft side and IP67 on housing side for dust and water protection
- Operating temperature range from -30°C to +85°C
- Reverse polarity and short-circuit protection
- Low start-up torque of 0.5 Ncm
- High operating speed up to 9,000 min⁻¹
- Long bearing lifetime of 3.6 x 10⁹ revolutions
- 6-channel incremental TTL/RS-422 communication interface
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Servo motor feedback
- Robotics and motion control
- Machine tool positioning
- Conveyor systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation supports sustainable industrial automation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS20A-B4A1C005000 incremental encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
