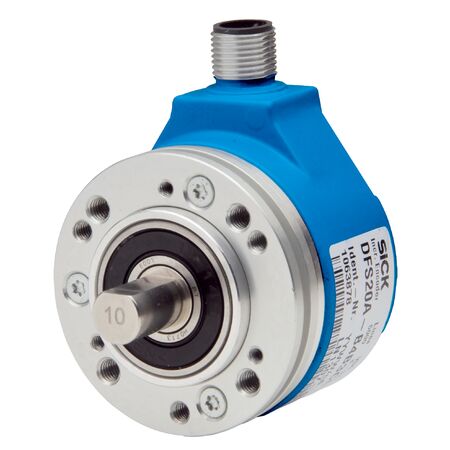

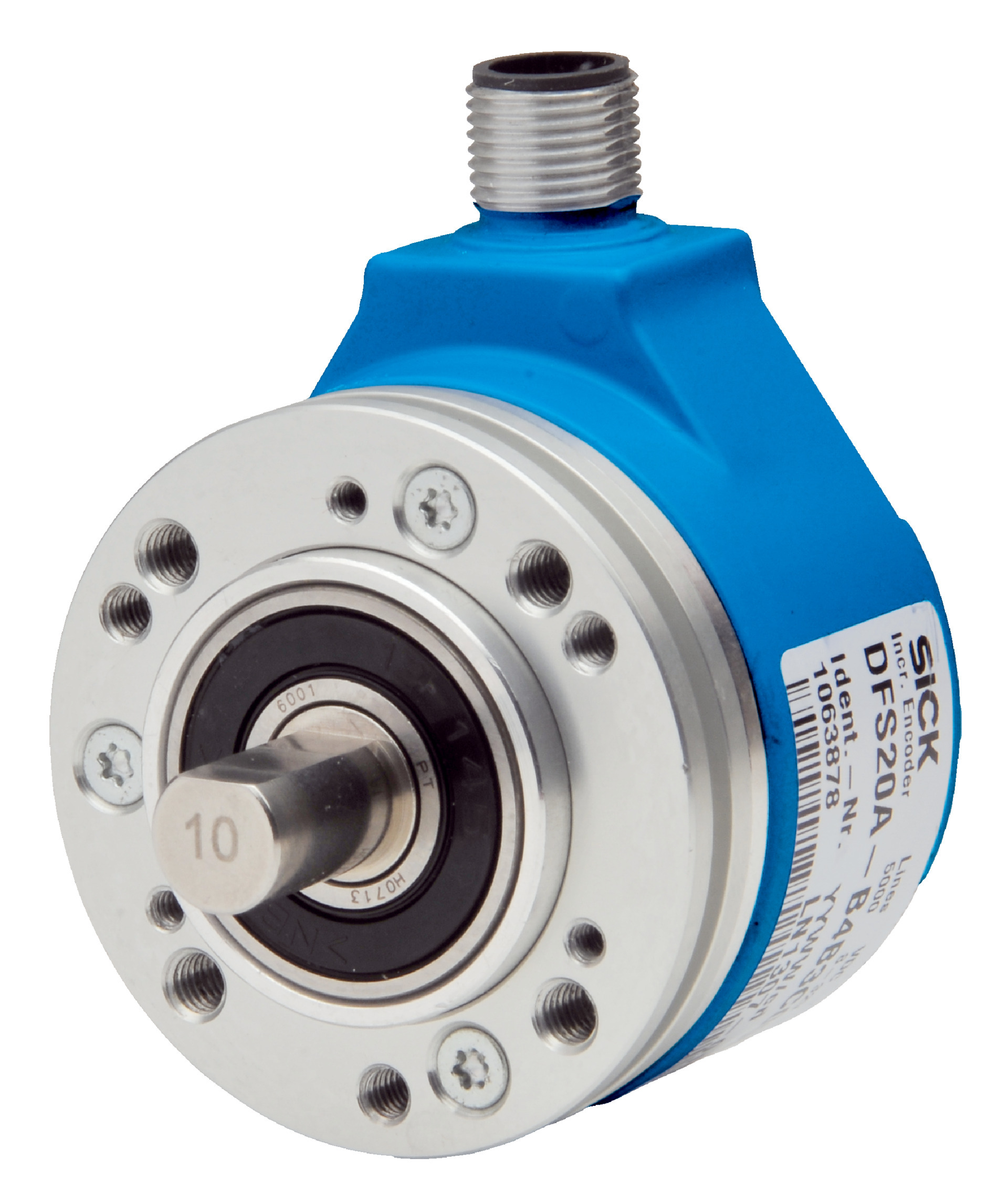

Incremental Rotary Encoder DFS20A-B4B1C005000 | 5000 Pulses/Rev | IP65/IP67 Rated | by SICK
The Incremental Rotary Encoder DFS20A-B4B1C005000 offers high resolution with 5,000 pulses per revolution, making it ideal for industrial automation and precise motion control applications. Built with a robust mechanical design featuring a stainless steel shaft and aluminum housing, it ensures durability and reliability in demanding environments. With an operating temperature range of -30°C to +85°C and IP65/IP67 ratings for dust and water protection, this encoder is perfect for servo motor feedback and robotics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 5,000
- Measuring step deviation: ±0.008°
- Error limits: ±0.03°
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: 820 kHz
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 8 to 30 V
- Mechanical design: Solid shaft, Servo flange
- Shaft diameter: 10 mm with flat
- Shaft length: 16 mm
- Shaft material: Stainless steel 1.4305
- Flange material: Aluminum
- Housing material: Aluminum
- Start up torque: 0.5 Ncm at +20°C
- Operating torque: 0.3 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: up to 9,000 min⁻¹
- Moment of inertia of rotor: 15 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: up to 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: -30°C to +85°C
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 100 g, 11 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.4 kg
Key Features
- High resolution with 5,000 pulses per revolution
- Robust mechanical design with solid shaft and servo flange
- Stainless steel shaft and aluminum housing for durability
- IP65 rated on shaft side and IP67 on housing side for protection against dust and water
- Operating temperature range from -30°C to +85°C
- Reverse polarity and short-circuit protection
- High operating speed up to 9,000 min⁻¹
- Low operating torque of 0.3 Ncm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Servo motor feedback
- Robotics and motion control
- Position and speed measurement in manufacturing equipment
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable materials and robust design reduce replacement frequency and waste
- Low power consumption of 0.7 W improves energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS20A-B4B1C005000 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
