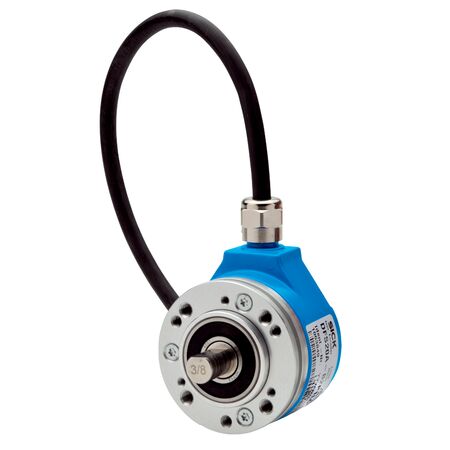

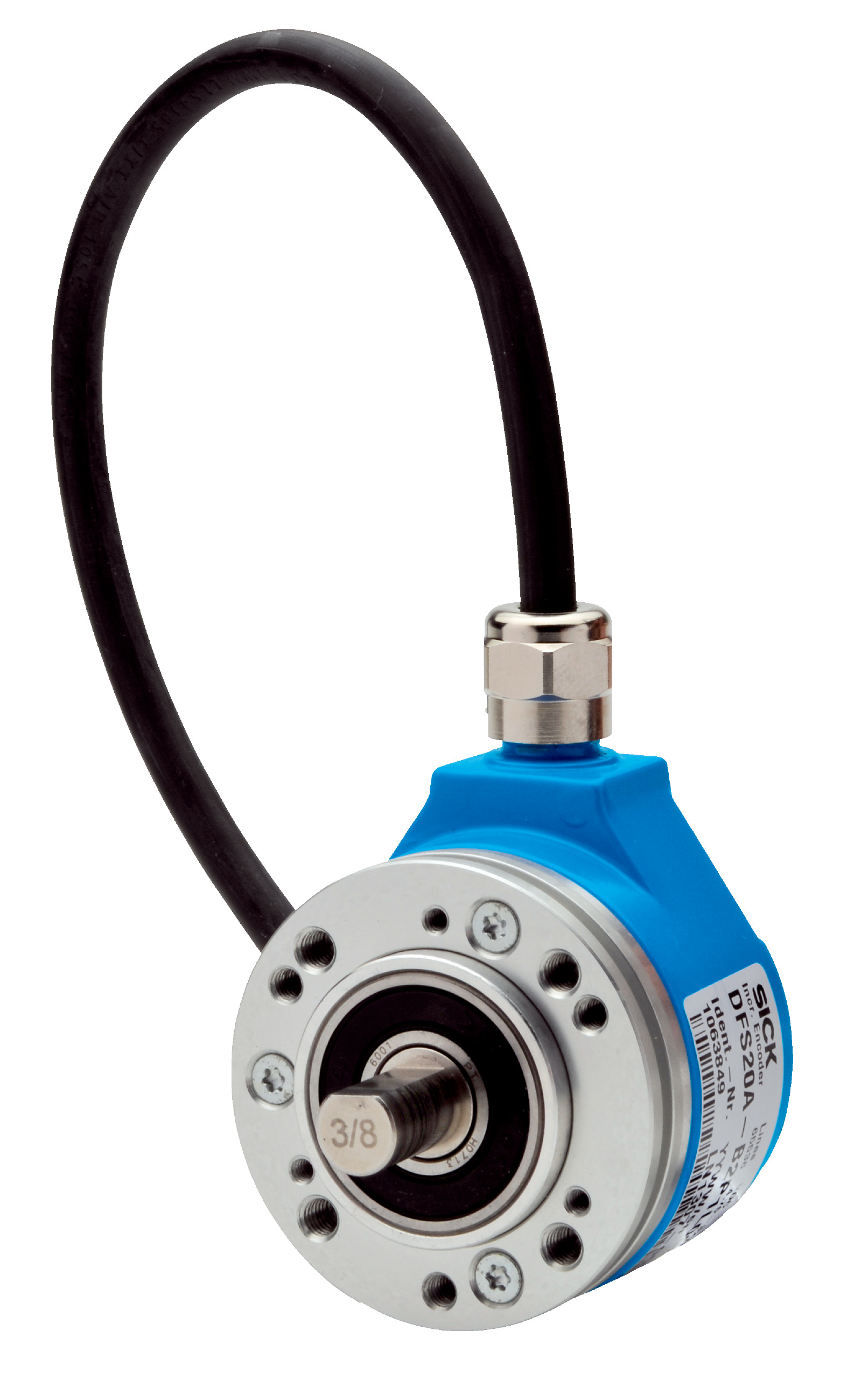

Incremental Rotary Encoder | 5000 Pulses/Rev | IP65/IP67 Rated | Servo Flange Design | by SICK
The Incremental Rotary Encoder DFS20A-B3D1N005000 offers high resolution with 5000 pulses per revolution, making it ideal for industrial automation and precise motion control applications. With a robust aluminum housing and IP65/IP67 ratings for dust and water protection, this encoder ensures reliable performance in challenging environments. Designed for servo motor feedback and robotics, it features a low start-up torque and high mechanical durability, perfect for demanding industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 5,000
- Measuring step deviation: ±0.008°
- Error limits: ±0.03°
- Communication interface: Incremental, 6-channel, open collector
- Output frequency: 150 kHz
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Supply voltage: 8 to 30 V
- Connection type: 9-wire cable, 5 m length
- Shaft diameter: 6 mm with flat
- Shaft length: 16 mm
- Operating speed: up to 9,000 min⁻¹
- Start-up torque: 0.5 Ncm
- Operating torque: 0.3 Ncm
- Permissible shaft loading: 80 N radial, 40 N axial
- Bearing lifetime: 3.6 x 10^9 revolutions
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: -30°C to +85°C
- Resistance to shocks: 100 g, 11 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 90mm x 58mm
- Weight: 0.4 kg
Key Features
- High resolution with 5,000 pulses per revolution
- Solid shaft with servo flange design
- Robust aluminum housing and flange
- IP65 rated on shaft side and IP67 on housing side for dust and water protection
- Reverse polarity and short-circuit protection
- Operating temperature range from -30°C to +85°C
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
- Low start-up torque of 0.5 Ncm and operating torque of 0.3 Ncm
- 6-channel incremental communication interface with open collector output
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Servo motor feedback
- Robotics and motion control
- Position and speed measurement in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of 0.7 W enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS20A-B3D1N005000 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
