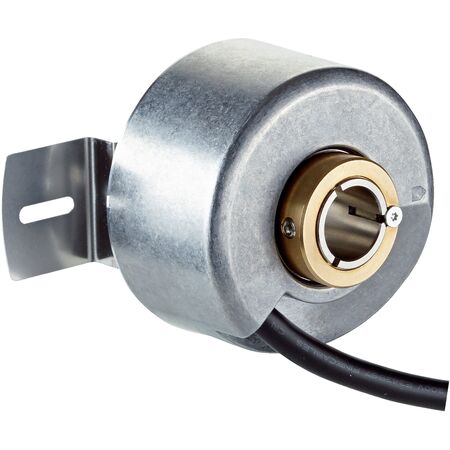

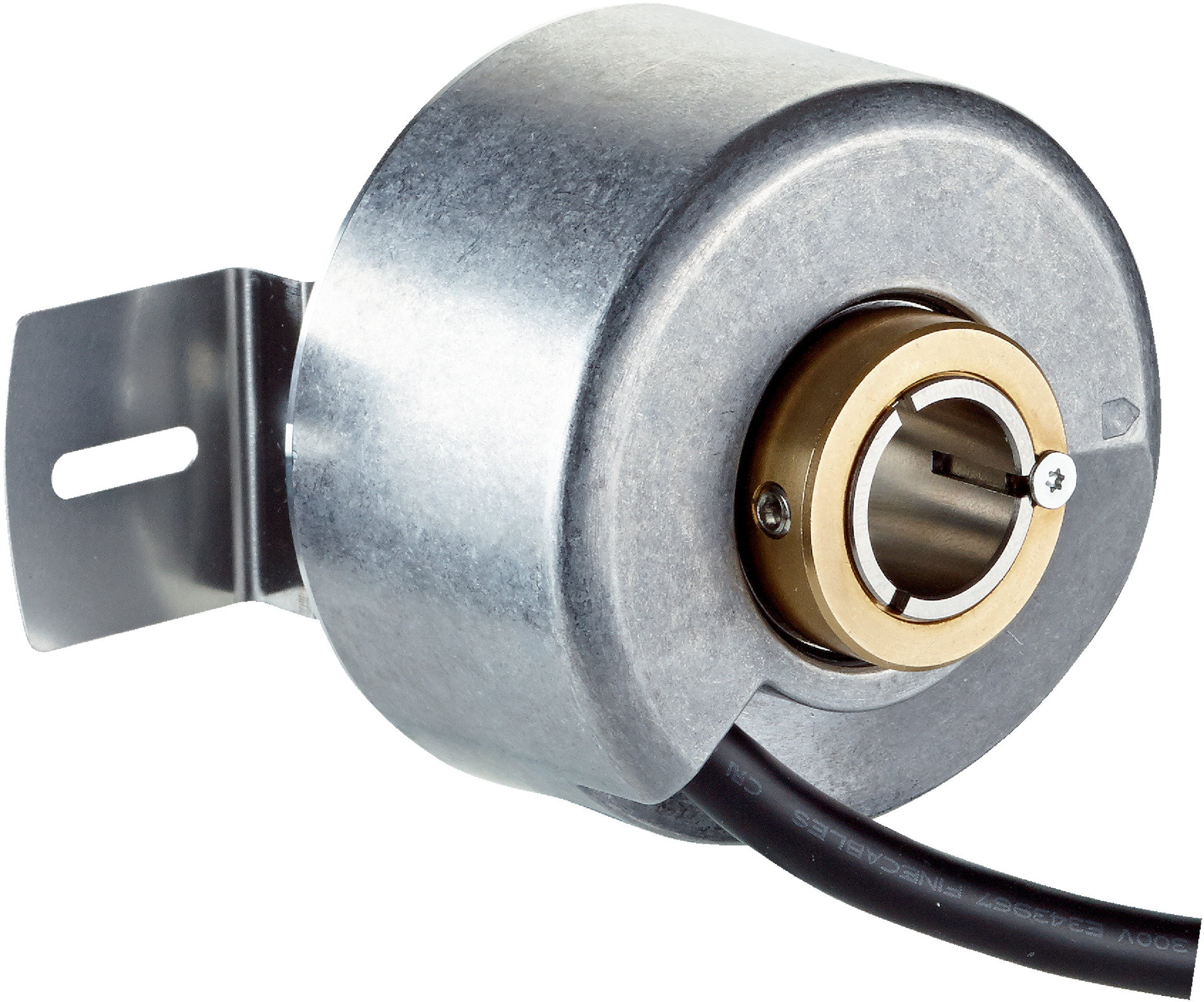

Incremental Rotary Encoder DBS60E-RJFK05000 | 5000 Pulses/Rev | IP65 Rated | Stainless Steel Shaft | by SICK
The Incremental Rotary Encoder DBS60E-RJFK05000 offers 5000 pulses per revolution and an IP65 rating, making it perfect for industrial automation and control systems. With a robust stainless steel shaft and a wide operating temperature range of -30°C to +85°C, this encoder ensures high reliability and performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 5,000
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 36° per pulses per revolution
- Duty cycle: ≤ 0.5 ± 10%
- Communication interface: Incremental TTL/HTL
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: 8-wire cable, 1.5 m length
- Supply voltage: 4.5 to 30 V
- Reference signal: 1, positioned at 90° electric
- Mechanical design: Through hollow shaft with 5/8” rear clamping
- Flange type: 2-sided stator coupling with slot and screw hole circle 63–83 mm
- Shaft material: Stainless steel
- Housing material: Aluminum
- Start up torque: > 0.5 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (housing and shaft side)
- Operating temperature range: -30°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 63mm x 83mm x 63mm
- Weight: 0.25 kg
Key Features
- High reliability with MTTFD of 500 years according to EN ISO 13849-1
- Incremental communication interface with TTL/HTL signals
- 6-channel output with up to 300 kHz frequency
- Robust mechanical design with through hollow shaft and stainless steel shaft
- IP65 rated housing and shaft side for protection against dust and water
- Wide operating temperature range from -30°C to +85°C
- Reverse polarity and short-circuit protection
- Low power consumption of ≤ 0.5 W without load
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor and material handling systems
- Machine tool feedback and positioning
- Safety-related monitoring in machinery
