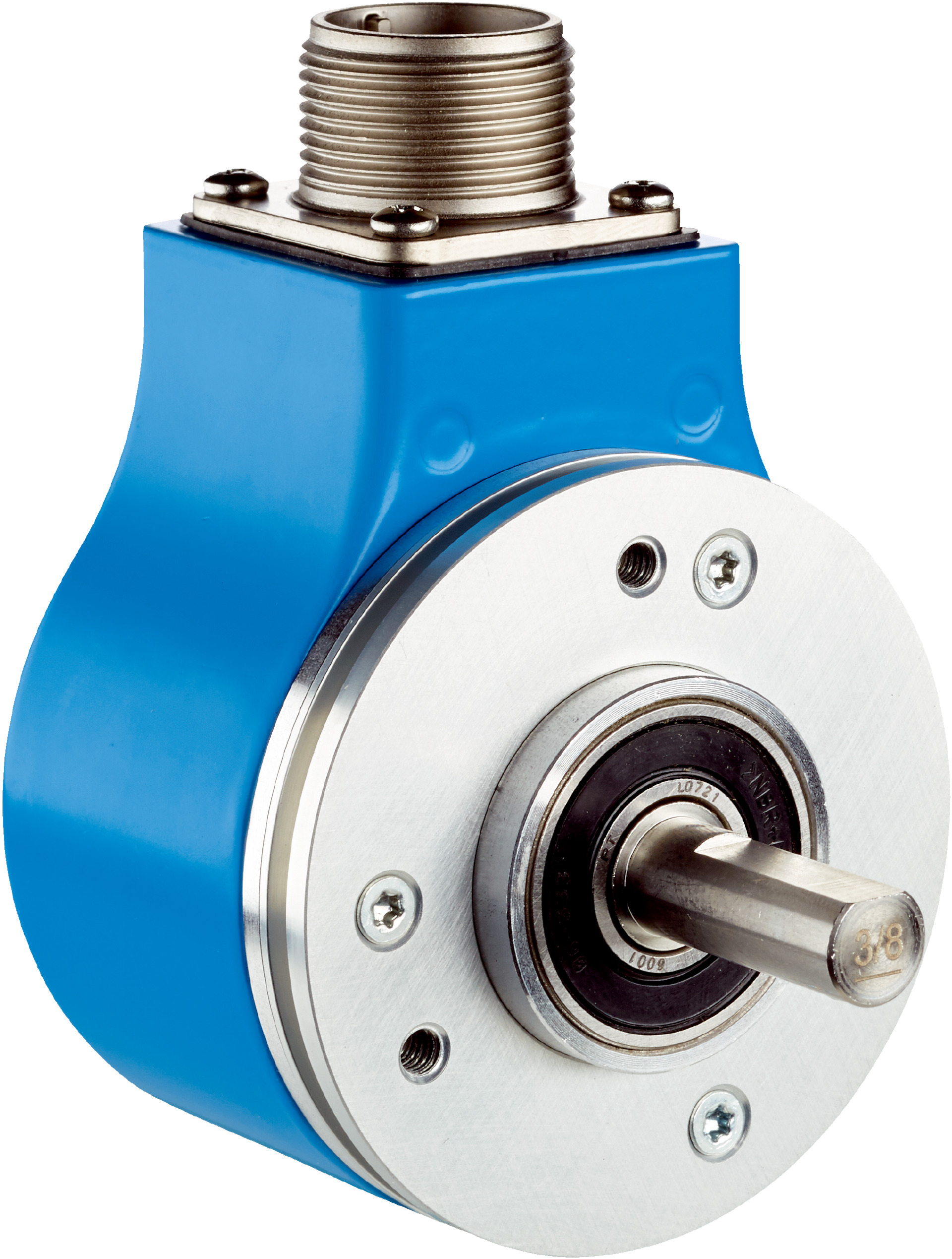

Incremental Rotary Encoder DFS25A-B4BDD000512 | 512 Pulses/Rev | IP65/IP67 Rated | by SICK
The Incremental Rotary Encoder DFS25A-B4BDD000512 offers 512 pulses per revolution for precise measurement, making it ideal for industrial automation and control systems. With a robust aluminum housing, IP65/IP67 rating for dust and water protection, and a wide operating temperature range of -30°C to +85°C, this encoder ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Mean time to dangerous failure (MTTFD): 330 years (EN ISO 13849-1)
- Pulses per revolution: 512
- Measuring step deviation: ±0.008° pulses 100 to 10,000
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- 0-set function via hardware pin, H-active
- Initialization time: 40 ms
- Output frequency: 820 kHz
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Connection type: Male connector, MS, 10-pin, radial
- Supply voltage: 8 to 30 V
- Reference signal position: 90°, logically gated with A and B
- Code sequence: Counterclockwise
- Reverse polarity and short-circuit protection included
- Mechanical design: Solid shaft, servo flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Shaft material: Stainless steel 1.4305
- Flange and housing material: Aluminum
- Start up torque: 0.5 Ncm at +20°C
- Operating torque: 0.3 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: up to 9,000 min⁻¹
- Moment of inertia of rotor: 15 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: up to 500,000 rad/s²
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -30°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 100 g, 11 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 90mm x 58mm
- Weight: 0.4 kg
Key Features
- 512 pulses per revolution for precise measurement
- High accuracy with ±0.03° error limits
- Solid shaft with 10 mm diameter and flat
- Robust aluminum housing and flange
- IP65 rated on shaft side and IP67 on housing side for dust and water protection
- Operating temperature range from -30°C to +85°C
- Reverse polarity and short-circuit protection
- 6-channel incremental HTL / Push pull communication interface
- Low power consumption of 0.7 W without load
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Position and speed measurement in manufacturing
- Machine tool and conveyor systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS25A-B4BDD000512 incremental encoder is available for immediate purchase, ideal for industrial automation and precise position feedback applications.
