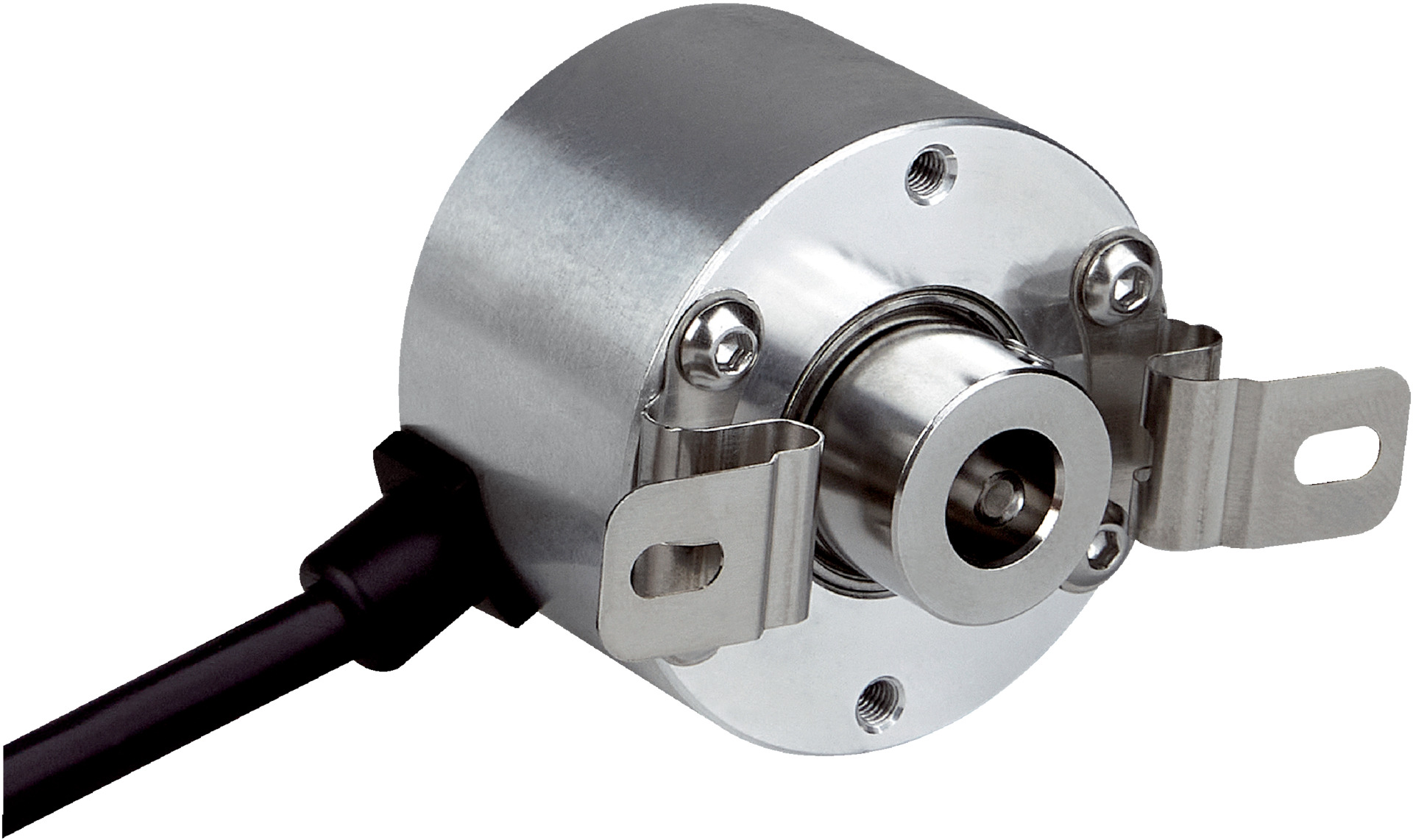

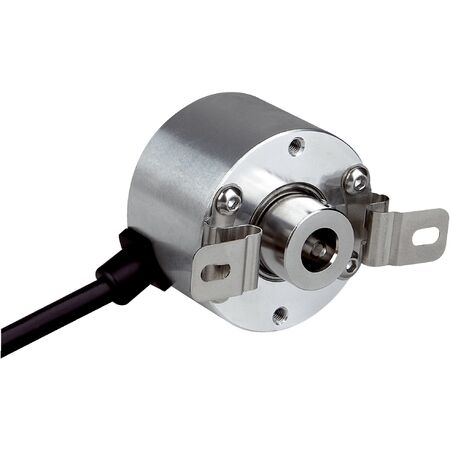

Incremental Rotary Encoder DLS40E-BBEV00600 | 600 Pulses/Rev | 6-Channel Output | Robust Aluminum Housing | by SICK
The DLS40E-BBEV00600 incremental rotary encoder delivers precise measurement with 600 pulses per revolution and a robust aluminum housing. Ideal for industrial automation and control systems, it features a high operating speed of up to 8,000 min⁻¹ and reverse polarity protection, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Mean time to dangerous failure (MTTFD): 600 years (EN ISO 13849-1)
- Pulses per revolution: 600
- Measuring step: 90°, electric/pulses per revolution
- Duty cycle: ≤ 0.5 ± 10 %
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Output frequency: ≤ 150 kHz
- Load current: ≤ 30 mA
- Power consumption: ≤ 2 W (without load)
- Connection type: Cable, 8-wire, radial, 2 m
- Supply voltage: 10 ... 27 V
- Reference signal: 1
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 8 mm front clamp
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum
- Cable material: PVC
- Start up torque: 0.5 Ncm
- Operating torque: 0.3 Ncm
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: ≤ 8,000 min⁻¹
- Moment of inertia of rotor: 24.6 gcm²
- Bearing lifetime: 2.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -10 °C to +70 °C
- Storage temperature range: -25 °C to +85 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.17 kg
Key Features
- 600 pulses per revolution for precise measurement
- Incremental communication interface with HTL / Push pull signals
- 6-channel output with up to 150 kHz frequency
- Robust aluminum housing and flange with stainless steel shaft
- Cable connection with 8-wire radial 2 m cable
- Reverse polarity and short-circuit protection
- High operating speed up to 8,000 min⁻¹
- Long bearing lifetime of 2.0 x 10^9 revolutions
- Operating temperature range from -10 °C to +70 °C
- Resistance to shocks (100 g) and vibration (20 g)
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Rotational speed and position measurement
- Machine tool feedback
- Robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 2 W improves energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DLS40E-BBEV00600 incremental encoder is available for immediate purchase, ideal for industrial automation and precise rotational measurement applications.
