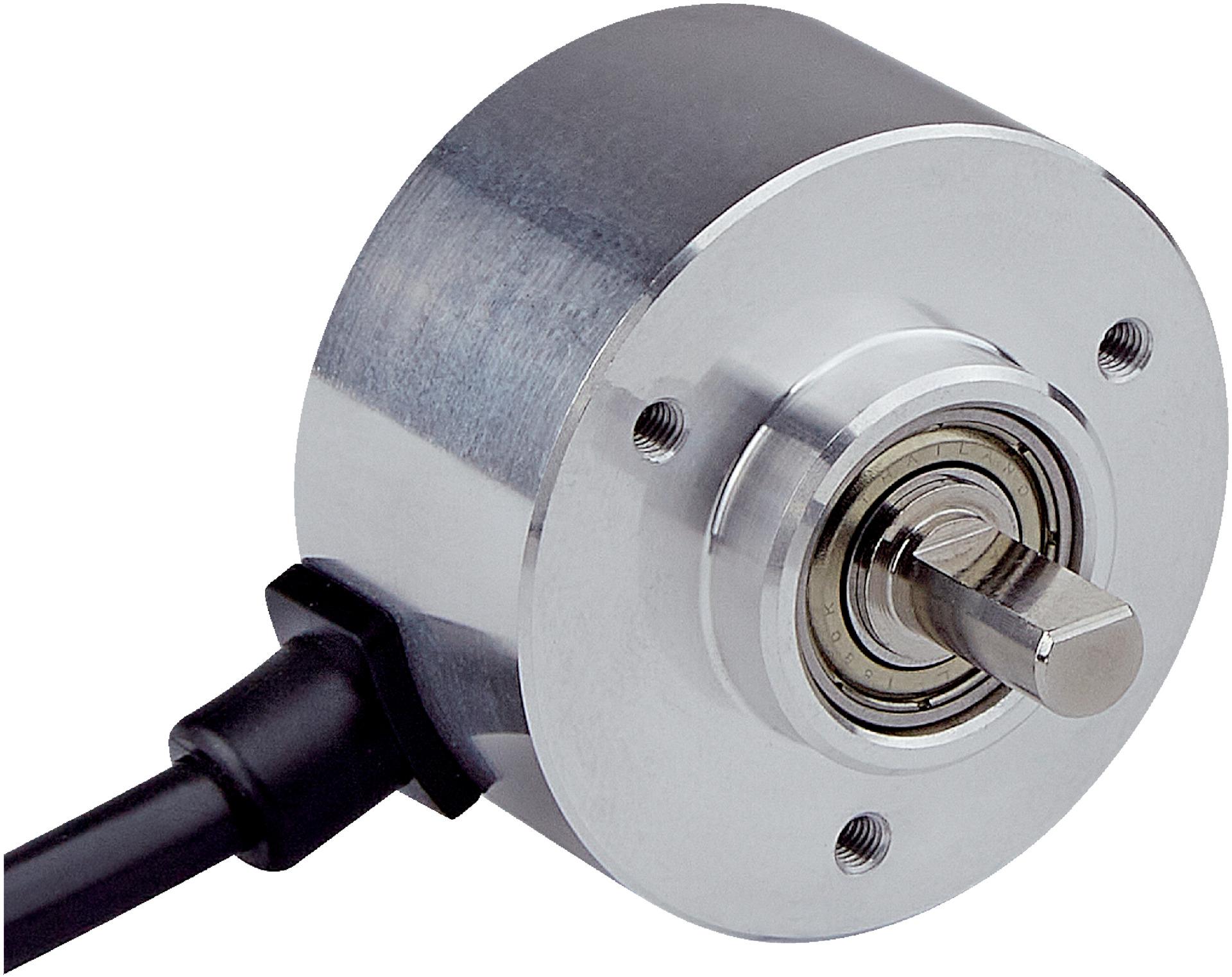

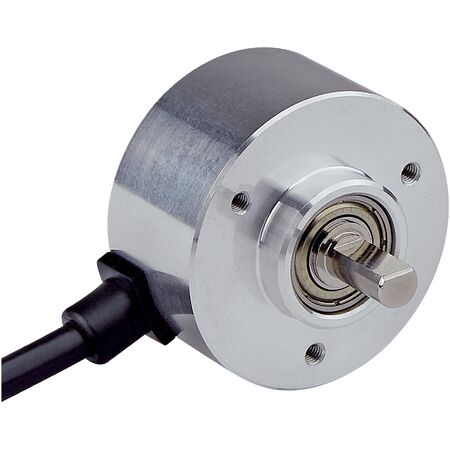

Incremental Rotary Encoder DLS40E-S3RZ00S36 | 600 Pulses/Rev | IP50 Rated | by SICK
The DLS40E-S3RZ00S36 incremental rotary encoder is designed for precise rotational position measurement in industrial automation. With a robust aluminum housing, 600 pulses per revolution, and an IP50 enclosure rating, it’s perfect for machine tool feedback systems and robotics. This encoder operates efficiently with low power consumption and features reverse polarity protection, making it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 to 27 V
- Output frequency: up to 150 kHz
- Load current: ≤ 30 mA
- Duty cycle: ≤ 0.5 ± 10%
- Start up torque: 0.3 Ncm
- Operating torque: 0.2 Ncm
- Permissible shaft loading: 40 N radial, 20 N axial
- Moment of inertia of rotor: 7.6 gcm²
- Bearing lifetime: 2.0 x 10^9 revolutions
- Operating temperature range: -10 °C to +70 °C
- Storage temperature range: -25 °C to +85 °C
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 40mm x 60mm x 40mm
- Weight: 0.13 kg
Key Features
- Incremental communication interface with open collector output
- 600 pulses per revolution with 90° measuring step
- Special 5-wire radial cable, 3 meters length
- Solid shaft with 6 mm diameter and 12 mm length
- Reverse polarity and short-circuit protection
- Operating speed up to 8,000 min⁻¹
- Robust aluminum housing and flange with stainless steel shaft
- IP50 enclosure rating suitable for industrial environments
- High resistance to shock (100 g) and vibration (20 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and industrial sensor systems to ensure proper connection and safety compliance.
Applications
- Industrial automation for precise rotational position measurement
- Machine tool feedback systems
- Robotics and motion control
- Conveyor and material handling systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption of ≤ 2 W reduces energy usage
- Durable materials and long bearing lifetime minimize waste and replacement frequency
Warranty Information
Warranty details available upon request from manufacturer; typically includes coverage against manufacturing defects.
Available Now
The SICK DLS40E-S3RZ00S36 incremental encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
