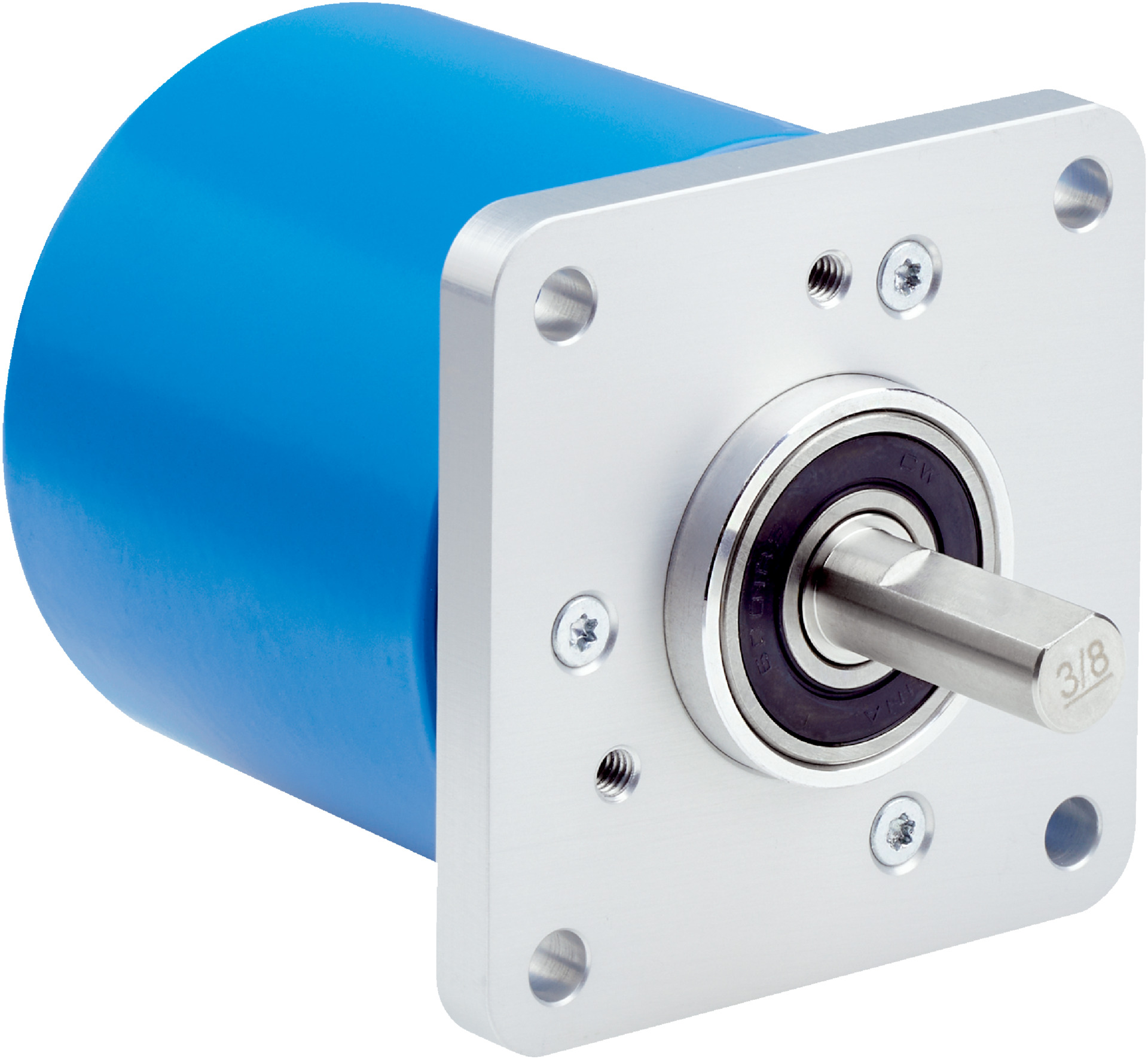

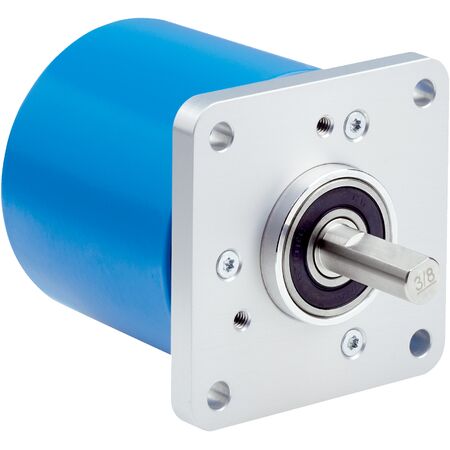

Incremental Rotary Encoder | 600 Pulses/Rev | IP65/IP67 Rated | Solid Shaft Design | by SICK
The Incremental Rotary Encoder is engineered for precision in industrial automation, featuring a high resolution of 600 pulses per revolution and a robust solid shaft design. With an IP65 rating on the shaft side and IP67 on the housing side, it ensures reliable performance in harsh environments. Ideal for robotics, conveyor systems, and machine tool feedback, this encoder is built to withstand extreme temperatures from -30°C to +85°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Mean time to dangerous failure (MTTFD): 330 years (EN ISO 13849-1)
- Pulses per revolution: 600
- Measuring step: ±90°, electric/pulses per revolution
- Measuring step deviation: ±0.04° pulses 1...99
- Error limits: ±0.03°
- Communication interface: Incremental, HTL / Push pull
- Number of signal channels: 6
- 0-set function: H-active, L = 0-3 V, H = 4.0 - Us V
- Initialization time: 40 ms
- Output frequency: 820 kHz
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Connection type: Male connector, MS, 7-pin, axial
- Supply voltage: 8...30 V
- Reference signal: 1, 90° electric, logically gated with A and B
- Code sequence: Clockwise
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Mechanical design: Solid shaft, square flange
- Shaft diameter: 3/8" with flat
- Shaft length: 19 mm
- Shaft material: Stainless steel 1.4305
- Flange material: Aluminum
- Housing material: Aluminum
- Start up torque: 0.5 Ncm (+20 °C)
- Operating torque: 0.3 Ncm (+20 °C)
- Permissible shaft loading: 80 N (radial), 40 N (axial)
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 15 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -30 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Resistance to shocks: 100 g, 11 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 40mm x 70mm x 40mm
- Weight: 0.4 kg
Key Features
- Incremental communication interface with HTL / Push pull
- 6-channel signal output with 0-set function via hardware pin
- High resolution with 600 pulses per revolution
- Robust mechanical design with solid shaft and square flange
- IP65 rated on shaft side and IP67 on housing side for protection
- Wide operating temperature range from -30°C to +85°C
- Reverse polarity and short-circuit protection
- Low power consumption of 0.7 W without load
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor and material handling systems
- Machine tool feedback and positioning
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DFS25A-A2B23000600 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
