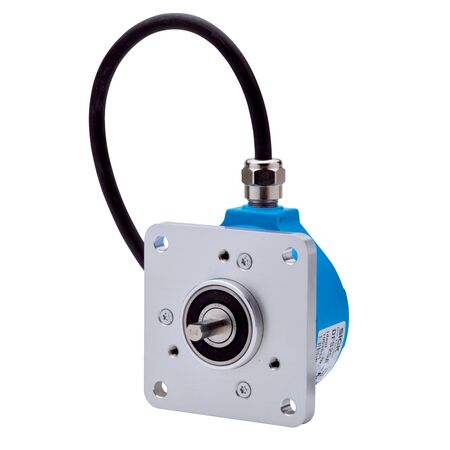

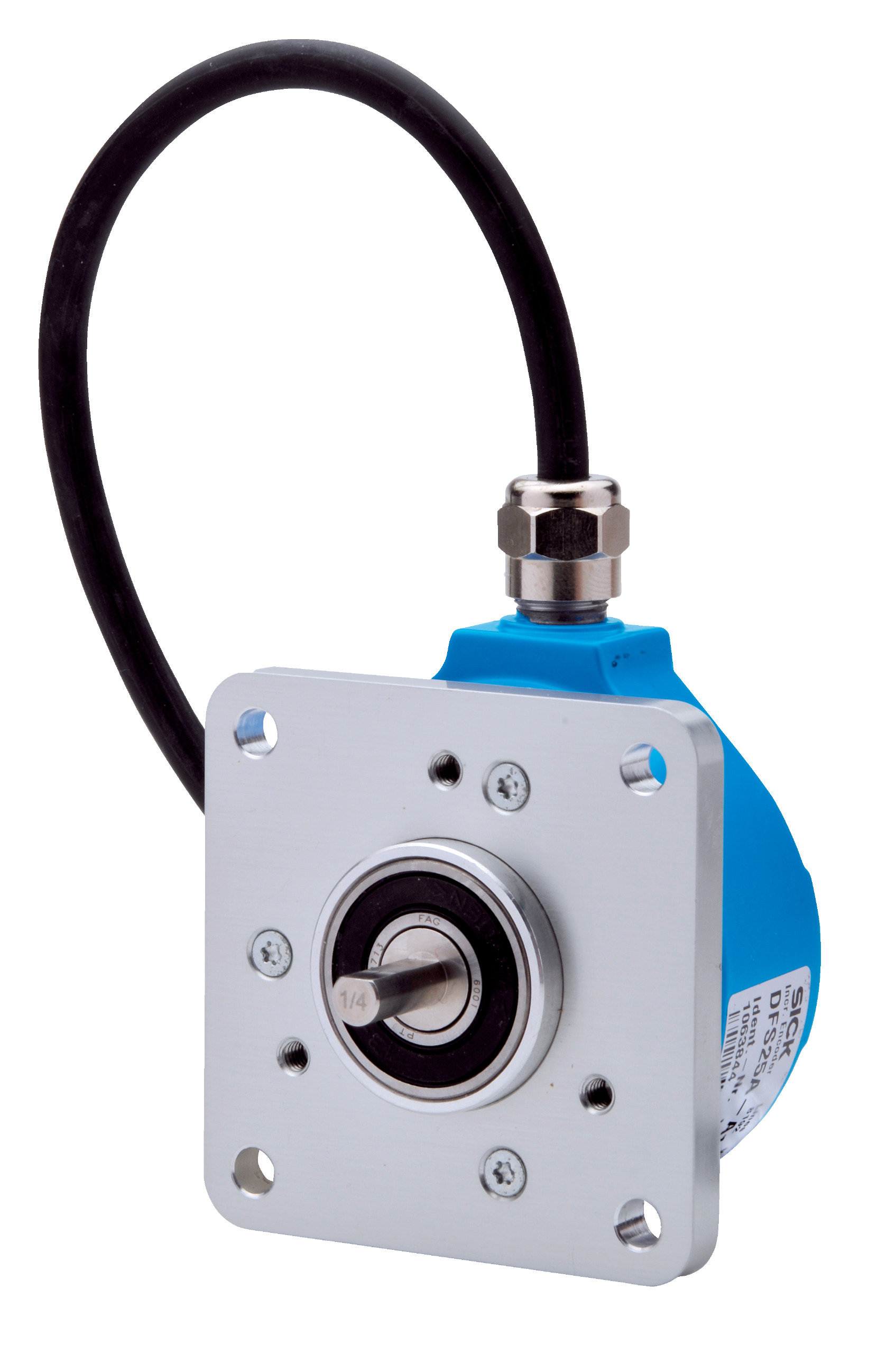

Incremental Rotary Encoder DFS25A-A2P1L065536 | 65,536 Pulses/Rev | IP65/IP67 Rated | by SICK
The Incremental Rotary Encoder DFS25A-A2P1L065536 offers high resolution with 65,536 pulses per revolution, making it ideal for precision measurement and positioning in industrial automation. With a robust mechanical design featuring a solid shaft and square flange, it ensures durability and reliability in demanding environments. Its IP65 and IP67 ratings provide excellent dust and water protection, while the wide operating temperature range from -30°C to +85°C makes it suitable for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 65,536
- Measuring step: ±90°, electric/pulses per revolution
- Measuring step deviation: ±0.002° pulses > 10,000
- Error limits: ±0.03°
- Communication interface: Incremental TTL/HTL, 6-channel
- Output frequency: 820 kHz
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Connection type: Cable, 9-wire, radial, 1.5 m
- Supply voltage: 4.75 to 30 V
- Mechanical design: Solid shaft, square flange
- Shaft diameter: 3/8 inch with flat
- Shaft length: 19 mm
- Materials: Stainless steel shaft, aluminum flange and housing
- Start up torque: 0.5 Ncm at +20°C
- Operating torque: 0.3 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: up to 9,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: -30°C to +85°C
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 100 g, 11 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.4 kg
Key Features
- High resolution with 65,536 pulses per revolution
- Robust mechanical design with solid shaft and square flange
- IP65 rated on shaft side and IP67 on housing side for dust and water protection
- Wide operating temperature range from -30°C to +85°C
- Reverse polarity and short-circuit protection
- Low power consumption of 0.7 W without load
- Fast initialization time of 40 ms
- 6-channel incremental communication interface with TTL/HTL output
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision measurement and positioning
- Conveyor systems and material handling
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS25A-A2P1L065536 incremental encoder is available for immediate purchase, ideal for precision industrial automation and motion control applications.
