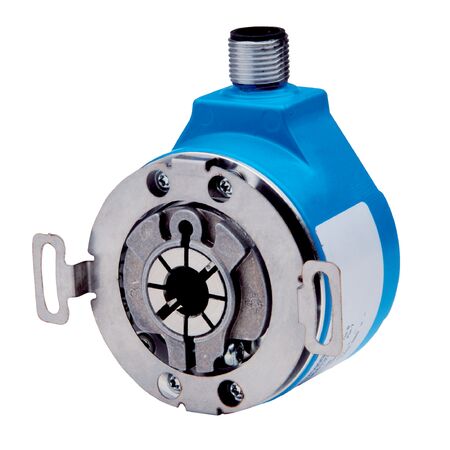

Incremental Rotary Encoder DFS22A-KFP1C065536 | 65,536 Pulses/Rev | IP65/IP67 Rated | by SICK
The Incremental Rotary Encoder DFS22A-KFP1C065536 offers high precision with 65,536 pulses per revolution, making it ideal for industrial automation and motion control applications. Designed for durability, it features a robust stainless steel shaft and an IP65/IP67 rated enclosure, ensuring reliable performance in harsh environments. With a wide operating temperature range from -30°C to +85°C, this encoder is perfect for precision measurement and positioning tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 65,536
- Measuring step: ±90°, electric/pulses per revolution
- Measuring step deviation: ±0.002° pulses > 10,000
- Error limits: ±0.03°
- Communication interface: Incremental TTL/HTL
- Number of signal channels: 6
- Output frequency: 820 kHz
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 4.75 to 30 V
- Mechanical design: Blind hollow shaft with 1/2″ front clamp
- Flange type: 2-point stator coupling
- Shaft material: Stainless steel 1.4305
- Housing material: Aluminum
- Start up torque: 0.8 Ncm at +20°C
- Operating torque: 0.6 Ncm at +20°C
- Permissible movement static: ±0.3 mm radial, ±0.5 mm axial
- Permissible movement dynamic: ±0.05 mm radial, ±0.1 mm axial
- Operating speed: up to 6,000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: -30°C to +85°C
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 100 g, 11 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.3 kg
Key Features
- High resolution with 65,536 pulses per revolution
- Incremental TTL/HTL communication interface with 6 signal channels
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- IP65/IP67 rated enclosure for harsh environments
- Operating temperature range from -30°C to +85°C
- Short-circuit and reverse polarity protection
- Low power consumption of 0.7 W without load
- Fast initialization time of 40 ms
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision measurement and positioning
- Machine tool feedback
- Conveyor and material handling systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS22A-KFP1C065536 incremental encoder is available for immediate purchase, ideal for precision industrial automation and motion control applications.
