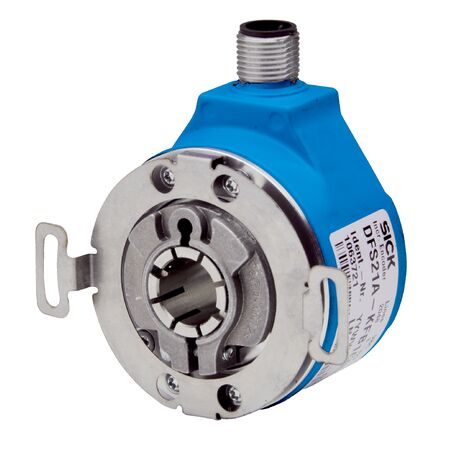

Incremental Rotary Encoder DFS21A-KFA1C065536 | 65,536 Pulses/Rev | IP65/IP67 Protection | by SICK
The Incremental Rotary Encoder DFS21A-KFA1C065536 offers high precision with 65,536 pulses per revolution, making it ideal for industrial automation and control systems. Designed for robust performance, it features a through hollow shaft mechanical design and operates within a temperature range of -30°C to +85°C. With IP65 and IP67 ratings, this encoder ensures reliable operation in challenging environments, perfect for robotics, machine tool feedback, and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 65,536
- Measuring step: ±90° electric/pulses per revolution
- Measuring step deviation: ±0.002° pulses > 10,000
- Error limits: ±0.03°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: 820 kHz
- Load current: 30 mA
- Operating current: 50 mA (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 4.5 to 5.5 V
- Mechanical design: Through hollow shaft
- Shaft diameter: 1/2 inch front clamp
- Flange type: 2-point stator coupling
- Shaft material: Stainless steel 1.4305
- Flange and housing material: Aluminum
- Start up torque: 0.8 Ncm at +20°C
- Operating torque: 0.6 Ncm at +20°C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.05 mm radial, ±0.1 mm axial
- Operating speed: up to 6,000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: up to 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: -30°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 100 g, 11 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 50mm x 70mm x 50mm
- Weight: 0.3 kg
Key Features
- High resolution with 65,536 pulses per revolution
- Robust through hollow shaft mechanical design
- IP65 shaft side and IP67 housing side protection
- Operating temperature range from -30°C to +85°C
- Reverse polarity and short-circuit protection
- Low start-up torque of 0.8 Ncm
- High bearing lifetime of 3.6 x 10^9 revolutions
- 6-channel incremental TTL/RS-422 communication interface
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision measurement and positioning
- Machine tool feedback
- Conveyor and material handling systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption electronics contribute to energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS21A-KFA1C065536 incremental encoder is available for immediate purchase, ideal for precision industrial automation and control applications.
