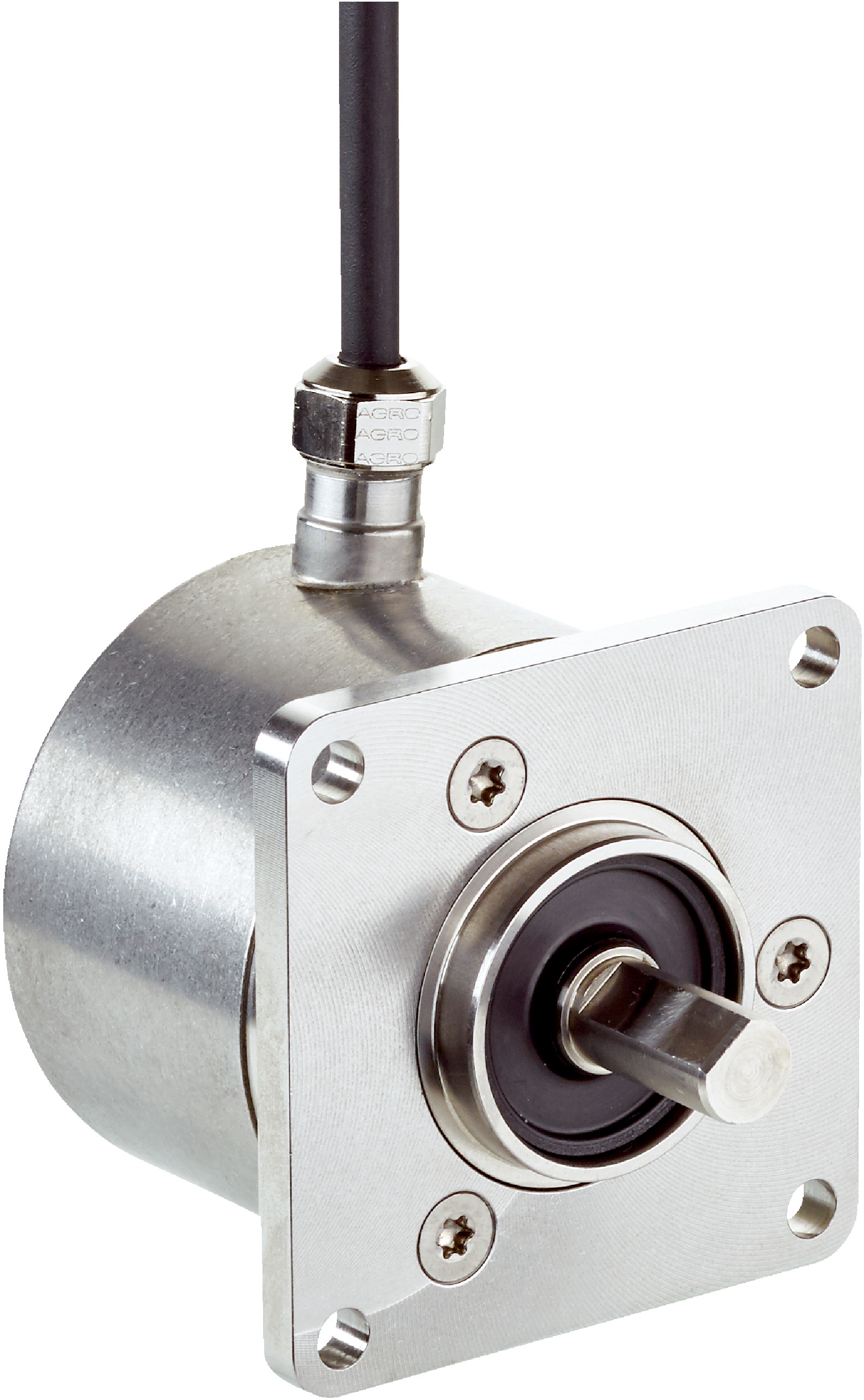

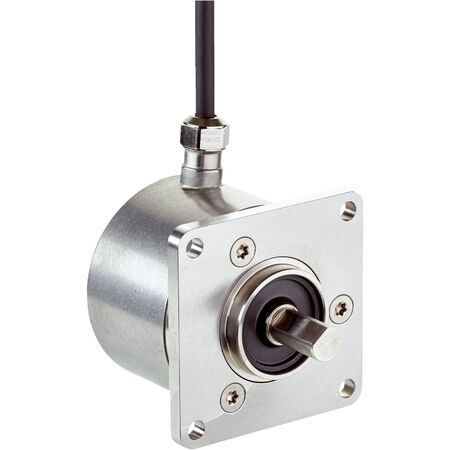

Incremental Rotary Encoder DFS60I-Q4PM65536 | 65,536 Pulses/Rev | IP67 Rated | by SICK
The Incremental Rotary Encoder DFS60I-Q4PM65536 offers high precision with 65,536 pulses per revolution, making it ideal for industrial automation and control systems. With an IP67 rated enclosure for dust and water protection, this encoder is built for durability and reliability in harsh environments, ensuring optimal performance in robotics, machine tool feedback, and precision measurement applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 65,536
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±0.0015°
- Error limits: ±0.03°
- Communication interface: Incremental TTL/HTL, 6-channel
- Initialization time: 30-32 ms
- Output frequency: ≤ 820 kHz
- Load current: ≤ 30 mA
- Operating current: 40 mA (without load)
- Power consumption: ≤ 0.7 W (without load)
- Load resistance: ≥ 120 Ω
- Connection type: 8-wire cable, 5 m radial
- Supply voltage: 4.5 to 32 V
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Start-up torque: 1 Ncm at +20 °C
- Operating torque: 0.5 Ncm at +20 °C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 (housing and shaft side)
- Operating temperature range: -40 °C to +100 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 90mm x 58mm
- Weight: 0.5 kg
Key Features
- High resolution with 65,536 pulses per revolution
- Solid shaft with stainless steel V2A housing and flange
- IP67 rated enclosure for dust and water protection
- Programmable and configurable 6-channel incremental output
- Reverse polarity and short-circuit protection
- Wide operating temperature range from -40°C to +100°C
- Low start-up torque of 1 Ncm and operating torque of 0.5 Ncm
- High mechanical durability with bearing lifetime of 3.6 x 10^10 revolutions
