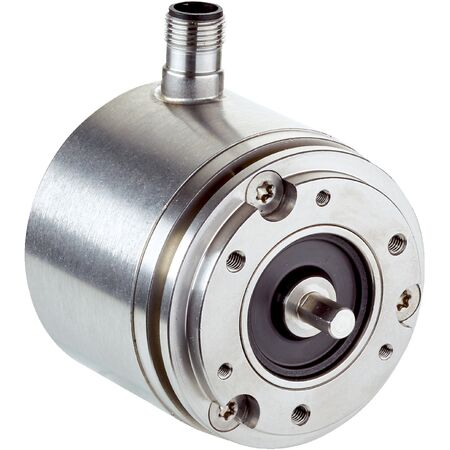

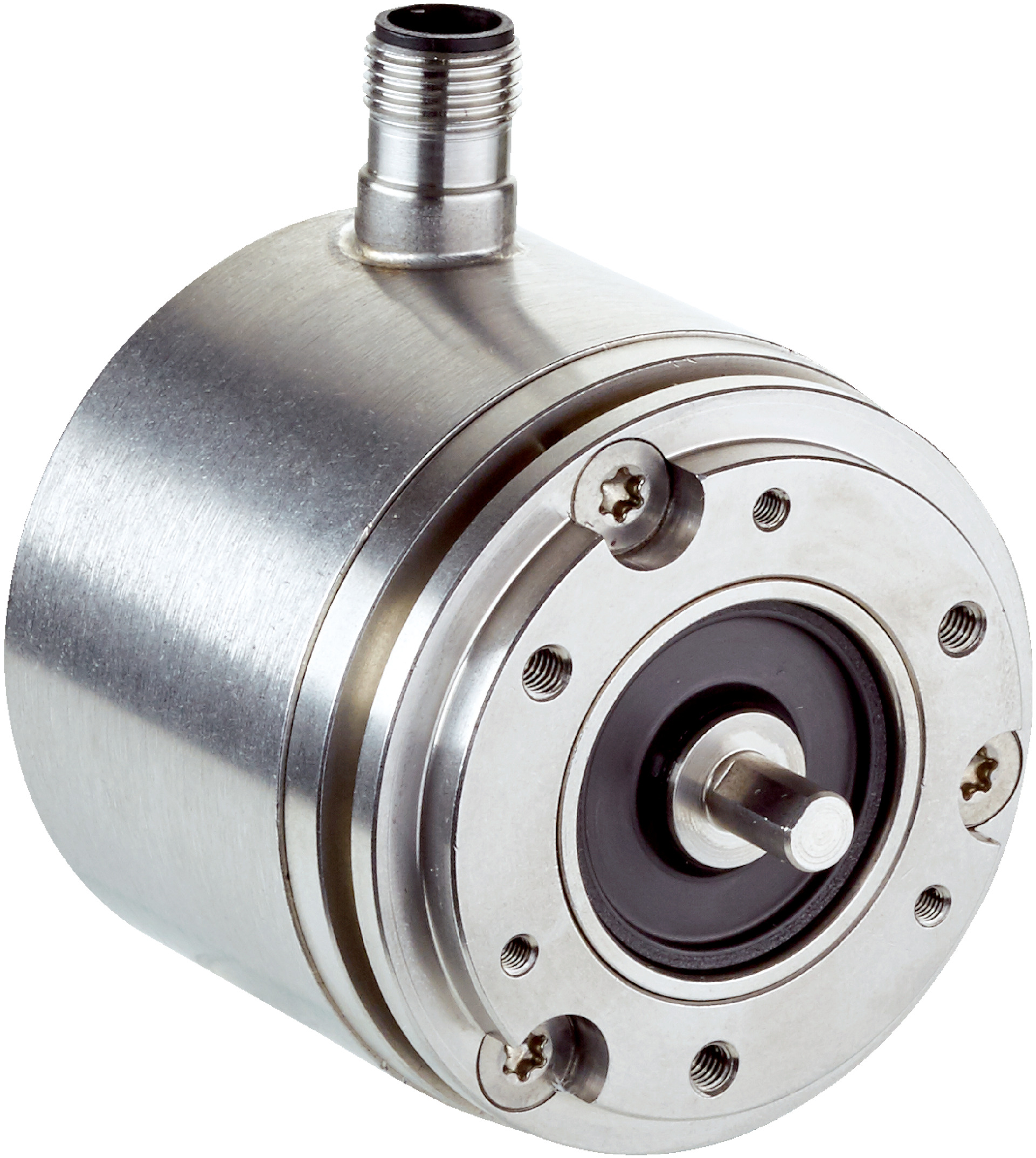

Incremental Rotary Encoder DFS60I-S1PC65536 | 65,536 Pulses/Rev | IP67 Rated | Stainless Steel Housing | by SICK
The Incremental Rotary Encoder DFS60I-S1PC65536 offers high precision with 65,536 pulses per revolution and an IP67 rated enclosure for dust and water protection. Ideal for industrial automation and robotics, this encoder features a solid stainless steel shaft and low power consumption, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 65,536
- Measuring step deviation: ±0.0015°
- Error limits: ±0.03°
- Communication interface: Incremental TTL/HTL, 6-channel
- Output frequency: ≤ 820 kHz
- Load current: ≤ 30 mA
- Operating current: 40 mA (without load)
- Power consumption: ≤ 0.7 W (without load)
- Supply voltage: 4.5 to 32 V
- Connection type: Male M12, 8-pin radial connector
- Shaft diameter: 6 mm with flat
- Operating speed: ≤ 9,000 min⁻¹
- Start-up torque: 1 Ncm at +20°C
- Operating torque: 0.5 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Bearing lifetime: 3.6 x 10^10 revolutions
- Enclosure rating: IP67 (housing and shaft side)
- Operating temperature range: -40°C to +100°C
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.5 kg
Key Features
- High resolution with 65,536 pulses per revolution
- Solid shaft with stainless steel housing and flange
- IP67 rated enclosure for dust and water protection
- Programmable and configurable 6-channel incremental output
- Reverse polarity and short-circuit protection
- Operating temperature range from -40°C to +100°C
- Low start-up and operating torque for efficient operation
- High mechanical durability with bearing lifetime of 3.6 x 10^10 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and configuration.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Precision measurement and positioning
- Machine tool monitoring and control
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction extends product life and reduces waste
- Low power consumption of ≤ 0.7 W reduces energy usage
- IP67 rating ensures protection against environmental contaminants, reducing failure rates
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60I-S1PC65536 incremental encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
