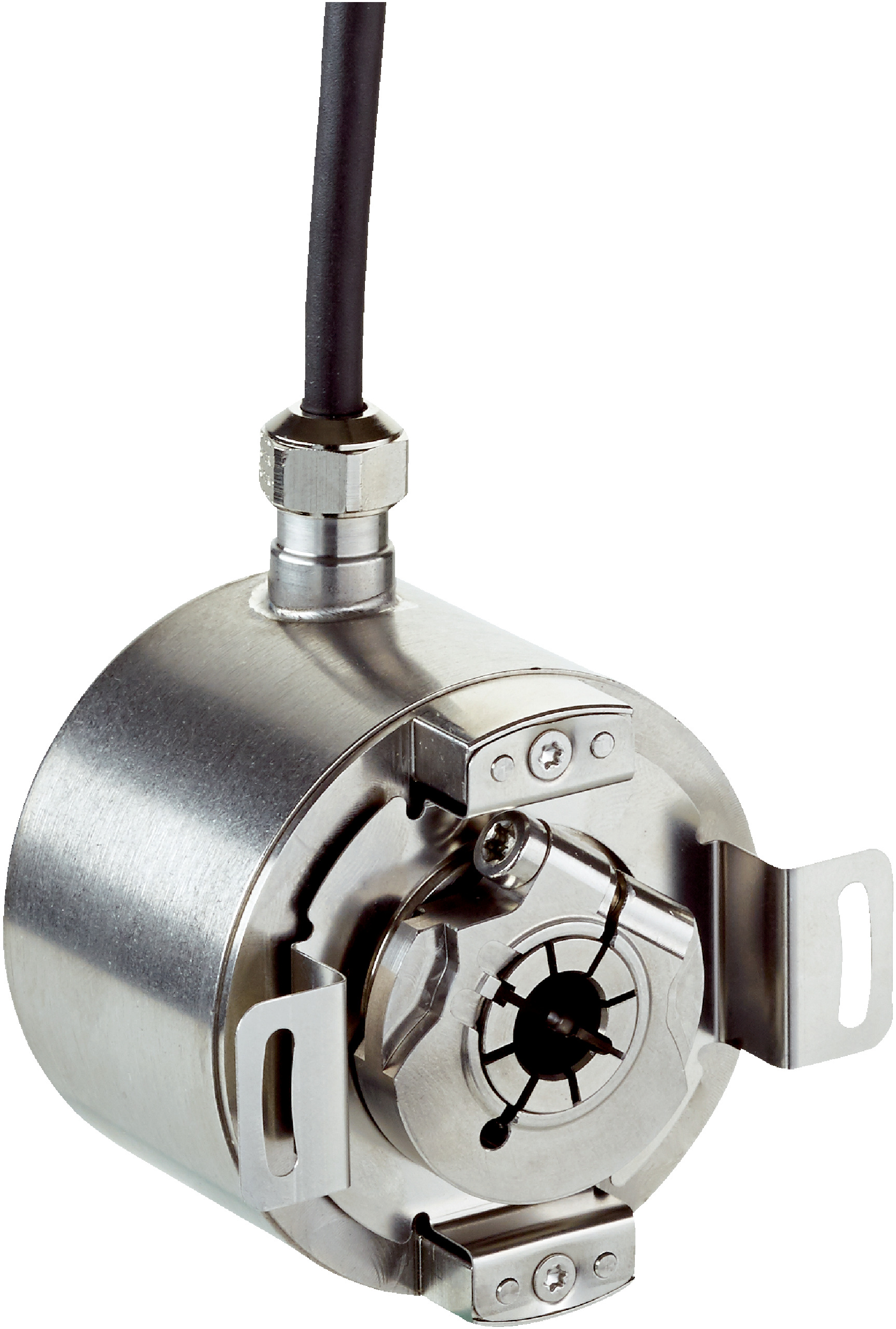

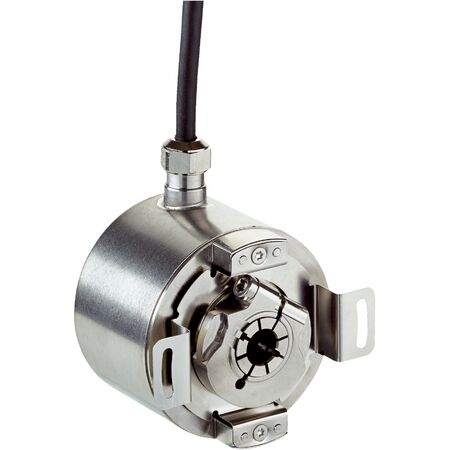

Incremental Rotary Encoder DFS60I-BHCN65536 | 65,536 Pulses/Rev | IP67 Rated | Stainless Steel Housing | by SICK
The Incremental Rotary Encoder DFS60I-BHCN65536 offers high precision with 65,536 pulses per revolution, making it ideal for industrial automation and motion control applications. Built with a robust stainless steel housing and an IP67 rated enclosure, it ensures durability and reliability in harsh environments. With a fast initialization time of 40 ms and reverse polarity protection, this encoder is perfect for precision measurement and positioning tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 65,536
- Measuring step deviation: ±0.0015°
- Error limits: ±0.03°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: ≤820 kHz
- Load current: ≤30 mA
- Operating current: 40 mA (without load)
- Power consumption: ≤0.5 W (without load)
- Load resistance: ≥120 Ω
- Connection type: Cable, 8-wire, radial, 10 m
- Supply voltage: 10 to 32 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 15 mm front clamp
- Shaft, flange, and housing material: Stainless steel V2A
- Start up torque: 1 Ncm (+20 °C)
- Operating torque: 0.5 Ncm (+20 °C)
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.05 mm radial, ±0.01 mm axial
- Operating speed: ≤6,000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-4
- Enclosure rating: IP67 (housing and shaft side)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -40 °C to +100 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.5 kg
Key Features
- High resolution with 65,536 pulses per revolution
- Robust stainless steel V2A housing, shaft, and flange
- Blind hollow shaft design with 15 mm front clamp
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40°C to +100°C
- Reverse polarity and short-circuit protection
- Low operating torque of 0.5 Ncm
- High bearing lifetime of 3.6 x 10^10 revolutions
- 6-channel incremental TTL/RS-422 communication interface
- Fast initialization time of 40 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision measurement and positioning
- Machine tool feedback
- Conveyor and material handling systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel construction extends product lifespan reducing waste
- Low power consumption of ≤0.5 W minimizes energy usage
- High reliability reduces maintenance and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60I-BHCN65536 incremental encoder is available for immediate purchase, ideal for high-precision industrial automation and motion control applications.
