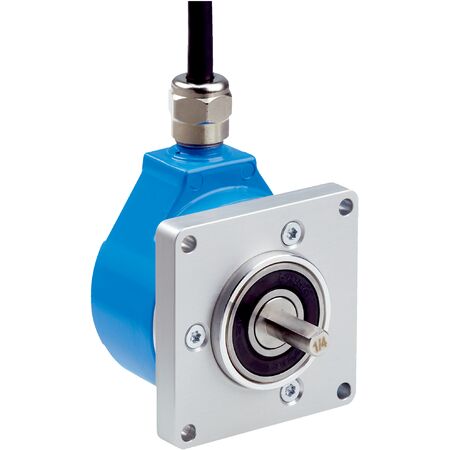

Incremental Rotary Encoder | 65,536 Pulses/Rev | ±0.002° Accuracy | IP65/IP67 Rated | by SICK
The Incremental Rotary Encoder offers high precision with 65,536 pulses per revolution and a measuring step accuracy of ±0.002°. Designed for industrial automation and robotics, it features a robust mechanical design with IP65/IP67 ratings for protection against dust and water. Ideal for applications requiring precise measurement and positioning, this encoder ensures reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Mean time to dangerous failure (MTTFD): 330 years (EN ISO 13849-1)
- Pulses per revolution: 65,536
- Measuring step: ±90°, electric/pulses per revolution
- Measuring step deviation: ±0.002° pulses > 10,000
- Error limits: ±0.03°
- Communication interface: Incremental TTL/HTL, 6-channel
- Factory setting: output level TTL
- 0-set function via hardware pin, H-active
- Initialization time: 40 ms
- Output frequency: 820 kHz
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Connection type: Cable, 9-wire, radial, 10 m
- Supply voltage: 4.75 to 30 V
- Reference signal: 1, positioned at 180°, gated with A
- Code sequence: Counterclockwise
- Reverse polarity and short-circuit protection included
- Mechanical design: Solid shaft, square flange
- Shaft diameter: 10 mm with flat
- Shaft length: 16 mm
- Shaft material: Stainless steel 1.4305
- Flange and housing material: Aluminum
- Start up torque: 0.5 Ncm at +20 °C
- Operating torque: 0.3 Ncm at +20 °C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: up to 9,000 min⁻¹
- Moment of inertia of rotor: 15 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: up to 500,000 rad/s²
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –30 °C to +85 °C
- Storage temperature range: –40 °C to +100 °C
- Shock resistance: 100 g, 11 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 50mm x 80mm x 50mm
- Weight: 0.4 kg
Key Features
- High resolution with 65,536 pulses per revolution
- Measuring step accuracy of ±0.002° for pulses > 10,000
- 6-channel incremental communication interface (TTL/HTL)
- Robust mechanical design with solid shaft and square flange
- IP65 rated on shaft side and IP67 on housing side for protection
- Wide operating temperature range from –30 °C to +85 °C
- Reverse polarity and short-circuit protection
- Low power consumption of 0.7 W without load
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and calibration.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision measurement and positioning
- Conveyor systems and material handling
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS20A-A4PBO065536 incremental encoder is available for immediate purchase, ideal for high-precision industrial automation and motion control applications.
