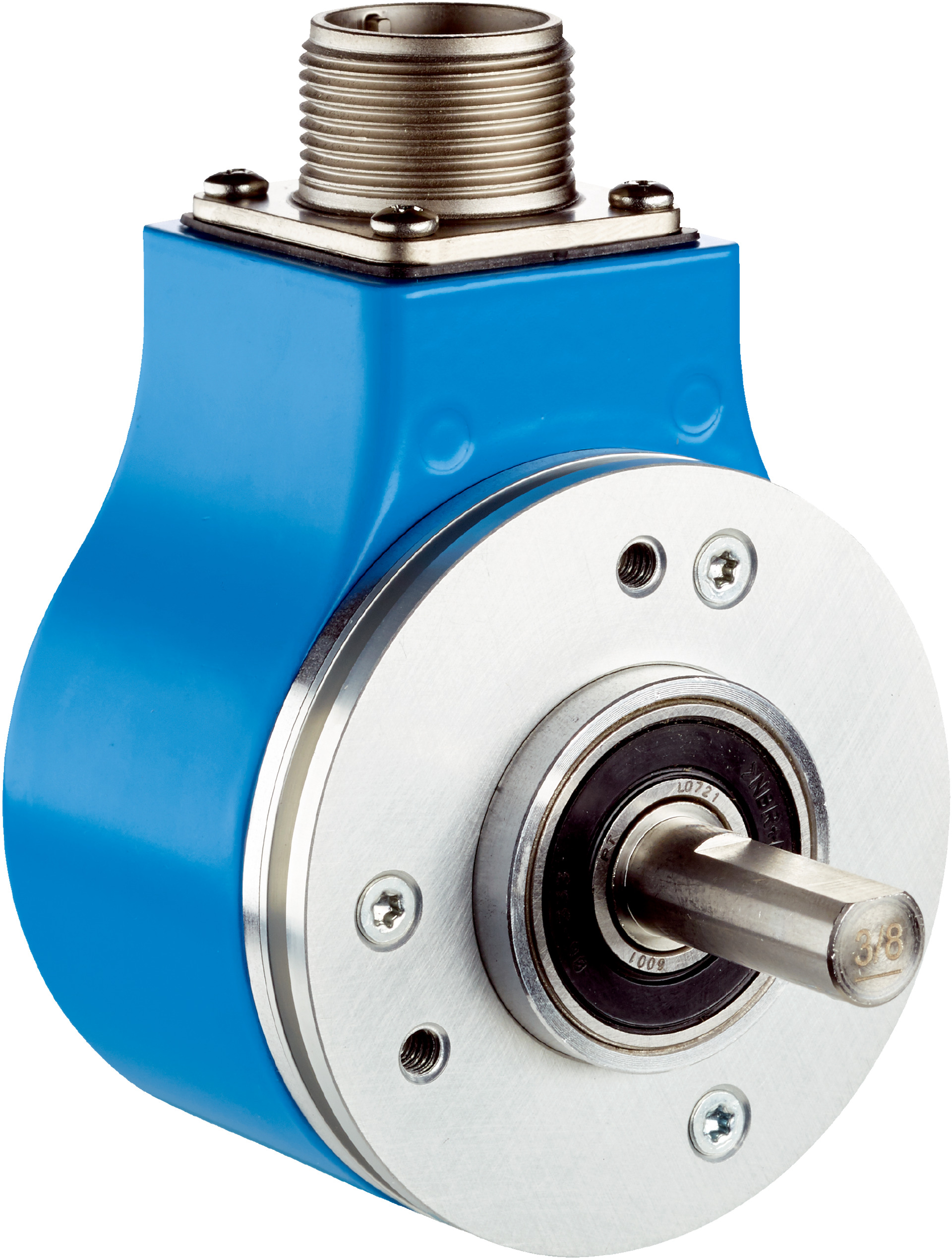

Incremental Rotary Encoder | 65,536 Pulses/Rev | IP65/IP67 Rated | High Mechanical Durability | by SICK
The Incremental Rotary Encoder offers high resolution with 65,536 pulses per revolution, making it ideal for industrial automation and precision measurement applications. Designed for robust performance, it features an IP65 rating on the shaft side and IP67 on the housing side, ensuring protection against dust and water. With a wide operating temperature range from -30°C to +85°C, this encoder is perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 65,536
- Measuring step: ±90°, electric/pulses per revolution
- Measuring step deviation: ±0.002° pulses > 10,000
- Error limits: ±0.03°
- Communication interface: Incremental TTL/HTL, 6-channel
- Output frequency: 820 kHz
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Supply voltage: 4.75 to 30 V
- Connection type: Male connector, MS, 10-pin, radial
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Operating speed: ≤ 9,000 min⁻¹
- Start up torque: 0.5 Ncm (+20 °C)
- Operating torque: 0.3 Ncm (+20 °C)
- Permissible shaft loading: 80 N radial, 40 N axial
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: -30 °C to +85 °C
- Resistance to shocks: 100 g, 11 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 90mm x 58mm
- Weight: 0.4 kg
Key Features
- High resolution with 65,536 pulses per revolution
- Solid shaft with servo flange mechanical design
- Robust aluminum housing and flange
- IP65 rated on shaft side and IP67 on housing side for protection
- Wide operating temperature range from -30°C to +85°C
- Reverse polarity and short-circuit protection
- 6-channel incremental TTL/HTL communication interface
- Fast initialization time of 40 ms
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Precision measurement and positioning
- Machine tool and manufacturing equipment
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of 0.7 W contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
