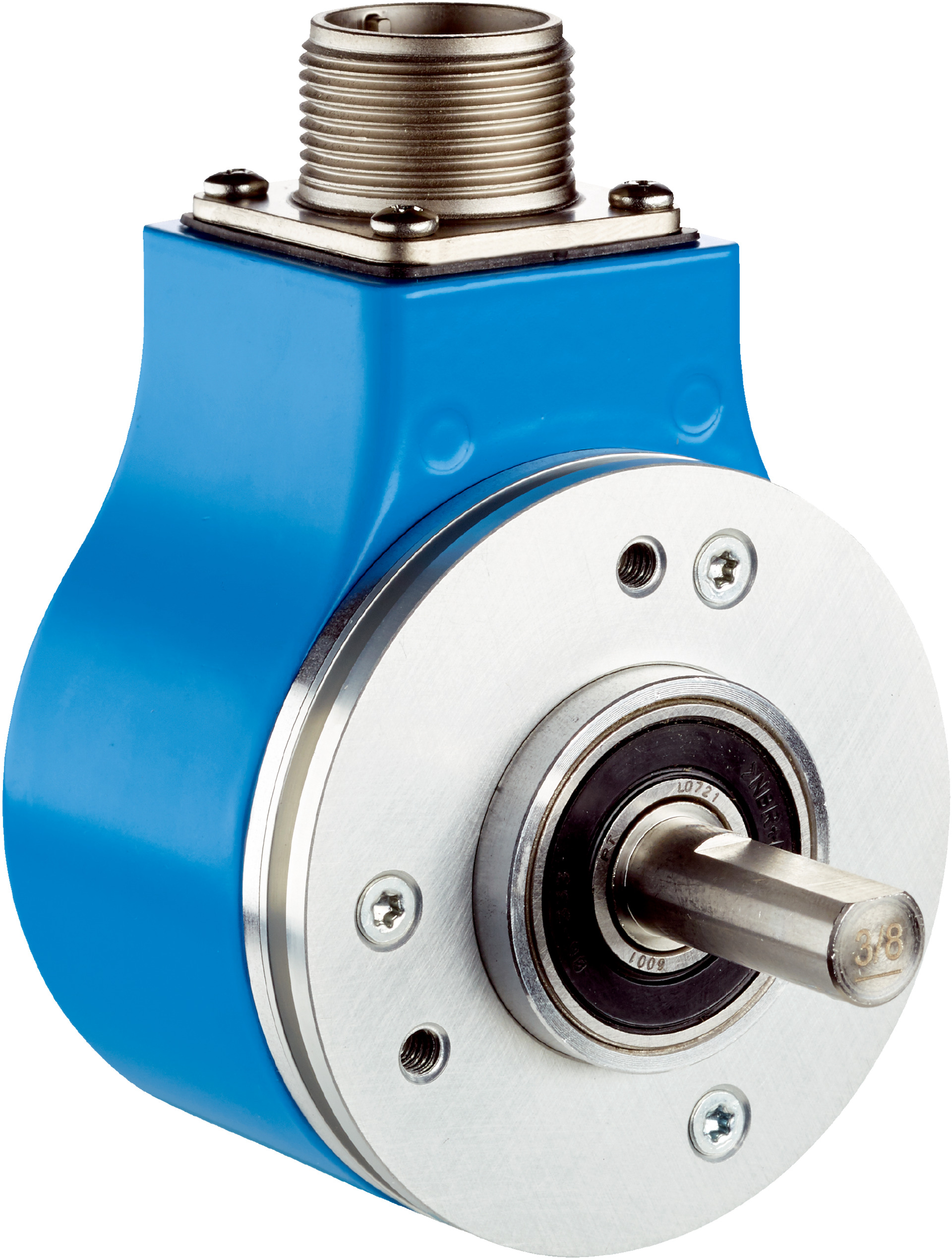

Incremental Rotary Encoder | 65,536 Pulses/Rev | IP65/IP67 Protection | by SICK
The Incremental Rotary Encoder offers high resolution with 65,536 pulses per revolution, making it ideal for industrial automation and precision motion control applications. Built for durability, it features a robust aluminum housing, IP65/IP67 protection, and operates within a temperature range of -30°C to +85°C. With reverse polarity and short-circuit protection, this encoder ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 65,536
- Measuring step: ±90°, electric/pulses per revolution
- Measuring step deviation: ±0.002° pulses > 10,000
- Error limits: ±0.03°
- Communication interface: Incremental TTL/HTL, 6-channel
- Output frequency: 820 kHz
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Connection type: Male connector, MS, 10-pin, radial
- Supply voltage: 4.75 to 30 V
- Reference signal: 1, positioned at 180°, gated with A
- Code sequence: Clockwise
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Mechanical design: Solid shaft, servo flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Shaft material: Stainless steel 1.4305
- Flange and housing material: Aluminum
- Start up torque: 0.5 Ncm at +20°C
- Operating torque: 0.3 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 15 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -30°C to +85°C
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 100 g, 11 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 40mm x 70mm x 40mm
- Weight: 0.4 kg
Key Features
- High resolution with 65,536 pulses per revolution
- Solid shaft with 10 mm diameter and flat
- Robust aluminum housing and flange
- IP65 shaft side and IP67 housing side protection
- Reverse polarity and short-circuit protection
- Operating temperature range from -30°C to +85°C
- 6-channel incremental TTL/HTL communication interface
- 0-set function via hardware pin
- Low power consumption of 0.7 W without load
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and control systems
- Servo motor feedback
- Robotics and motion control
- Precision measurement and positioning
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS25A-B4P1D065536 incremental encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
