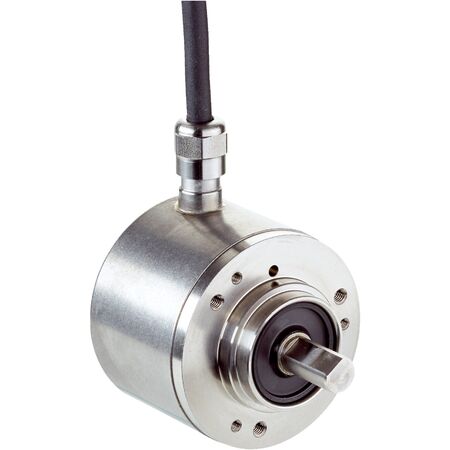

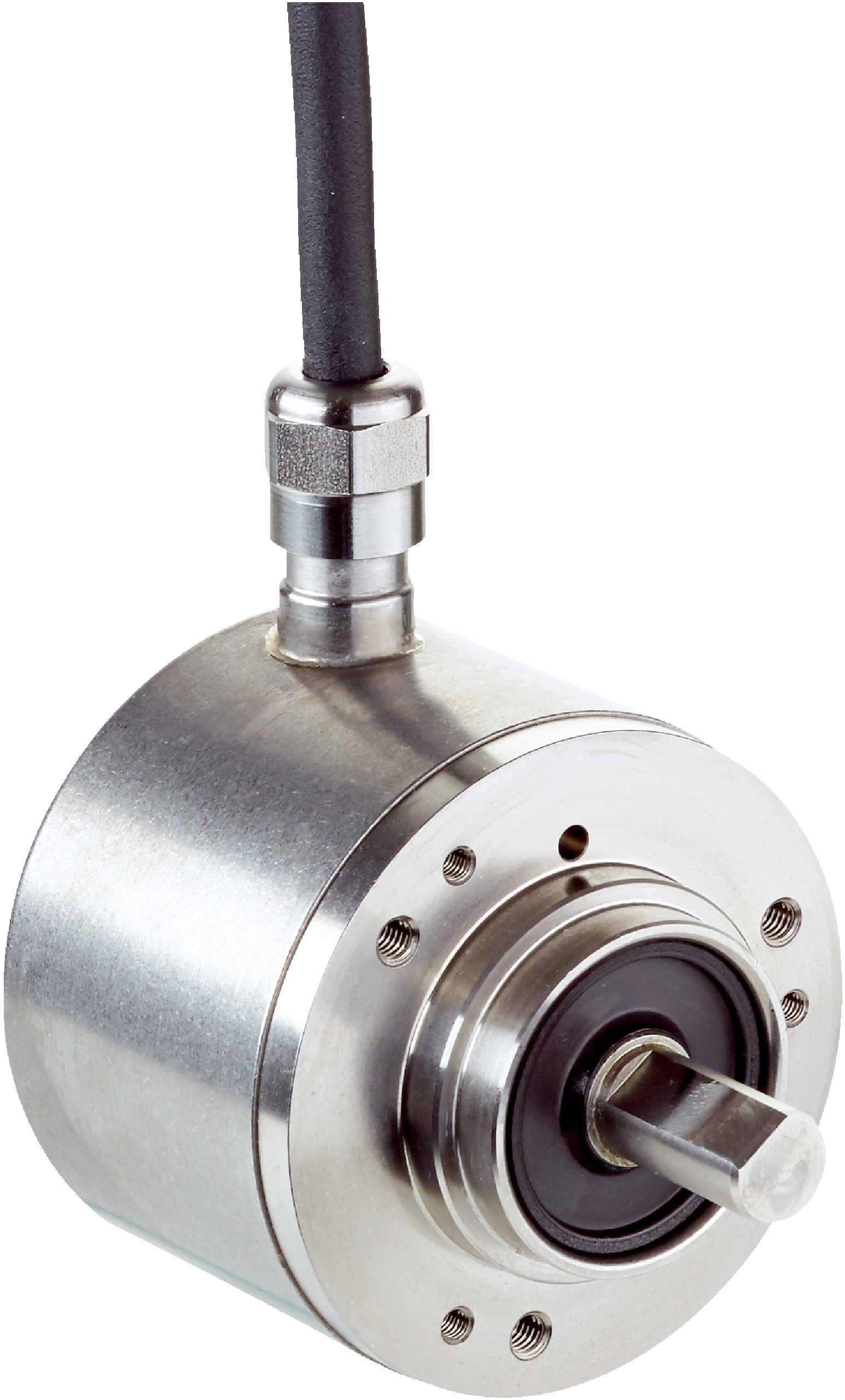

Incremental Rotary Encoder | 65,536 Pulses/Rev | IP67 Rated | Stainless Steel Design | by SICK
The Incremental Rotary Encoder offers high precision with 65,536 pulses per revolution, making it ideal for industrial automation and motion control applications. Built with a robust stainless steel design and an IP67 rating, it ensures durability in harsh environments while providing reliable performance for robotics and precision measurement tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 65,536
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±0.0015°
- Error limits: ±0.03°
- Communication interface: Incremental TTL/HTL
- Number of signal channels: 6
- Initialization time: 30-32 ms
- Output frequency: ≤ 820 kHz
- Load current: ≤ 30 mA
- Operating current: 40 mA (no load)
- Power consumption: ≤ 0.7 W (no load)
- Load resistance: ≥ 120 Ω
- Connection type: 8-wire cable, 3 m radial
- Supply voltage: 4.5 to 32 V
- Reference signal: 1, positioned at 90° electric
- Reverse polarity and short-circuit protection included
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Start-up torque: 1 Ncm at +20°C
- Operating torque: 0.5 Ncm at +20°C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.6 x 10^10 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 (housing and shaft side)
- Operating temperature: -40°C to +100°C
- Storage temperature: -40°C to +100°C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.5 kg
Key Features
- High resolution with 65,536 pulses per revolution
- Solid shaft with face mount flange design
- Stainless steel V2A shaft, flange, and housing for durability
- Programmable and configurable 6-channel incremental output
- TTL/HTL communication interface with factory TTL output setting
- Robust IP67 rated enclosure for harsh environments
- Reverse polarity and short-circuit protection
- Operating temperature range from -40°C to +100°C
- Low start-up torque of 1 Ncm and operating torque of 0.5 Ncm
- High mechanical reliability with bearing lifetime of 3.6 x 10^10 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision measurement and positioning
- Machine tool feedback
- Conveyor and material handling systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction extends product life and reduces waste
- Low power consumption of ≤ 0.7 W reduces energy usage
- IP67 rating protects against dust and water ingress, minimizing maintenance and replacement
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS60I-S4PL65536 incremental encoder is available for immediate purchase, ideal for high-precision industrial automation and motion control applications.
