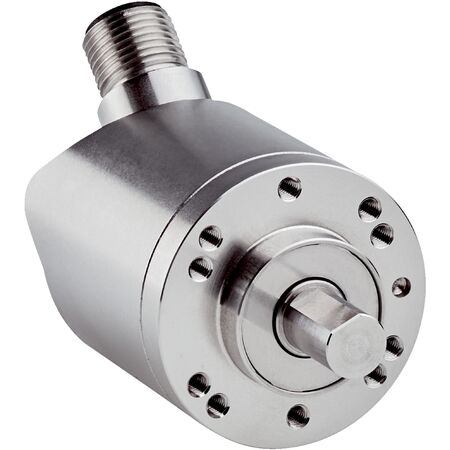

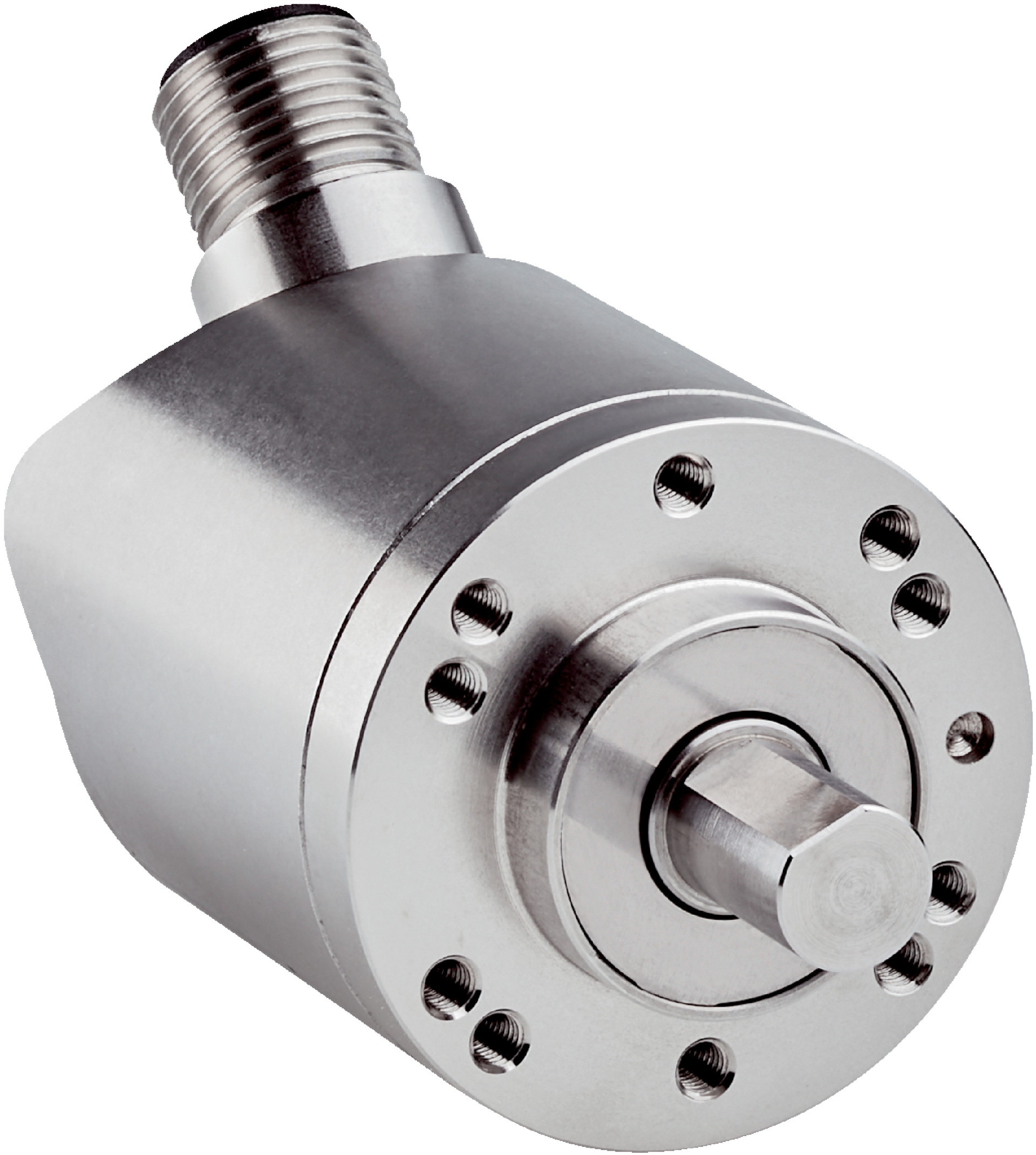

Incremental Rotary Encoder AHS36I-S3AC000720 | 720 Steps/Rev | IP67 & IP69K Rated | by SICK
The AHS36I-S3AC000720 incremental rotary encoder delivers high precision with 720 steps per revolution, making it ideal for industrial automation and robotics applications. With a robust stainless steel housing and an IP67/IP69K rating, it withstands harsh environments while providing fast position forming in just 125 µs. Perfect for machine tools and conveyor systems, this encoder ensures reliable performance and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Mean time to dangerous failure (MTTFD): 230 years (EN ISO 13849-1)
- Maximum resolution: 720 steps per revolution
- Error limit: 0.35° at 20 °C
- Repeatability standard deviation: 0.2° at 20 °C
- Communication interface: SSI with Gray code
- Initialization time: 100 ms
- Position forming time: 125 µs
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤1.5 W (without load)
- Connection: Male M12, 8-pin connector
- Mechanical design: Solid shaft with flat, face mount flange
- Shaft diameter: 6 mm, length: 12 mm
- Operating torque: <1 Ncm
- Permissible shaft loading: 40 N radial, 20 N axial
- Operating speed: up to 6000 min⁻¹
- Enclosure rating: IP67 and IP69K
- Operating temperature range: -40 °C to +100 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.2 kg
Key Features
- High resolution with 720 steps per revolution
- Robust stainless steel housing and shaft
- IP67 and IP69K rated for harsh environments
- Low operating torque less than 1 Ncm
- Fast position forming time of 125 µs
- Reverse polarity protection included
- Communication via SSI interface with Gray code
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical and automation equipment to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for precise position measurement
- Robotics for accurate motion control
- Machine tools requiring high resolution feedback
- Conveyor systems and packaging machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption of ≤1.5 W minimizes energy use
- High reliability reduces downtime and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed terms.
Available Now
The SICK AHS36I-S3AC000720 incremental encoder is available for immediate purchase, ideal for industrial automation and precise position sensing applications.
