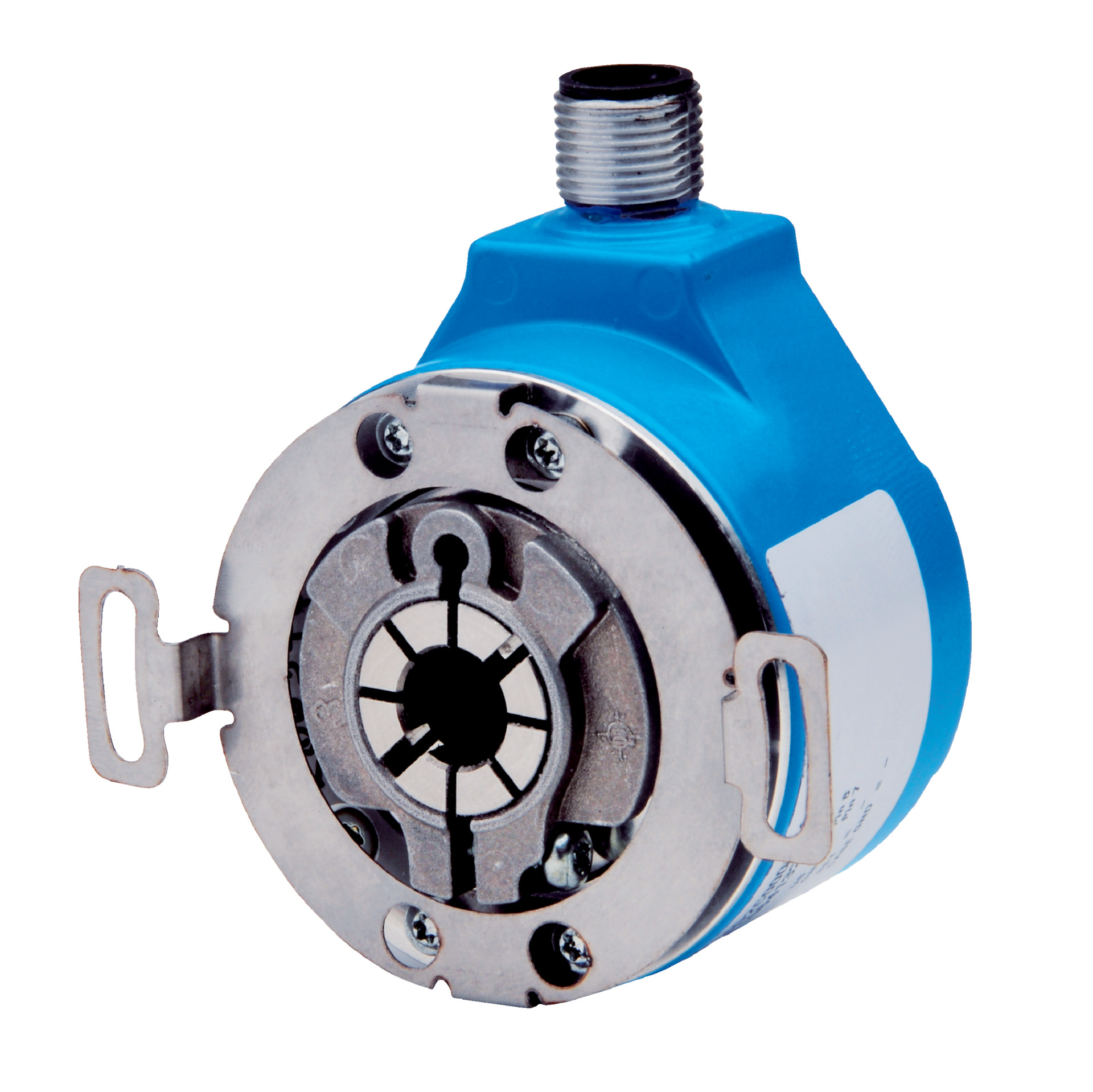

Incremental Rotary Encoder DFS22A-KFD2C008192 | 8192 Pulses/Rev | IP65/IP67 Rated | by SICK
The Incremental Rotary Encoder DFS22A-KFD2C008192 features a high resolution of 8,192 pulses per revolution and an incremental communication interface with open collector output. Designed for industrial automation and robotics, it offers robust protection with IP65/IP67 ratings and operates efficiently in temperatures from -30°C to +85°C, ensuring reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 8,192
- Measuring step: ±90° electric/pulses per revolution
- Measuring step deviation: ±0.008° pulses 100 to 10,000
- Error limits: ±0.03°
- Communication interface: Incremental, Open Collector
- Number of signal channels: 6
- Initialization time: 40 ms
- Output frequency: 150 kHz
- Load current: 30 mA
- Power consumption: 0.7 W (without load)
- Connection type: Male connector, M12, 8-pin, radial
- Supply voltage: 8 to 30 V
- Reference signal: 1 at 90°, logically gated with A and B
- Code sequence: Clockwise
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 1/2 inch front clamp
- Flange type: 2-point stator coupling
- Shaft material: Stainless steel 1.4305
- Flange and housing material: Aluminum
- Start-up torque: 0.8 Ncm at +20°C
- Operating torque: 0.6 Ncm at +20°C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.05 mm radial, ±0.1 mm axial
- Operating speed: up to 6,000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: up to 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: -30°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 100 g, 11 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.3 kg
Key Features
- High resolution with 8,192 pulses per revolution
- Incremental communication interface with open collector output
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- IP65 rated shaft side and IP67 rated housing side for protection against dust and water
- Operating temperature range from -30°C to +85°C
- Reverse polarity and short-circuit protection
- Low start-up and operating torque for minimal mechanical load
- High bearing lifetime of 3.6 billion revolutions
- Fast initialization time of 40 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and alignment.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Machine tool feedback
- Conveyor and material handling systems
- Safety-related monitoring applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of 0.7 W reduces energy usage
- Robust protection against environmental factors extends product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS22A-KFD2C008192 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-related applications.
