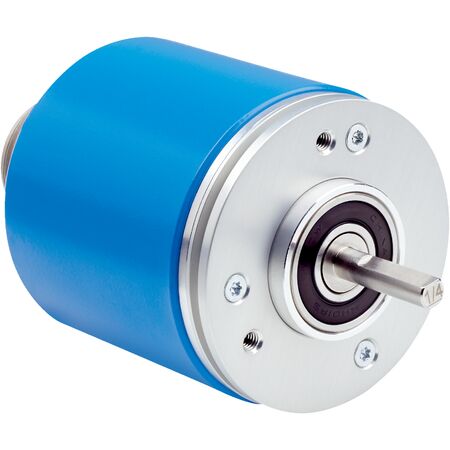

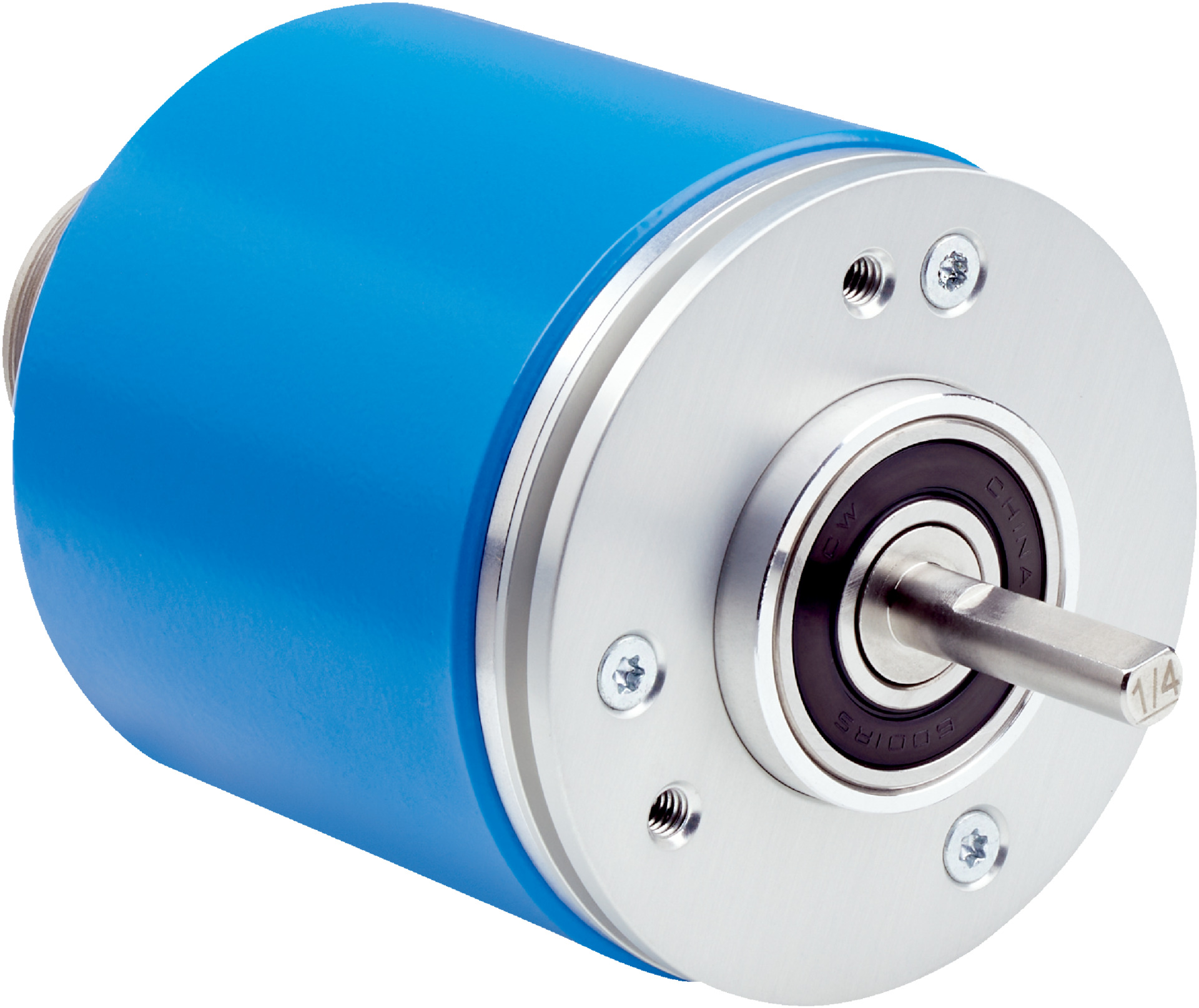

Incremental Rotary Encoder | 8192 Pulses/Rev | IP65/IP67 Rated | High Speed | by SICK
The Incremental Rotary Encoder DFS25A-B2AB2008192 offers high resolution with 8,192 pulses per revolution, making it ideal for precise position and speed measurement in industrial automation and control systems. With a robust stainless steel shaft and an IP65/IP67 rated enclosure, it withstands harsh environments while providing reliable performance. Perfect for robotics and machine tool monitoring, this encoder ensures efficient operation with low power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 8,192
- Measuring step deviation: ±0.008°
- Error limits: ±0.03°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Output frequency: 820 kHz
- Load current: 30 mA
- Operating current: 50 mA (without load)
- Supply voltage: 4.5 to 5.5 V
- Shaft diameter: 3/8 inch with flat
- Shaft length: 19 mm
- Operating temperature range: -30°C to +85°C
- Enclosure rating: IP65 shaft side, IP67 housing side
- Resistance to shocks: 100 g, 11 ms
- Resistance to vibration: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 58mm x 90mm x 58mm
- Weight: 0.4 kg
Key Features
- High resolution with 8,192 pulses per revolution
- Robust solid shaft design with stainless steel shaft
- IP65/IP67 rated enclosure for harsh environments
- Short-circuit and reverse polarity protection
- Fast initialization time of 40 ms
- High operating speed up to 9,000 min⁻¹
- Low operating torque for efficient operation
- 6-channel incremental communication interface (TTL/RS-422)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoder wiring and configuration to ensure proper operation and safety.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Position and speed measurement in manufacturing
- Machine tool monitoring and control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption electronics for energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS25A-B2AB2008192 incremental encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
