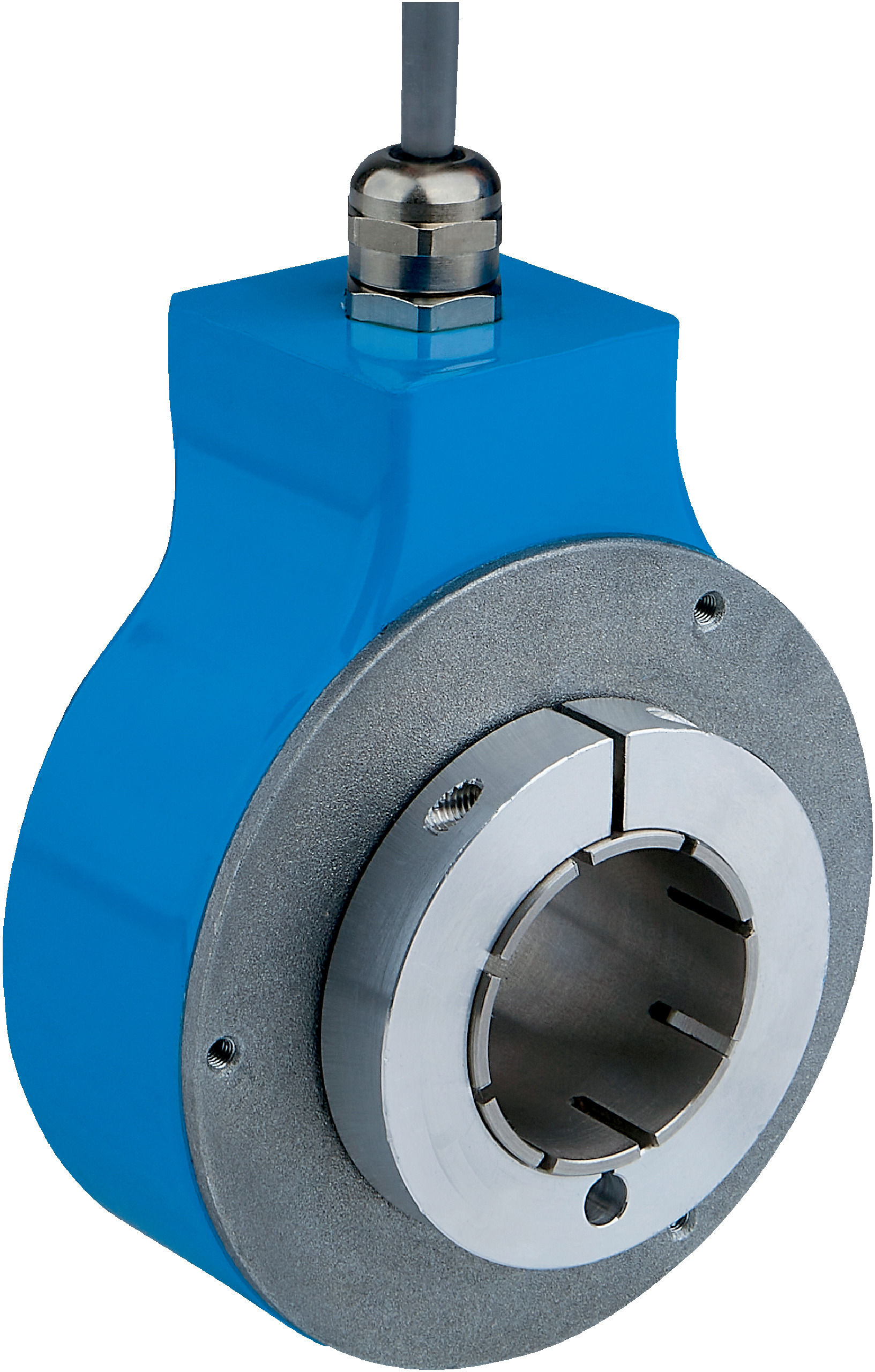

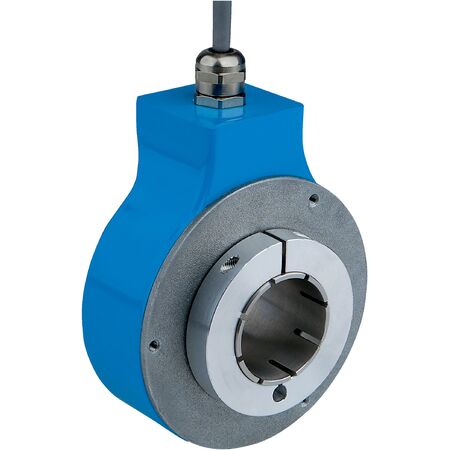

Incremental Rotary Encoder | 8192 Pulses/Rev | IP65 Rated | Through Hollow Shaft Design | by SICK
The Incremental Rotary Encoder DGS80B-TSHK08192 features a high resolution of 8,192 pulses per revolution, making it ideal for precise motion control in industrial automation. With a robust through hollow shaft design and an IP65 rated enclosure, it ensures reliable performance in challenging environments. Perfect for robotics, conveyor systems, and machine tool feedback, this encoder is built to withstand harsh conditions while providing accurate position sensing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 8,192
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±15° electrical
- Duty cycle: ≤ 0.5 ± 15%
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6-channel
- Initialization time: < 50 ms
- Output frequency: ≤ 300 kHz
- Load current: ≤ 40 mA per channel
- Operating current: ≤ 50 mA (without load)
- Power consumption: ≤ 0.85 W
- Connection type: Cable, 8-wire, radial, 1.5 m
- Supply voltage: 5 to 30 V
- Reference signal position: 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Mechanical design: Through hollow shaft
- Shaft diameter: 30 mm
- Flange type: 1-sided stator coupling (accessory available)
- Shaft material: Aluminum
- Flange and housing material: ZAMAC die cast
- Cable material: PUR
- Shaft sealing ring material: FKM70
- Cable gland material: Nickel-plated brass
- Start up torque: 6 Ncm at +20 °C
- Operating torque: 5 Ncm at +20 °C
- Permissible shaft loading: 100 N radial and axial
- Operating speed: ≤ 3,600 min⁻¹
- Moment of inertia of rotor: 408 gcm²
- Bearing lifetime: 10^9 revolutions
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (IEC 60529)
- Permissible relative humidity: 98% (no condensation)
- Operating temperature range: -25 °C to +85 °C
- Storage temperature range: -25 °C to +85 °C (without package)
- Shock resistance: 250 g, 6 ms (EN 60068-2-27)
- Vibration resistance: 10 g, 5 Hz to 2,000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 80mm x 50mm x 80mm
- Weight: 0.65 kg
Key Features
- High resolution with 8,192 pulses per revolution
- Through hollow shaft mechanical design with 30 mm shaft diameter
- Robust housing and flange made of ZAMAC die cast
- IP65 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection
- Low startup torque of 6 Ncm and operating torque of 5 Ncm
- Operating speed up to 3,600 min⁻¹
- Cable connection with 8-wire radial 1.5 m PUR cable
- EMC compliant according to EN 61000-6-2 and EN 61000-6-3
- Wide operating temperature range from -25 °C to +85 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor systems and material handling
- Machine tool feedback and positioning
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of ≤ 0.85 W supports energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DGS80B-TSHK08192 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
