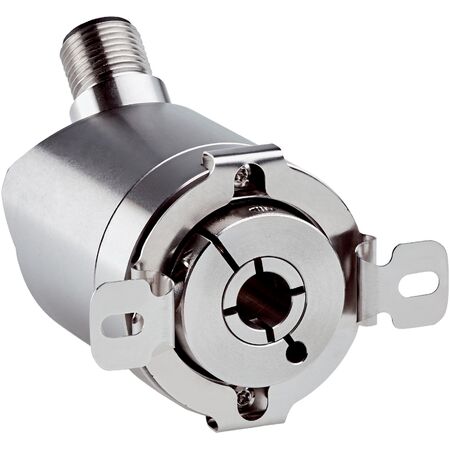

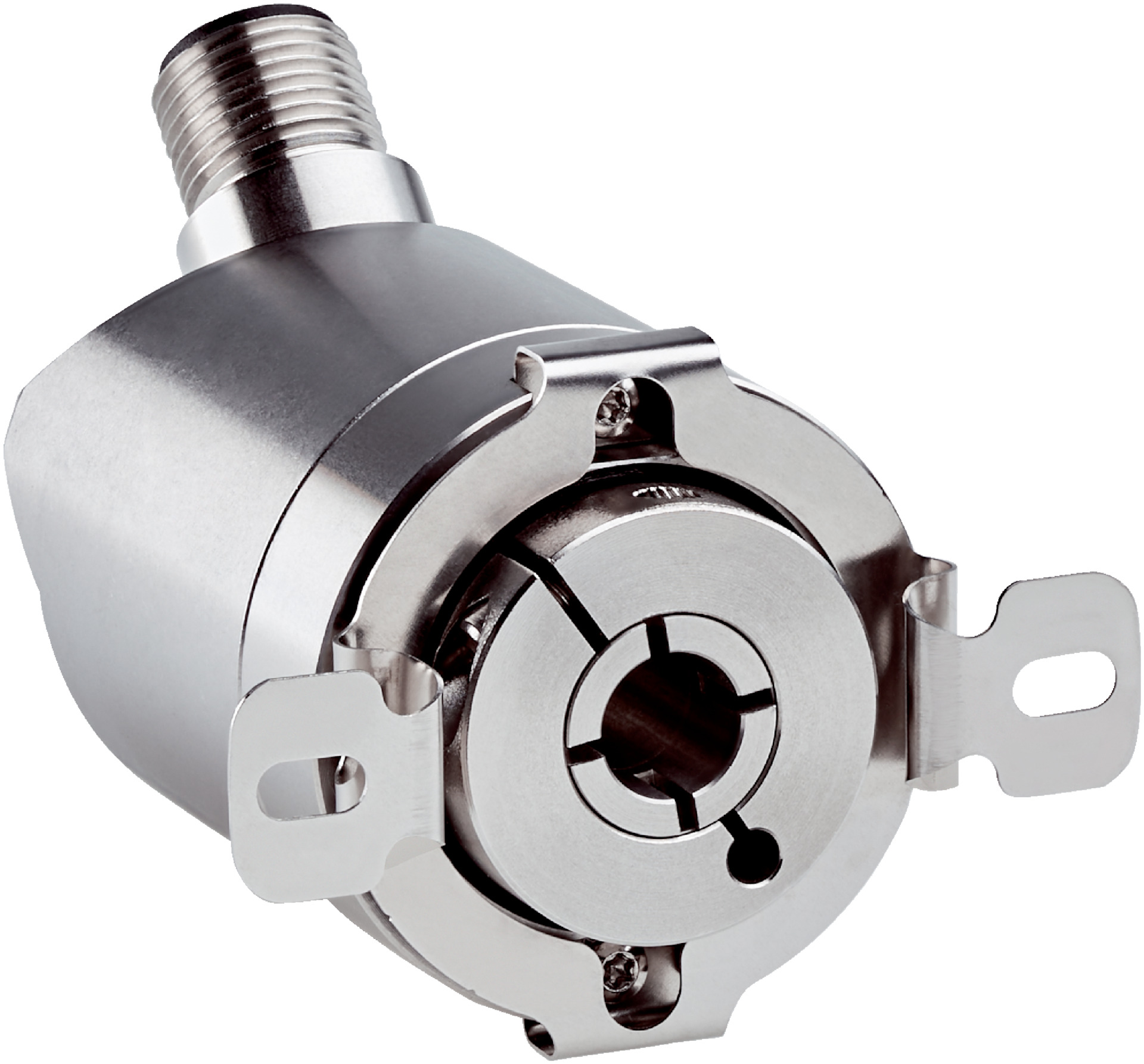

Incremental Rotary Encoder | 8192 Steps per Revolution | IP67 & IP69K Rated | by SICK
The Incremental Rotary Encoder AHS36I-BDAC008192 features a high resolution of 8,192 steps per revolution, making it ideal for precision motion control in industrial automation. With a robust stainless steel design and an IP67/IP69K protection rating, it withstands harsh environments while ensuring reliable performance. Perfect for robotics, machine tool positioning, and conveyor systems, this encoder offers fast initialization and low power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 230 years (EN ISO 13849-1)
- Number of steps per revolution: 8,192 (13 bit)
- Error limits G: 0.35° at 20 °C
- Repeatability standard deviation σr: 0.2° at 20 °C
- Communication interface: SSI
- Initialization time: 100 ms
- Position forming time: 125 µs
- Code type: Gray
- Clock frequency: 2 MHz
- Connection type: Male connector, M12, 8-pin, universal
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 1.5 W (without load)
- Reverse polarity protection: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 10 mm
- Shaft material: Stainless steel 1.4305
- Flange material: Stainless steel 1.4305
- Housing material: Stainless steel 1.4305
- Start up torque: 1 Ncm (+20 °C)
- Operating torque: < 1 Ncm (+20 °C)
- Permissible movement static: ± 0.3 mm radial and axial
- Permissible movement dynamic: ± 0.1 mm radial and axial
- Operating speed: ≤ 6,000 min⁻¹
- Moment of inertia of the rotor: 23 gcm²
- Bearing lifetime: 2.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 and IP69K (IEC 60529)
- Operating temperature range: -40 °C to +100 °C
- Storage temperature range: -40 °C to +100 °C
- Resistance to shocks: 100 g, 6 ms (EN 60068-2-27)
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.2 kg
Key Features
- High resolution with 8,192 steps per revolution (13 bit)
- Robust stainless steel housing and shaft material (1.4305)
- Blind hollow shaft design with front clamp
- SSI communication interface with Gray code
- High protection rating IP67 and IP69K for harsh environments
- Wide operating temperature range from -40 °C to +100 °C
- Reverse polarity protection and low power consumption (≤ 1.5 W)
- High mechanical durability with bearing lifetime of 2.0 x 10^9 revolutions
- Fast initialization time of 100 ms and position forming time of 125 µs
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper electrical connection and mechanical mounting according to manufacturer guidelines.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Machine tool positioning
- Conveyor systems and material handling
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life and reduces waste
- Low power consumption reduces energy usage in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK AHS36I-BDAC008192 incremental encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
