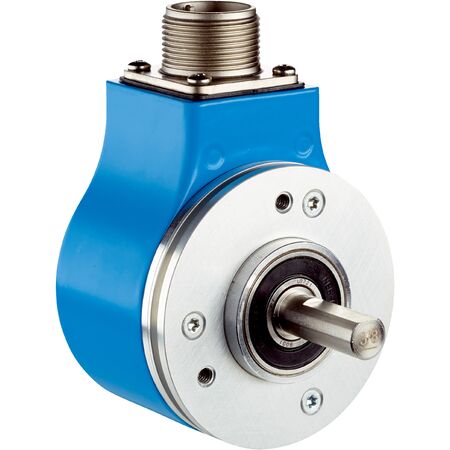

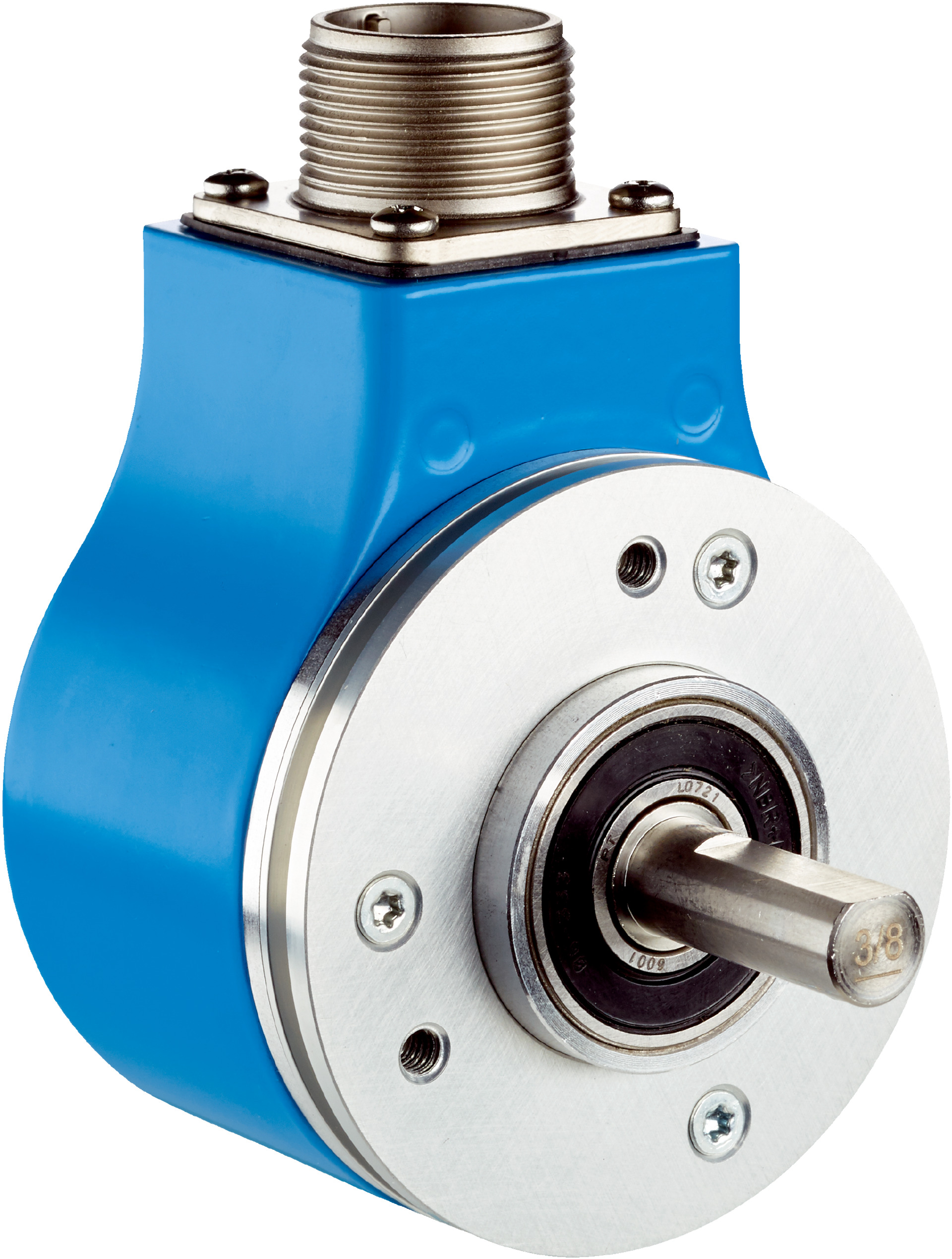

Incremental Rotary Encoder SICK DFS25A-B2CAD000900 | 900 Pulses/Rev | IP65/IP67 Rated | by SICK
The SICK DFS25A-B2CAD000900 incremental rotary encoder delivers high precision with ±0.008° measuring step deviation and 900 pulses per revolution, making it ideal for industrial automation and control systems. Designed for robust performance, it features a solid shaft and servo flange, with an IP65/IP67 rating for harsh environments, ensuring reliability in robotics and manufacturing applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 900
- Measuring step deviation: ±0.008°
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Output frequency: 820 kHz
- Load current: 30 mA
- Supply voltage: 8 to 30 V
- Mechanical design: Solid shaft, Servo flange
- Shaft diameter: 3/8 inch with flat
- Shaft length: 19 mm
- Weight: approximately 0.4 kg
- Operating speed: up to 9,000 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Enclosure rating: IP65 (shaft side), IP67 (housing side)
- Operating temperature range: -30°C to +85°C
- Resistance to shocks: 100 g, 11 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.4 kg
Key Features
- High precision with ±0.03° error limits
- 900 pulses per revolution for detailed measurement
- Robust mechanical design with solid shaft and servo flange
- IP65 rated on shaft side and IP67 on housing side for harsh environments
- Reverse polarity and short-circuit protection
- Operating temperature range from -30°C to +85°C
- High resistance to shock (100 g) and vibration (30 g)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and mechanical mounting according to manufacturer guidelines.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Position and speed measurement in manufacturing
- Machine tool and conveyor systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of 0.7 W enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DFS25A-B2CAD000900 incremental encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
