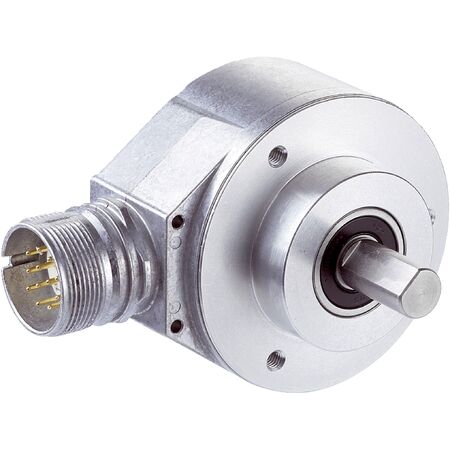

Incremental Rotary Encoder AFM60B-S4LA002048 | 2048 Steps/Rev | IP65/IP67 Protection | by SICK
The Incremental Rotary Encoder AFM60B-S4LA002048 offers high precision with 2,048 steps per revolution and robust IP65/IP67 protection, making it ideal for industrial automation and motion control applications. Designed for reliability, it features a solid shaft with a 10 mm diameter and low operating torque, ensuring seamless integration into various systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 250 years (EN ISO 13849-1)
- Resolution: 2,048 steps per revolution (11 bit), 4,096 revolutions (12 bit)
- Max resolution: 11 bit x 12 bit (2,048 x 4,096)
- Error limits G: 0.05°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI + incremental / HTL
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: ≤ 2 MHz
- Output frequency: ≤ 600 kHz
- Load current: ≤ 30 mA
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Reverse polarity protection: Yes
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Aluminum die cast
- Start up torque: < 0.5 Ncm (+20 °C)
- Operating torque: < 0.3 Ncm (+20 °C)
- Permissible shaft loading: 80 N (radial), 40 N (axial)
- Operating speed: ≤ 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -40 °C to +100 °C
- Storage temperature range: -40 °C to +100 °C
- Resistance to shocks: 70 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 2,048 steps per revolution and 4,096 revolutions
- Solid shaft with 10 mm diameter and flat for secure mounting
- Robust aluminum die cast housing with IP65/IP67 protection
- Low operating torque less than 0.3 Ncm
- Communication via SSI and incremental HTL interface
- Reverse polarity protection and low power consumption (≤ 0.7 W)
- High reliability with MTTFD of 250 years according to EN ISO 13849-1
- Wide operating temperature range from -40 °C to +100 °C
- High resistance to shock (70 g) and vibration (30 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial encoder wiring and configuration to ensure proper operation and safety.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Machine tool positioning
- Conveyor and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage in industrial systems
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60B-S4LA002048 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
