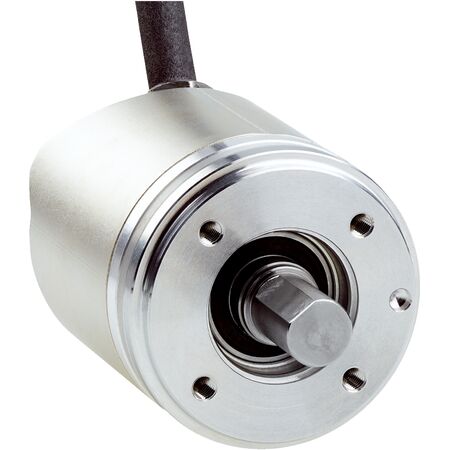

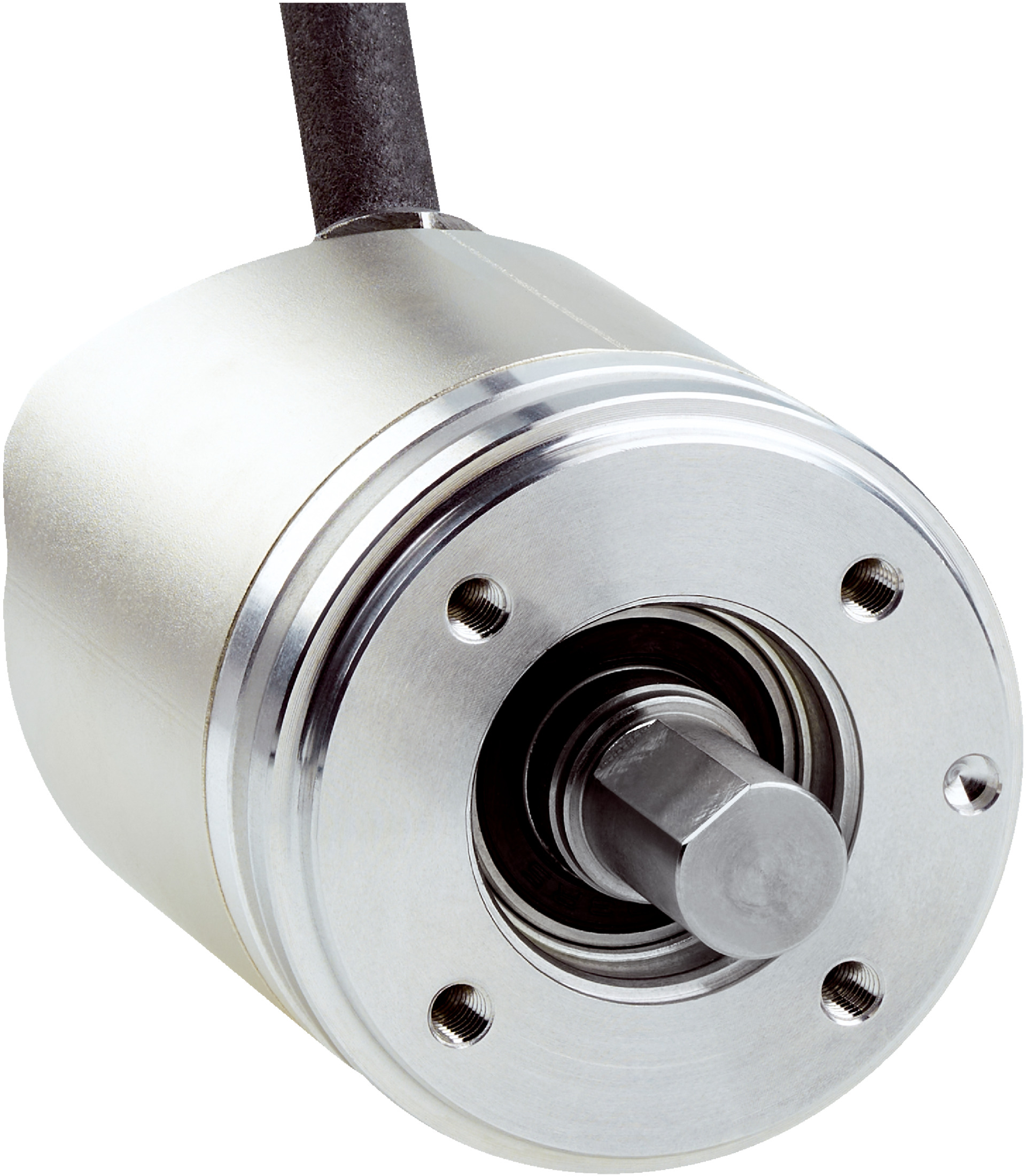

Incremental Rotary Encoder AHM36B-S1QJ012x12 | 4096 Steps/Rev | IO-Link V1.1 | IP65 Rated | by SICK
The AHM36B-S1QJ012x12 incremental rotary encoder delivers high precision with 4,096 steps per revolution and a robust IO-Link V1.1 communication interface. Designed for industrial automation, it excels in applications requiring accurate position and speed measurement, making it ideal for servo motor feedback systems and robotics. With an IP65 rated enclosure, it ensures reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 240 years (EN ISO 13849-1)
- Resolution: 4,096 steps per revolution (12 bit), 4,096 revolutions (12 bit)
- Max resolution: 12 bit x 12 bit (4,096 x 4,096)
- Error limits G: 0.35° at 20 °C
- Repeatability standard deviation σr: 0.25° at 20 °C
- Communication interface: IO-Link V1.1 / COM3 (230.4 kBaud)
- Initialization time: 2 seconds
- Cycle time: ≤ 3.2 ms
- Process data: Position, speed
- Parameterising data: Number of steps per revolution, number of revolutions, PRESET, counting direction, sampling rate for speed calculation, unit for output of speed value
- Status information: Via status LED
- Connection type: Cable, 4-wire, universal, 0.5 m
- Supply voltage: 18 to 30 V
- Power consumption: ≤ 1.5 W
- Reverse polarity protection: Yes
- Mechanical design: Solid shaft, servo flange
- Shaft diameter: 6 mm
- Shaft length: 12 mm
- Shaft characteristics: With flat
- Shaft material: Stainless steel
- Flange material: Aluminum
- Housing material: Zinc
- Start up torque: < 0.5 Ncm at +20 °C
- Operating torque: < 0.5 Ncm at +20 °C
- Permissible shaft loading: 40 N radial, 20 N axial
- Operating speed: ≤ 6,000 min⁻¹
- Moment of inertia of rotor: 2.5 gcm²
- Bearing lifetime: 3.6 x 10^8 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2, EN 61000-6-3 and EN 61131-9
- Enclosure rating: IP65 (IEC 60529)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –20 °C to +70 °C
- Storage temperature range: –40 °C to +100 °C without package
- Resistance to shocks: 100 g, 6 ms (EN 60068-2-27)
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.12 kg
Key Features
- High resolution with 4,096 steps per revolution and 4,096 revolutions
- IO-Link V1.1 communication interface with COM3 (230.4 kBaud)
- Robust mechanical design with solid shaft and servo flange
- IP65 rated enclosure for protection against dust and water
- Low power consumption ≤ 1.5 W with reverse polarity protection
- High reliability with MTTFD of 240 years according to EN ISO 13849-1
- Fast initialization time of 2 seconds and cycle time ≤ 3.2 ms
- Resistance to shocks up to 100 g and vibration up to 20 g
