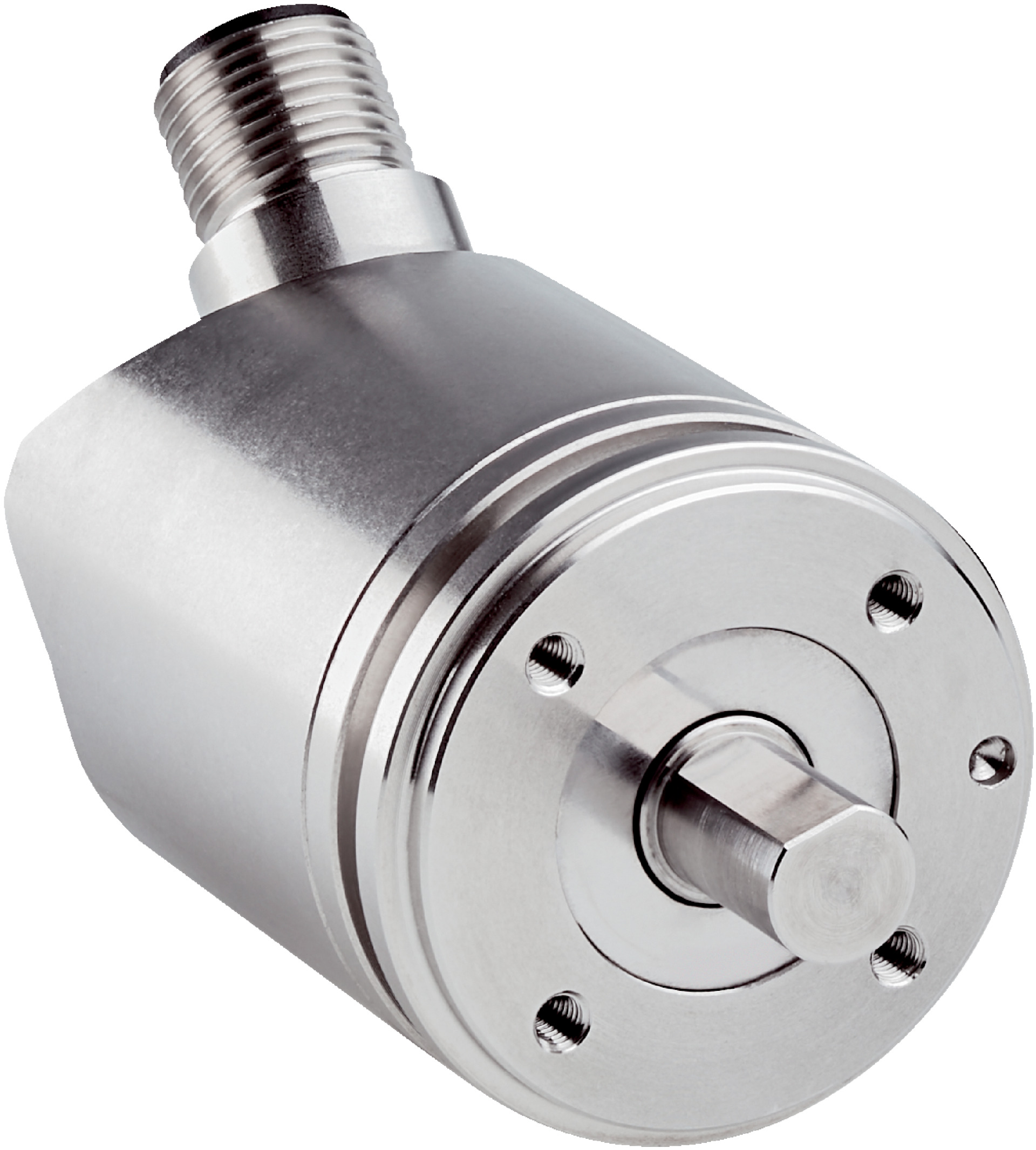

Incremental Rotary Encoder AHM36I | 16,384 Steps/Rev | CANopen Interface | IP67 & IP69K Rated | by SICK
The AHM36I incremental rotary encoder delivers high precision with 16,384 steps per revolution and a robust CANopen communication interface. Designed for industrial automation, it operates in extreme temperatures from -40°C to +85°C, making it perfect for robotics and process control systems. With a durable stainless steel housing and low power consumption, this encoder ensures reliability and efficiency in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD (mean time to dangerous failure): 270 years (EN ISO 13849-1)
- Resolution: 16,384 steps per revolution (14 bit), 4,096 revolutions (12 bit)
- Error limits G: 0.35° at 20°C
- Repeatability standard deviation σr: 0.2° at 20°C
- Communication interface: CANopen CiA DS-301 V4.02, DSP-305 LSS, Encoder Profile CIA DS-406 V3.2 Class C2
- Address setting: 0 to 127, default 5
- Data transmission rate: 20 kbit/s to 1,000 kbit/s, default 125 kbit/s
- Initialization time: 2 seconds
- Process data: Position, speed, temperature
- Supply voltage: 10 to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Connection type: Male M12 5-pin connector
- Mechanical design: Solid shaft with servo flange, shaft diameter 1/4 inch, shaft length 12 mm with flat
- Materials: Stainless steel 1.4305 for shaft, flange, and housing
- Operating speed: ≤ 6,000 min⁻¹
- Operating temperature range: -40°C to +85°C
- Enclosure rating: IP67 and IP69K
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.2 kg
Key Features
- High resolution with 16,384 steps per revolution and 4,096 revolutions
- CANopen communication interface with CiA DS-301 V4.02 and DSP-305 LSS support
- Robust stainless steel housing and shaft with IP67 and IP69K protection
- Wide operating temperature range from -40°C to +85°C
- Low power consumption ≤ 1.5 W with reverse polarity protection
- High mechanical durability with bearing lifetime of 3.6 x 10^8 revolutions
- Safety-related parameter MTTFD of 270 years according to EN ISO 13849-1
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with CANopen systems and industrial encoder mounting to ensure proper alignment and electrical connections.
Applications
- Industrial automation for precise position and speed measurement
- Robotics requiring high resolution and reliability
- Machine tools and servo drives
- Process control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life and reduces waste
- Low power consumption contributes to energy efficiency in industrial systems
- High reliability reduces downtime and maintenance frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

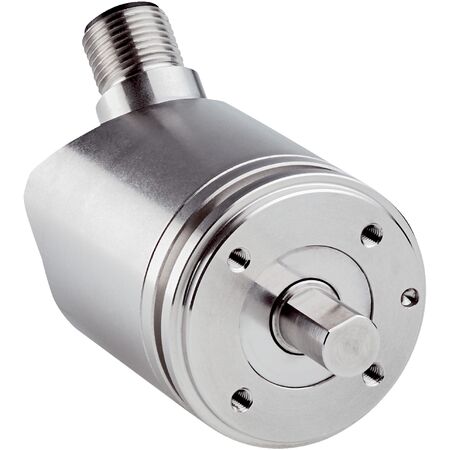

The SICK AHM36I-SACC014x12 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
