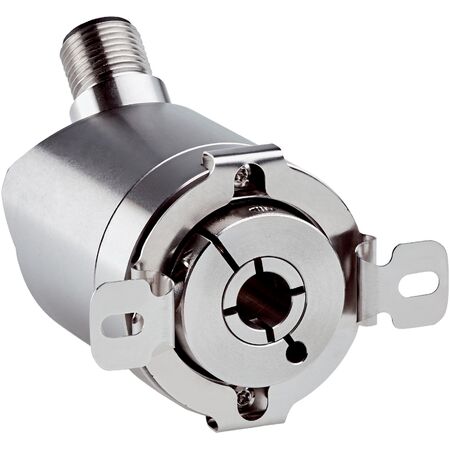

Incremental Rotary Encoder AHM36I-BAJC014X12 | 16,384 Steps/Rev | IP67 & IP69K Rated | by SICK

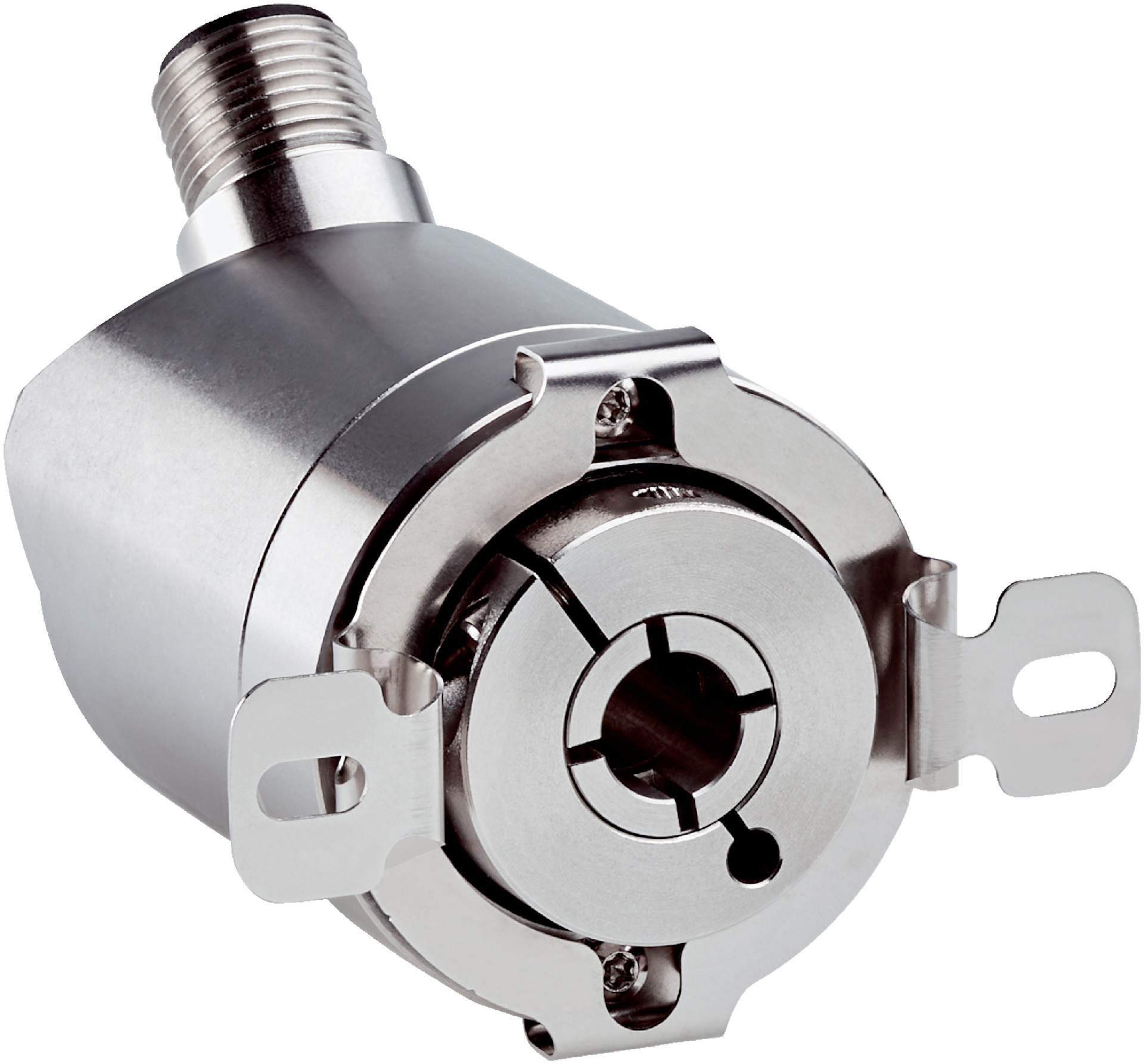

The AHM36I-BAJC014X12 incremental rotary encoder delivers high precision with 16,384 steps per revolution, making it ideal for industrial automation and robotics. Built with a robust stainless steel housing and rated IP67/IP69K for dust and water protection, this encoder ensures reliable performance in demanding environments. Its SAE J1939 communication interface allows for seamless integration into vehicle and machinery control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 270 years (EN ISO 13849-1)
- Resolution: 16,384 steps per revolution (14 bit), 4,096 revolutions (12 bit)
- Error limits: 0.35° at 20 °C
- Repeatability standard deviation: 0.2° at 20 °C
- Communication interface: SAE J1939 with baud rates 125, 250, 500 kbit/s
- Address setting range: 0 to 253, default 224
- Initialization time: 2 seconds
- Process data: Position, speed, temperature
- Connection type: Male M12 5-pin connector
- Supply voltage: 10 to 30 V
- Power consumption: ≤ 1.5 W
- Mechanical design: Blind hollow shaft, 6 mm diameter with front clamp
- Materials: Stainless steel 1.4305 for shaft, flange, and housing
- Operating torque: < 1 Ncm at 20 °C
- Operating speed: up to 6,000 min⁻¹
- Enclosure rating: IP67 and IP69K
- Operating temperature range: -40 °C to +85 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.2 kg
Key Features
- High resolution with 16,384 steps per revolution and 4,096 revolutions
- Robust stainless steel housing and shaft for durability
- IP67 and IP69K rated for protection against dust and water
- Supports SAE J1939 communication interface with configurable baud rates
- Reverse polarity protection and low power consumption (≤ 1.5 W)
- High mechanical reliability with bearing lifetime of 3.6 x 10^8 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and CAN bus systems to ensure proper connection and configuration.
Applications
- Industrial automation for precise position and speed measurement
- Robotics requiring high-resolution rotary encoders
- Vehicle and machinery control systems using CAN bus communication
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Low power consumption contributes to energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AHM36I-BAJC014X12 incremental encoder is available for immediate purchase, ideal for industrial automation and vehicle control applications requiring high precision and robust communication.
