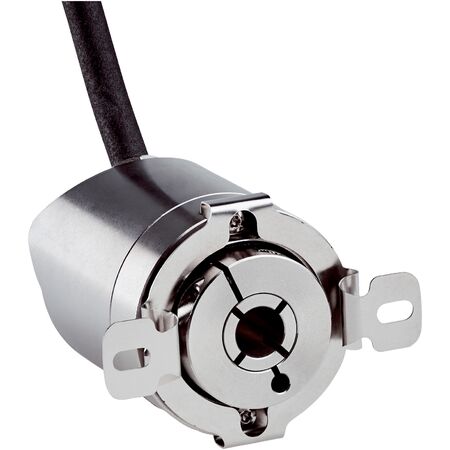

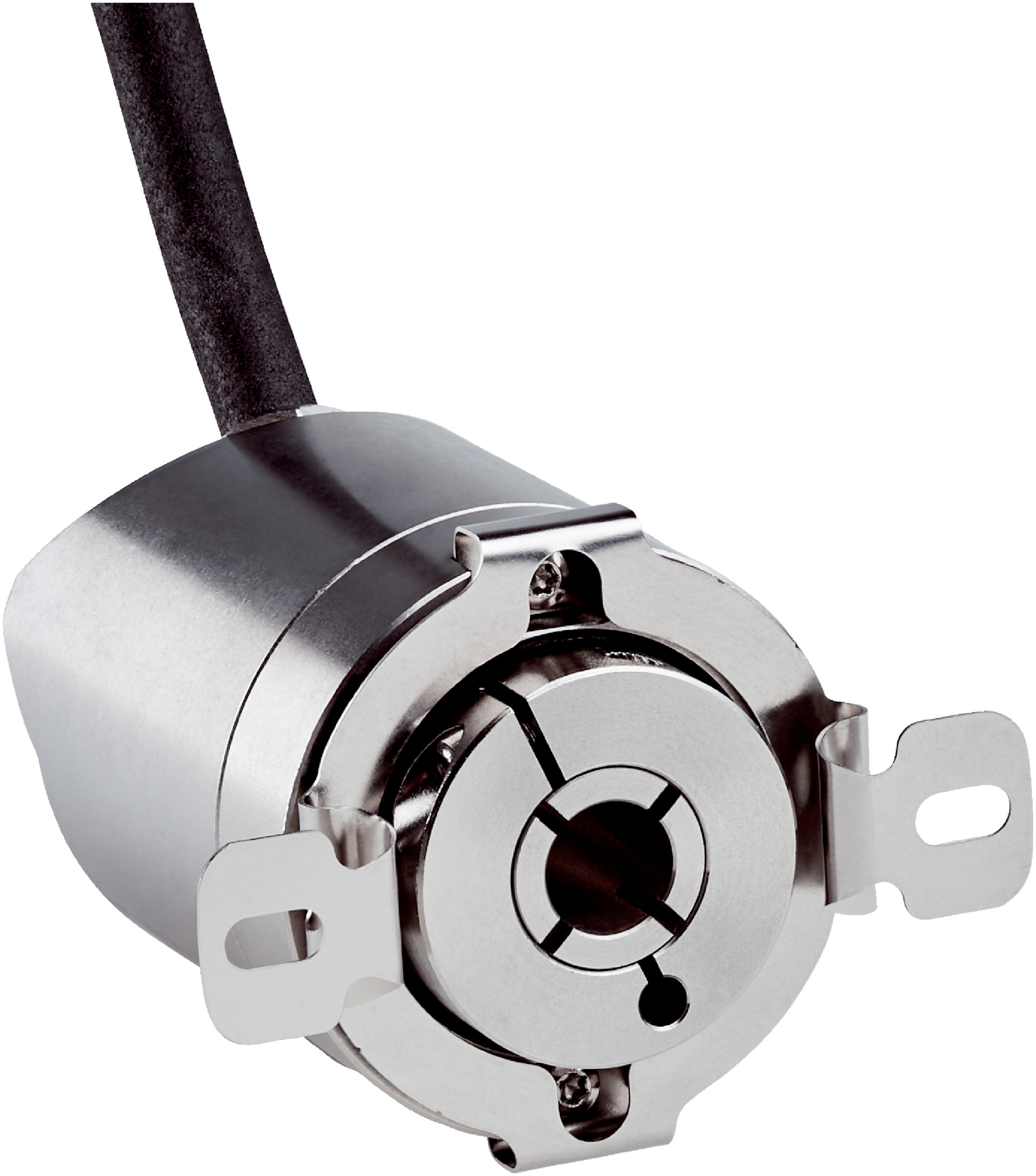

Incremental Rotary Encoder AHM36I-BBPJ014x12 | 16,384 Steps/Rev | IP67 & IP69K Rated | by SICK
The AHM36I-BBPJ014x12 incremental rotary encoder delivers high precision with a maximum resolution of 16,384 steps per revolution, making it ideal for industrial automation and control systems. With robust stainless steel housing and an IP67/IP69K rating, it ensures reliable performance in harsh environments. Designed for easy integration, this encoder is perfect for robotics, machine tool positioning, and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 230 years (EN ISO 13849-1)
- Max resolution: 16,384 steps/revolution (14 bit) x 4,096 revolutions (12 bit)
- Error limits: 0.35° at 20°C
- Repeatability standard deviation: 0.2° at 20°C
- Communication interface: SSI
- Initialization time: 100 ms
- Position forming time: 125 µs
- Code type: Gray or binary, configurable
- Clock frequency: 2 MHz
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 1.5 W (without load)
- Connection type: 8-wire cable, 0.5 m
- Shaft diameter: 8 mm
- Operating speed: ≤ 6,000 min⁻¹
- Operating temperature range: -40°C to +100°C
- Enclosure rating: IP67 and IP69K
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.2 kg
Key Features
- High resolution with 16,384 steps per revolution and 4,096 revolutions
- Robust stainless steel housing and shaft materials
- Blind hollow shaft with front clamp for secure mounting
- IP67 and IP69K rated for dust and water protection
- Wide operating temperature range from -40°C to +100°C
- Reverse polarity protection and low power consumption (≤ 1.5 W)
- High mechanical durability with bearing lifetime of 2.0 x 10^9 revolutions
- Fast position forming time of 125 µs
- Configurable code type (Gray or binary) and counting direction via programming tool
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper alignment and connection.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Machine tool positioning
- Conveyor systems
- Safety-related monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel construction extends product lifespan, reducing waste
- Low power consumption minimizes energy usage
- High reliability reduces downtime and maintenance needs
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AHM36I-BBPJ014x12 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-related applications.
