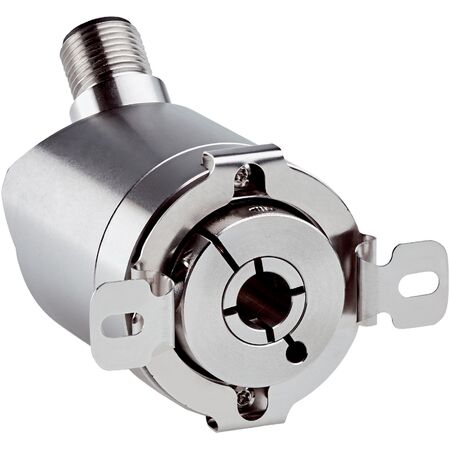

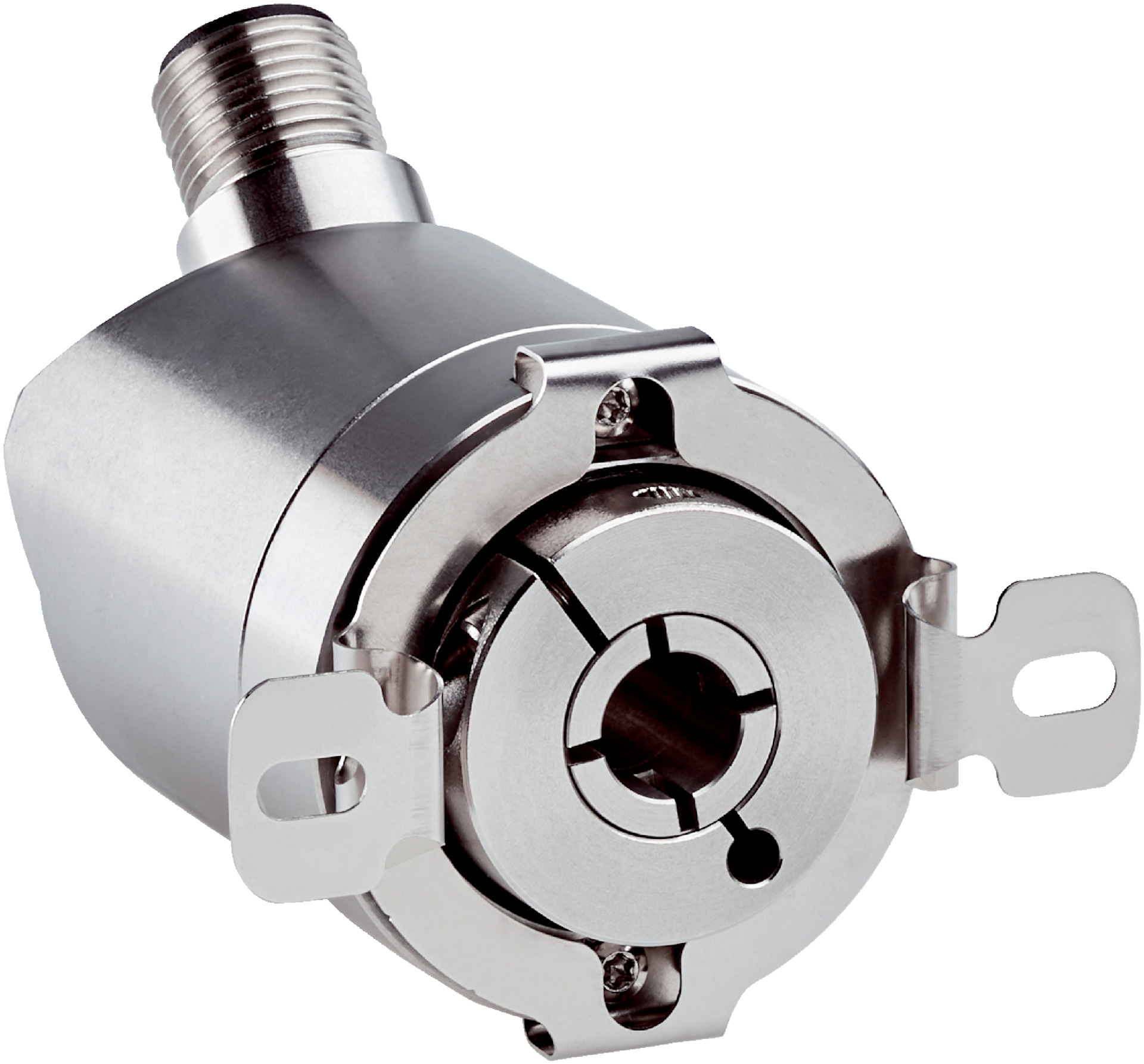

Incremental Rotary Encoder AHM36I-BCPC014x12 | 16,384 Steps/Rev | IP67 & IP69K Rated | by SICK
The AHM36I-BCPC014x12 incremental rotary encoder delivers high precision with 16,384 steps per revolution, making it ideal for industrial automation and robotics. With a robust stainless steel housing, it operates in extreme temperatures from -40 °C to +100 °C and features an SSI communication interface for fast position feedback. Perfect for machine tools and conveyor systems, this encoder ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 230 years (EN ISO 13849-1)
- Resolution: 16,384 steps per revolution (14 bit), 4,096 revolutions (12 bit)
- Error limits G: 0.35° at 20 °C
- Repeatability standard deviation σr: 0.2° at 20 °C
- Communication interface: SSI
- Initialization time: 100 ms
- Position forming time: 125 µs
- Code type: Gray, binary
- Clock frequency: 2 MHz
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 1.5 W (without load)
- Connection type: Male connector, M12, 8-pin
- Mechanical design: Blind hollow shaft, 3/8 inch diameter
- Operating speed: ≤ 6,000 min⁻¹
- Operating temperature range: -40 °C to +100 °C
- Enclosure rating: IP67 and IP69K
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.2 kg
Key Features
- High resolution with 16,384 steps per revolution and 4,096 revolutions
- Robust stainless steel housing and shaft for durability
- SSI communication interface with fast position forming time of 125 µs
- Wide operating temperature range from -40 °C to +100 °C
- IP67 and IP69K rated for protection against dust and water
- Reverse polarity protection and low power consumption (≤ 1.5 W)
- High mechanical reliability with bearing lifetime of 2.0 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial encoder wiring and configuration to ensure proper operation and safety.
Applications
- Industrial automation for precise position measurement
- Robotics for accurate motion control
- Machine tools requiring high resolution feedback
- Conveyor systems and packaging machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's warranty policy for details.
Available Now
The SICK AHM36I-BCPC014x12 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
