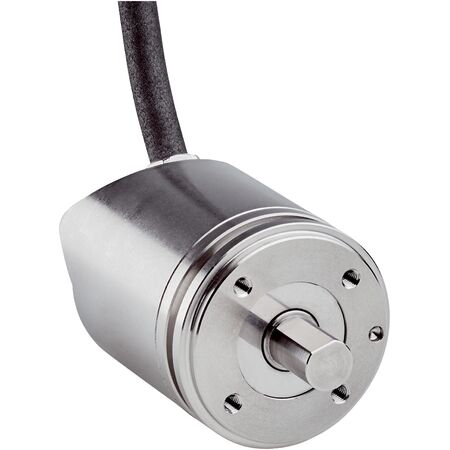

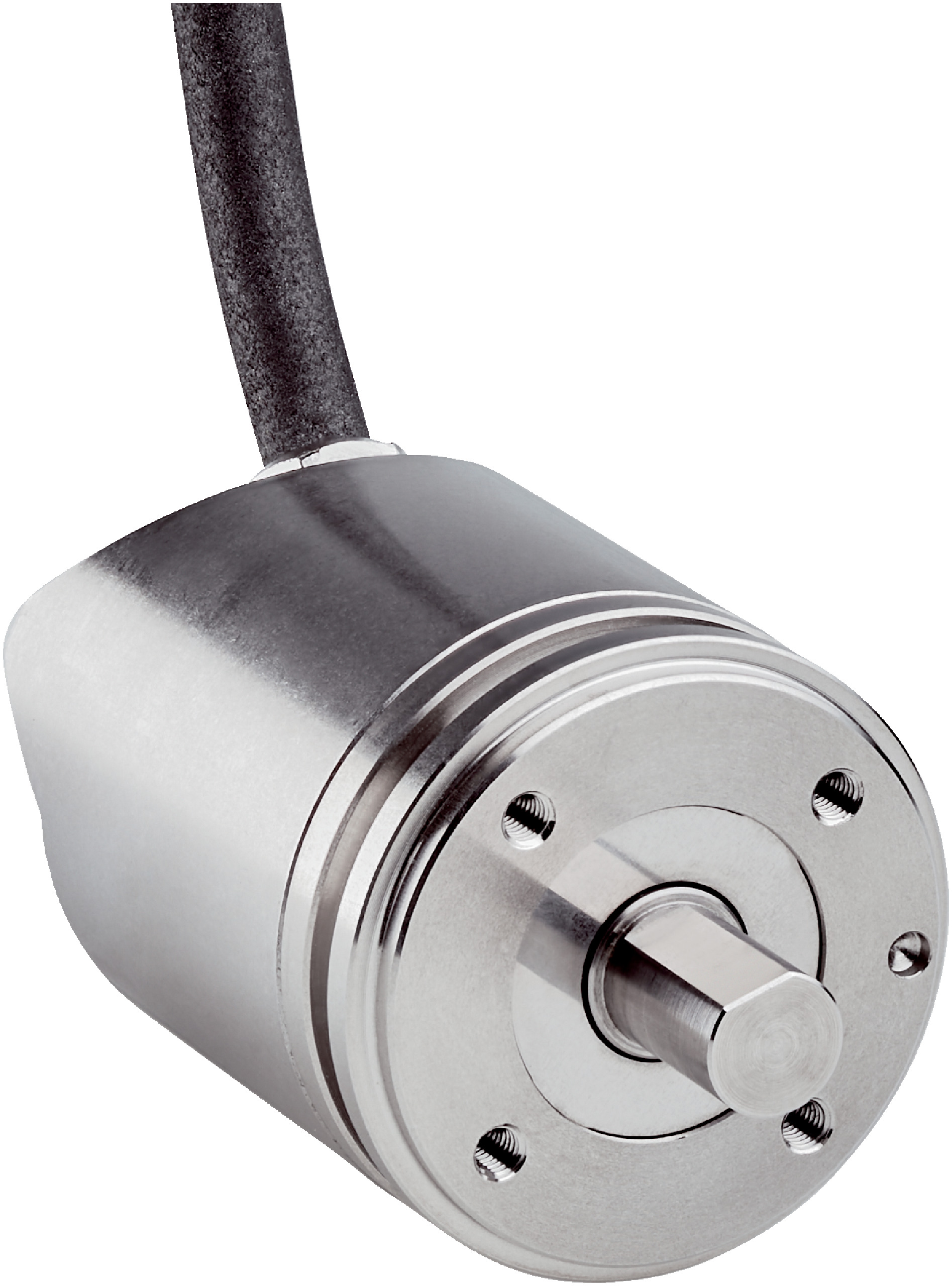

Incremental Rotary Encoder AHM36I-S1CJ014x12 | 16,384 Steps/Rev | CANopen Interface | IP67 & IP69K Protection | by SICK
The AHM36I-S1CJ014x12 incremental rotary encoder is designed for industrial automation, offering high resolution with 16,384 steps per revolution and a robust CANopen communication interface. With an impressive operating temperature range of -40°C to +85°C and IP67/IP69K protection, this encoder ensures reliability and precision in demanding environments, making it ideal for robotics, machine tools, and process control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 270 years (EN ISO 13849-1)
- Max resolution: 16,384 steps/rev x 4,096 revolutions (14 bit x 12 bit)
- Error limits G: 0.35° at 20°C
- Repeatability standard deviation σr: 0.2° at 20°C
- Communication: CANopen CiA DS-301 V4.02, DSP-305 LSS, Encoder Profile CIA DS-406 V3.2 Class C2
- Address range: 0 to 127, default 5
- Baud rate: 20 kbit/s to 1,000 kbit/s, default 125 kbit/s
- Initialization time: 2 seconds
- Process data: Position, speed, temperature
- Power supply: 10 to 30 V
- Power consumption: ≤ 1.5 W (no load)
- Mechanical design: Solid shaft with servo flange, shaft diameter 6 mm, length 12 mm
- Operating speed: ≤ 6,000 min⁻¹
- Protection rating: IP67 and IP69K
- Operating temperature: -40°C to +85°C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.2 kg
Key Features
- High resolution with 16,384 steps per revolution and 4,096 revolutions
- CANopen communication interface with multiple diagnostic data
- Robust stainless steel housing and shaft with IP67 and IP69K protection
- Wide operating temperature range from -40°C to +85°C
- Low power consumption ≤ 1.5 W with reverse polarity protection
- High mechanical durability with bearing lifetime of 3.6 x 10^8 revolutions
- Fast initialization time of 2 seconds
- Supports electronic cams with 2 channels and 8 cams each
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for precise position and speed measurement
- Robotics requiring high resolution and reliability
- Machine tools and servo drives
- Process control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life and reduces waste
- Low power consumption contributes to energy efficiency in industrial systems
- High reliability reduces downtime and maintenance needs
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AHM36I-S1CJ014x12 incremental encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
