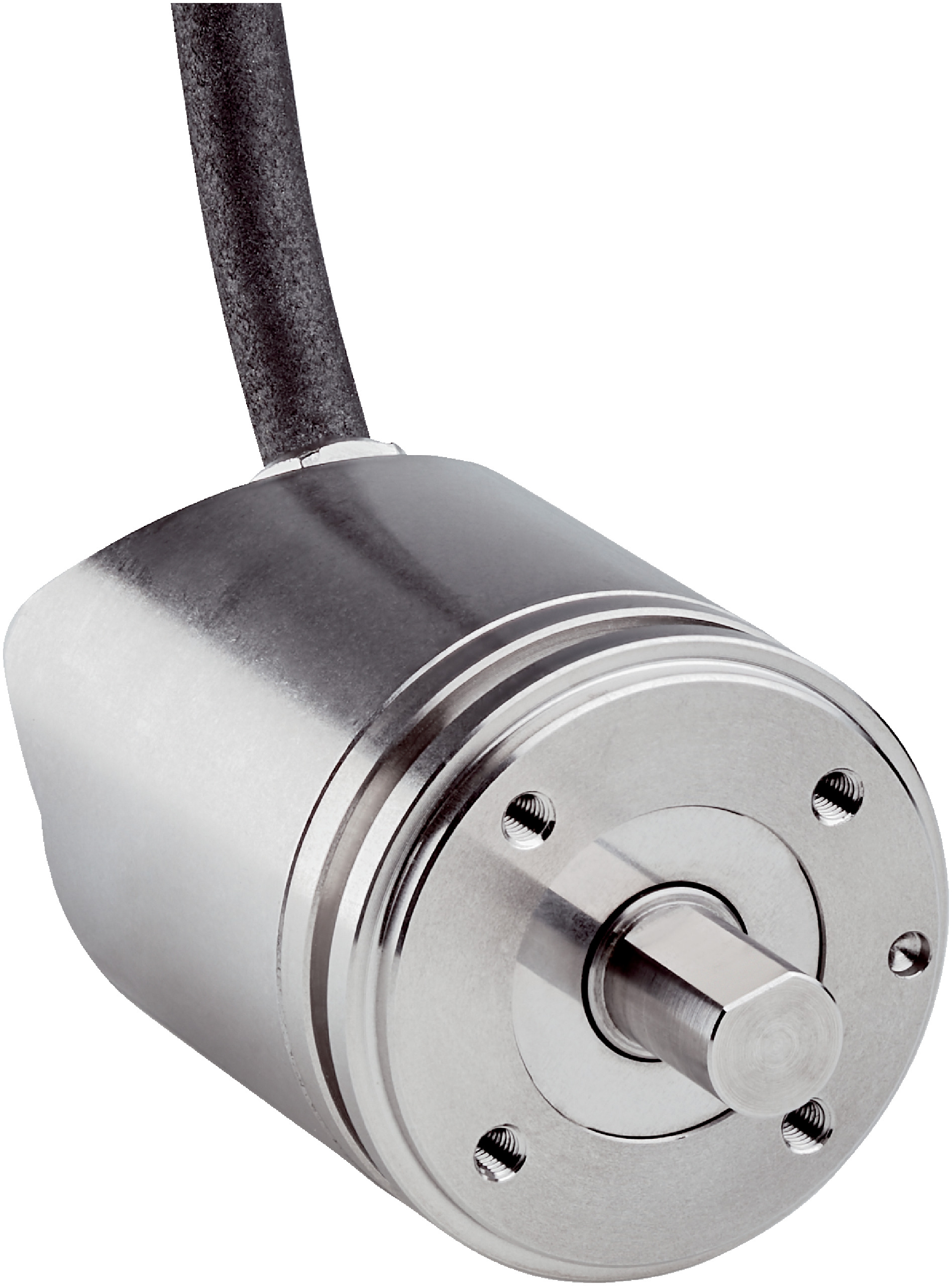

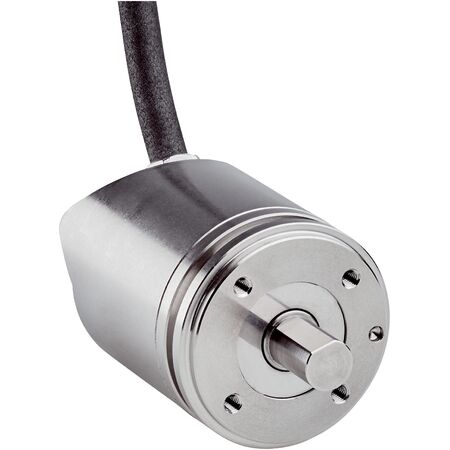

Incremental Rotary Encoder AHM36I-S1PK014x12 | 16,384 Steps/Rev | IP67 & IP69K Rated | by SICK
The AHM36I-S1PK014x12 incremental rotary encoder delivers high precision with a maximum resolution of 16,384 steps per revolution and 4,096 revolutions. Designed for industrial automation and robotics, it features robust stainless steel housing, IP67 and IP69K ratings for dust and water protection, and a fast position forming time of 125 µs. Ideal for machine tools and conveyor systems, this encoder ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 230 years (EN ISO 13849-1)
- Max resolution: 16,384 steps/rev x 4,096 revolutions (14 bit x 12 bit)
- Error limits G: 0.35° at 20 °C
- Repeatability standard deviation σr: 0.2° at 20 °C
- Communication interface: SSI
- Initialization time: 100 ms
- Position forming time: 125 µs
- Code type: Gray, binary
- Clock frequency: 2 MHz
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 1.5 W (without load)
- Mechanical design: Solid shaft, servo flange
- Shaft diameter: 6 mm with flat
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 3.6 x 10^8 revolutions
- Enclosure rating: IP67 and IP69K
- Operating temperature range: –40 °C to +100 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.2 kg
Key Features
- High resolution with 16,384 steps per revolution and 4,096 revolutions
- Robust stainless steel housing and shaft for durability
- IP67 and IP69K rated for protection against dust and water
- SSI communication interface with fast position forming time of 125 µs
- Reverse polarity protection and low power consumption (≤ 1.5 W)
- Wide operating temperature range from –40 °C to +100 °C
- High resistance to shock (100 g) and vibration (20 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper connection and alignment.
Applications
- Industrial automation for precise position measurement
- Robotics for accurate motion control
- Machine tools requiring high resolution feedback
- Conveyor systems and packaging machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction extends product life and reduces waste
- Low power consumption contributes to energy efficiency
- High resistance to environmental factors reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AHM36I-S1PK014x12 incremental encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
