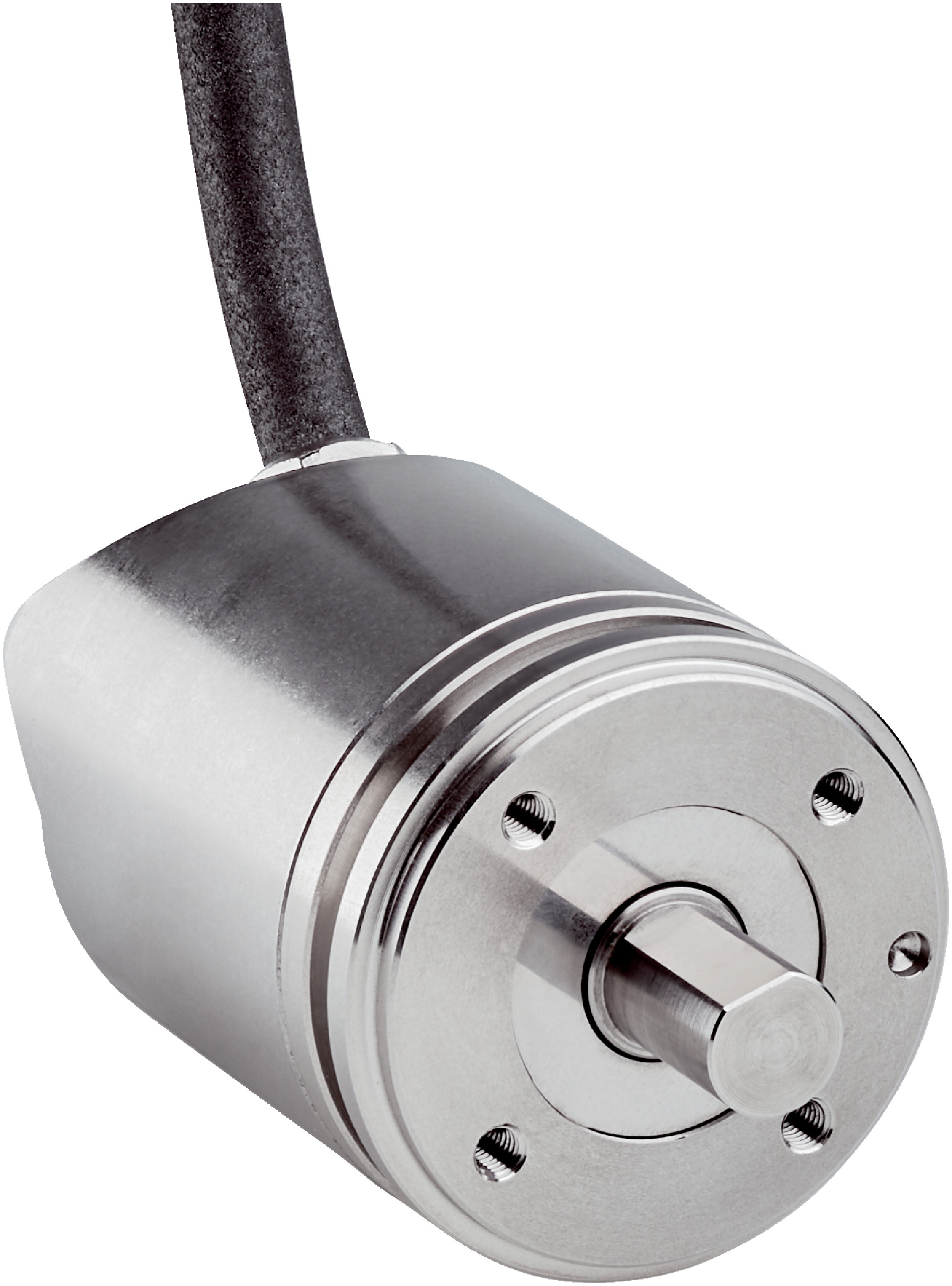

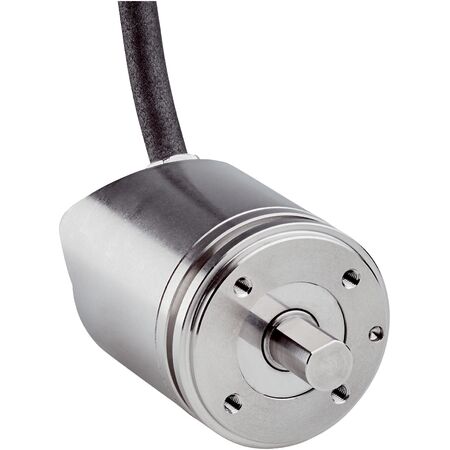

Incremental Rotary Encoder AHM36I-S1QJ014x12 | 16,384 Steps/Rev | IO-Link V1.1 | IP67 & IP69K Rated | by SICK
The AHM36I-S1QJ014x12 incremental rotary encoder delivers high precision with a maximum resolution of 16,384 steps per revolution and 4,096 revolutions. Designed for industrial automation, it features robust IP67 and IP69K protection, making it ideal for harsh environments. With IO-Link V1.1 communication, this encoder provides comprehensive diagnostics and is perfect for servo motor feedback systems and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 240 years (EN ISO 13849-1)
- Max resolution: 16,384 steps/rev x 4,096 revolutions (14 bit x 12 bit)
- Error limits: 0.35° at 20°C
- Repeatability standard deviation: 0.2° at 20°C
- Communication: IO-Link V1.1 / COM3 (230.4 kBaud)
- Initialization time: 2 seconds
- Cycle time: ≤ 3.2 ms
- Supply voltage: 18 to 30 V
- Power consumption: ≤ 1.5 W
- Connection: 4-wire cable, 0.5 m
- Shaft diameter: 6 mm with flat
- Operating speed: ≤ 6,000 min⁻¹
- Permissible shaft loading: 40 N radial, 20 N axial
- Enclosure rating: IP67 and IP69K
- Operating temperature: -40°C to +85°C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.2 kg
Key Features
- High resolution with 16,384 steps per revolution and 4,096 revolutions
- IO-Link V1.1 communication interface with COM3 (230.4 kBaud)
- Robust stainless steel housing and shaft with IP67 and IP69K protection
- Wide operating temperature range from -40°C to +85°C
- Low start-up and operating torque (≤ 1 Ncm)
- Comprehensive diagnostics and status information via IO-Link
- High mechanical durability with bearing lifetime of 3.6 x 10^8 revolutions
- Resistance to shocks up to 100 g and vibration up to 20 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and industrial encoder mounting to ensure proper alignment and electrical connection.
Applications
- Industrial automation for precise position and speed measurement
- Servo motor feedback systems
- Robotics and motion control
- Packaging and material handling machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction extends product life and reduces waste
- Low power consumption (≤ 1.5 W) supports energy-efficient operation
- High reliability reduces downtime and maintenance needs
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AHM36I-S1QJ014x12 incremental encoder is available for immediate purchase, ideal for industrial automation and motion control applications.
