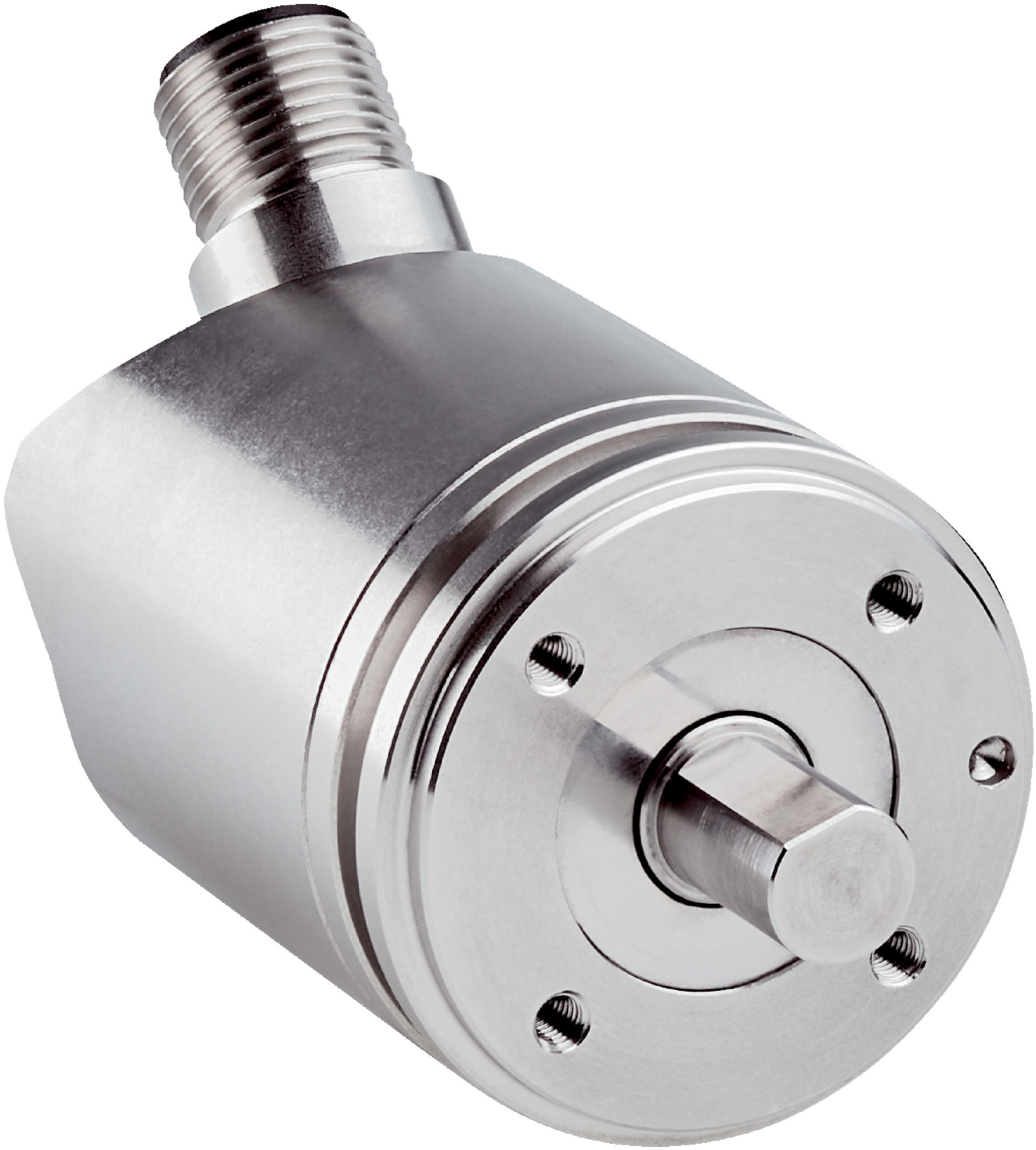

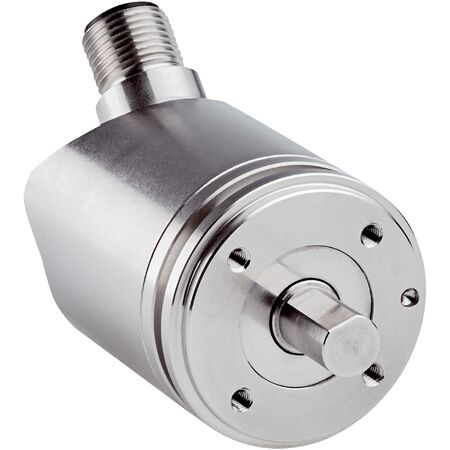

Incremental Rotary Encoder AHM36I-S2CC014x12 | 16,384 Steps/Rev | IP67 & IP69K Rated | by SICK
The AHM36I-S2CC014x12 incremental rotary encoder delivers high precision with 16,384 steps per revolution, making it ideal for industrial automation and robotics. With a robust stainless steel design and IP67/IP69K protection, it operates reliably in harsh environments, ensuring accurate position and speed measurement for servo motor feedback systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 270 years (EN ISO 13849-1)
- Resolution: 16,384 steps per revolution (14 bit), 4,096 revolutions (12 bit)
- Error limits: 0.35° at 20°C
- Repeatability standard deviation: 0.2° at 20°C
- Communication: CANopen CiA DS-301 V4.02, DSP-305 LSS, Encoder Profile CIA DS-406 V3.2 Class C2
- Address setting: 0 to 127, default 5
- Data transmission rate: 20 kbit/s to 1,000 kbit/s, default 125 kbit/s
- Initialization time: 2 seconds
- Process data: Position, speed, temperature
- Power supply: 10 to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Connection: Male M12 5-pin connector
- Mechanical design: Solid shaft with servo flange, shaft diameter 10 mm, length 12 mm with flat
- Materials: Stainless steel 1.4305 for shaft, flange, and housing
- Operating speed: ≤ 6,000 min⁻¹
- Operating temperature: -40°C to +85°C
- Enclosure rating: IP67 and IP69K
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.2 kg
Key Features
- High resolution with 16,384 steps per revolution and 4,096 revolutions
- CANopen communication interface with multiple diagnostic and status features
- Robust stainless steel housing and shaft with IP67 and IP69K protection
- Wide operating temperature range from -40°C to +85°C
- Low power consumption of ≤ 1.5 W with reverse polarity protection
- High mechanical durability with bearing lifetime of 3.6 x 10^8 revolutions
- Fast initialization time of 2 seconds
Professional Installation Requirements
- Installation by qualified personnel with experience in industrial encoder systems and CANopen network configuration is recommended to ensure proper setup and safety.
Applications
- Industrial automation for precise position and speed measurement
- Robotics requiring high resolution and reliability
- Servo motor feedback systems
- Machine tool control and monitoring
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption contributes to energy efficiency in industrial systems
- High reliability reduces downtime and maintenance needs
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AHM36I-S2CC014x12 incremental encoder is available for immediate purchase, ideal for industrial automation and servo motor feedback applications.
