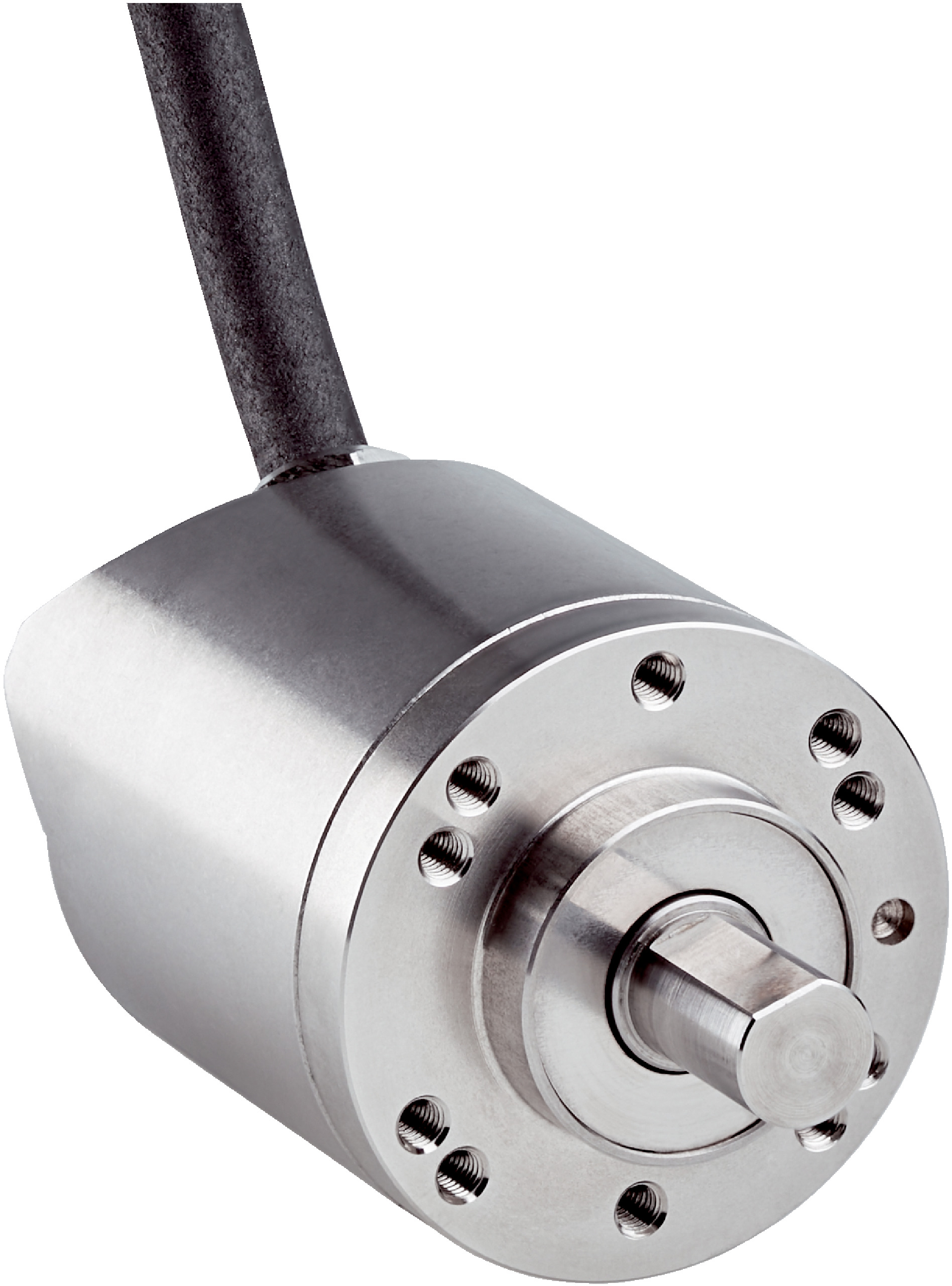

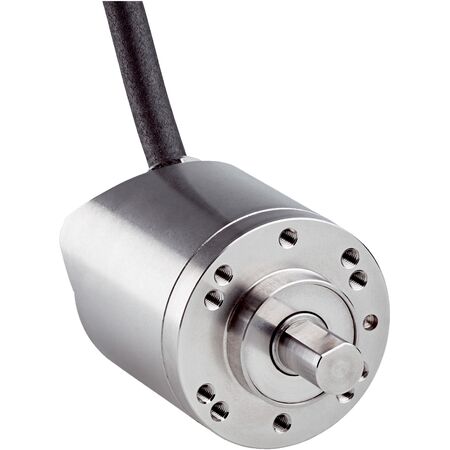

Incremental Rotary Encoder AHM36I-S3QK014x12 | 16,384 Steps/Rev | IO-Link V1.1 | IP67 & IP69K Rated | by SICK
The AHM36I-S3QK014x12 incremental rotary encoder is designed for precise position and speed measurement in industrial automation. With a high resolution of 16,384 steps per revolution and robust IP67/IP69K protection, it ensures reliable performance in harsh environments. Ideal for machine tool feedback systems and robotics, this encoder features a fast initialization time of just 2 seconds and low power consumption, making it a perfect choice for energy-efficient applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 240 years (EN ISO 13849-1)
- Max resolution: 16,384 steps per revolution (14 bit) x 4,096 revolutions (12 bit)
- Error limits G: 0.35° at 20 °C
- Repeatability standard deviation σr: 0.2° at 20 °C
- Communication interface: IO-Link V1.1 / COM3 (230.4 kBaud)
- Initialization time: 2 seconds
- Cycle time: ≤ 3.2 ms
- Process data includes position, speed, electronic cams, limit values, linear position and speed
- Connection type: 4-wire cable, 1.5 m length
- Supply voltage: 18 to 30 V
- Power consumption: ≤ 1.5 W
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 6 mm with flat
- Operating speed: ≤ 6,000 min⁻¹
- Operating temperature range: -40 °C to +85 °C
- Enclosure rating: IP67 and IP69K
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.2 kg
Key Features
- High resolution with 16,384 steps per revolution and 4,096 revolutions
- IO-Link V1.1 communication interface with COM3 (230.4 kBaud)
- Robust stainless steel housing and shaft with IP67 and IP69K protection
- Low power consumption ≤ 1.5 W with reverse polarity protection
- Fast initialization time of 2 seconds and cycle time ≤ 3.2 ms
- Comprehensive diagnostics and status information via LED
- High mechanical durability with bearing lifetime of 3.6 x 10^8 revolutions
- Operating temperature range from -40 °C to +85 °C
- Resistance to shocks (100 g, 6 ms) and vibration (20 g, 10 Hz to 2000 Hz)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and electrical safety standards to ensure proper connection and configuration.
Applications
- Industrial automation for precise position and speed measurement
- Machine tool feedback systems
- Robotics and motion control
- Conveyor and material handling systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel construction extends product life and reduces waste
- Low power consumption contributes to energy efficiency in industrial systems
- Robust design minimizes maintenance and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AHM36I-S3QK014x12 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
