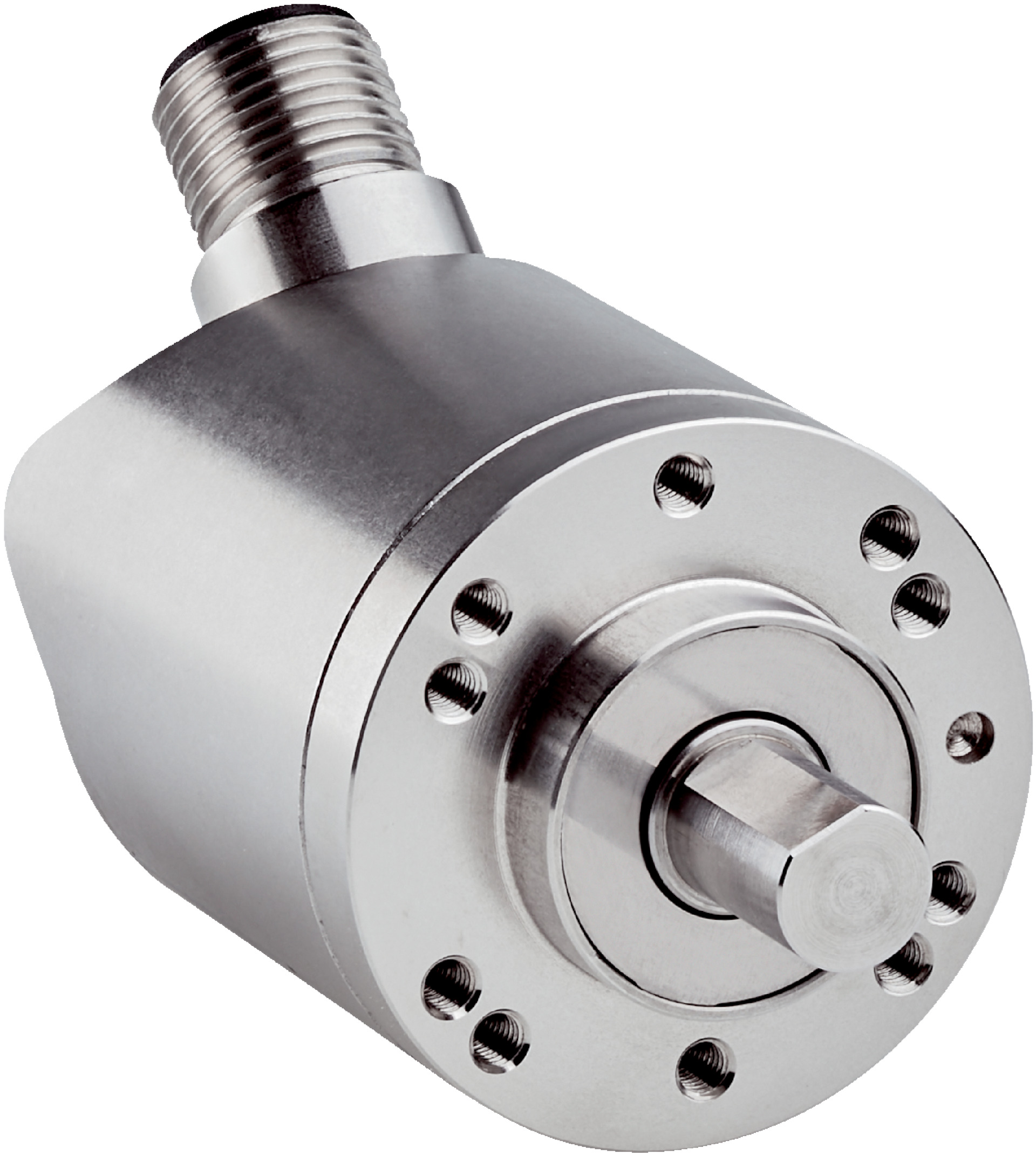

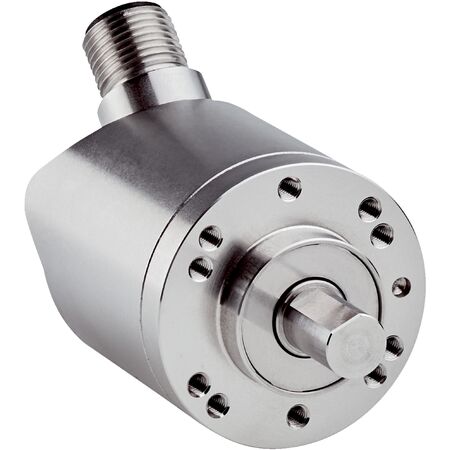

Incremental Rotary Encoder AHM36I-S7AC008x12 | 256 Steps/Rev | IP67 & IP69K Rated | by SICK
The AHM36I-S7AC008x12 incremental rotary encoder delivers high precision with a maximum resolution of 256 steps per revolution and 4,096 revolutions. Designed for industrial automation and robotics, it features robust stainless steel housing, low power consumption, and an IP67/IP69K rating for dust and water protection. Ideal for applications requiring accurate position measurement and motion control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Mean time to dangerous failure (MTTFD): 230 years (EN ISO 13849-1)
- Max resolution: 256 steps/rev x 4,096 revolutions (8 bit x 12 bit)
- Error limits: 0.35° at 20 °C
- Repeatability standard deviation: 0.2° at 20 °C
- Communication interface: SSI with Gray code
- Initialization time: 100 ms
- Position forming time: 125 µs
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 1.5 W (without load)
- Connection: Male M12, 8-pin connector
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 3/8 inch with flat
- Operating temperature range: -40 °C to +100 °C
- Enclosure rating: IP67 and IP69K
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.2 kg
Key Features
- High resolution with 256 steps per revolution and 4,096 revolutions
- Robust stainless steel housing and shaft for durability
- IP67 and IP69K rated for protection against dust and water
- Low power consumption ≤ 1.5 W
- Reverse polarity protection included
- Fast initialization time of 100 ms
- Supports SSI communication interface with Gray code output
- Configurable counting sequence (CW/CCW) via cable
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and mechanical mounting according to manufacturer guidelines.
Applications
- Industrial automation for precise position measurement
- Robotics for accurate motion control
- Machine tools requiring high resolution feedback
- Conveyor systems monitoring and control
Standards & Compliance
- Complies with AS/NZS 61000 series for EMC standards
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AHM36I-S7AC008x12 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
