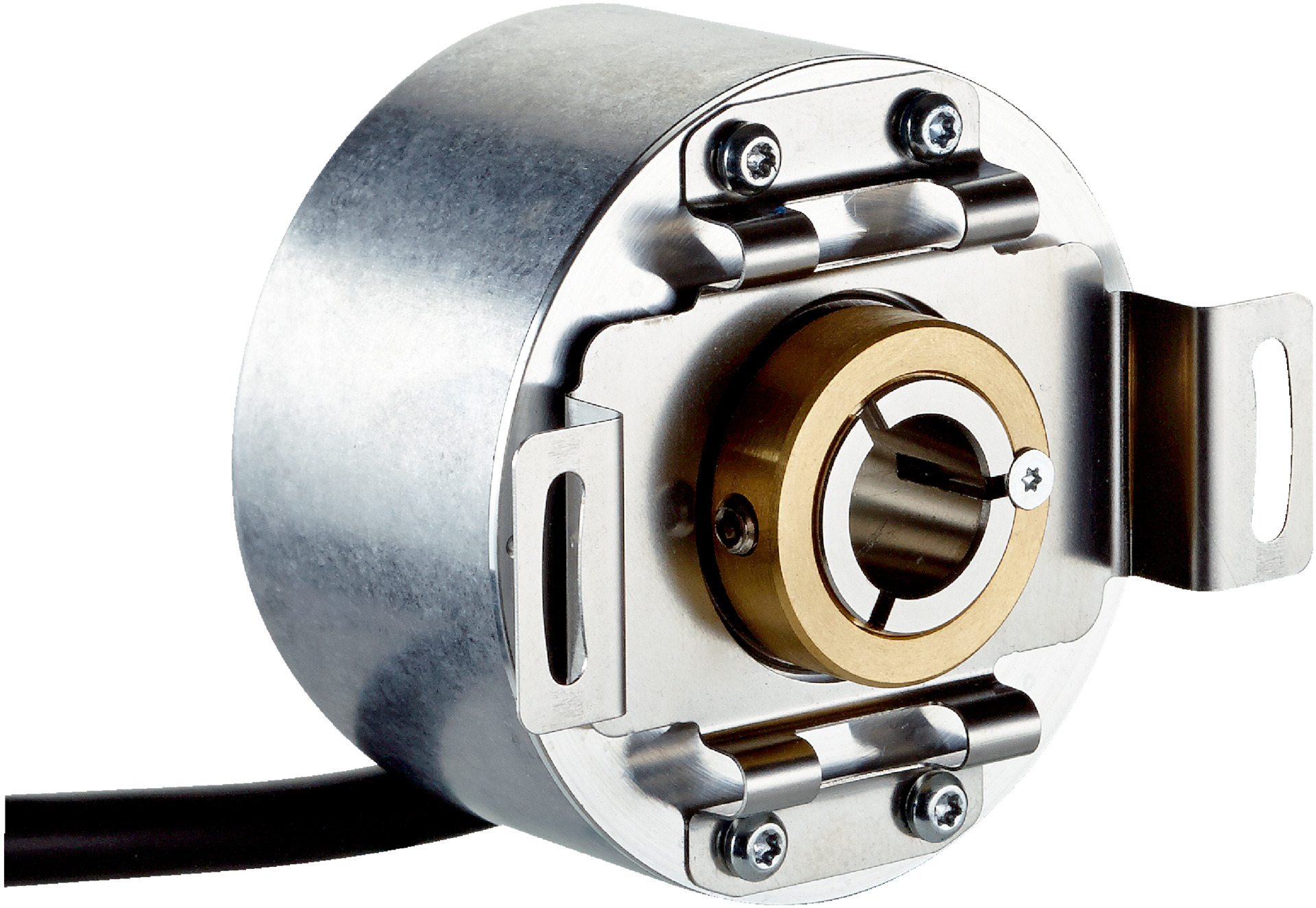

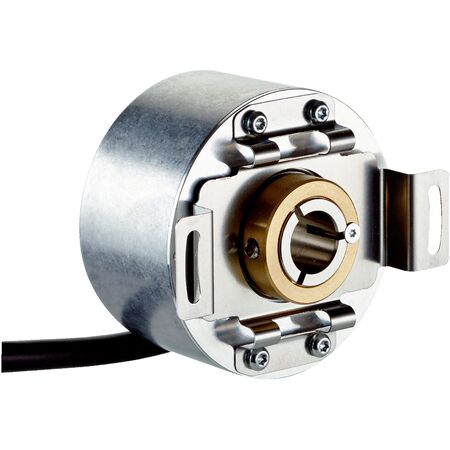

Incremental Rotary Encoder DBS60E-B4FMB1024 | 1024 Pulses/Rev | IP67 & IP65 Rated | High Speed 6000 min⁻¹ | by SICK
The Incremental Rotary Encoder DBS60E-B4FMB1024 features 1024 pulses per revolution and a blind hollow shaft design with a 10 mm diameter. Ideal for industrial automation and control systems, it offers high-speed performance up to 6000 min⁻¹ and robust protection with IP67 and IP65 ratings. Built for reliability, this encoder is perfect for robotics, conveyor systems, and precise position measurement.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1024
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° per pulse
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental TTL/HTL, 6-channel
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 0.5 W (without load)
- Connection type: 8-wire cable, 5 m length
- Supply voltage: 4.5 to 30 V
- Reference signal: 1, 90° electric, logically gated with A and B
- Reverse polarity and short-circuit protection: Yes
- Mechanical design: Blind hollow shaft, 10 mm diameter
- Flange type: 2-sided stator coupling, 63 mm screw hole circle
- Materials: Aluminum housing and flange, stainless steel shaft, PVC cable
- Start-up torque: +0.5 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: 6000 min⁻¹ (max 9000 min⁻¹)
- Moment of inertia: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 200,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature: -30°C to +100°C
- Storage temperature: -40°C to +100°C
- Shock resistance: 200 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 63mm x 50mm x 63mm
- Weight: 0.25 kg
Key Features
- Incremental encoder with 1024 pulses per revolution
- Blind hollow shaft mechanical design with 10 mm shaft diameter
- High operating speed up to 6000 min⁻¹, max 9000 min⁻¹
- Robust aluminum housing and flange with stainless steel shaft
- IP67 rated housing side and IP65 shaft side for protection
- Reverse polarity and short-circuit protection on outputs
- Low power consumption ≤ 0.5 W without load
- 6-channel TTL/HTL communication interface
- High reliability with MTTFD of 500 years (EN ISO 13849-1)
- Wide operating temperature range from -30 °C to +100 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and mechanical mounting for optimal performance and safety.
Applications
- Industrial automation and control systems
- Rotational speed and position measurement
- Robotics and machinery feedback
- Conveyor systems and motor feedback
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-B4FMB1024 incremental encoder is available for immediate purchase, ideal for industrial automation and precise rotational measurement applications.
