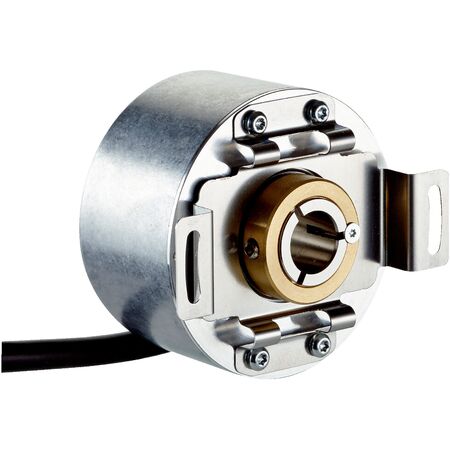

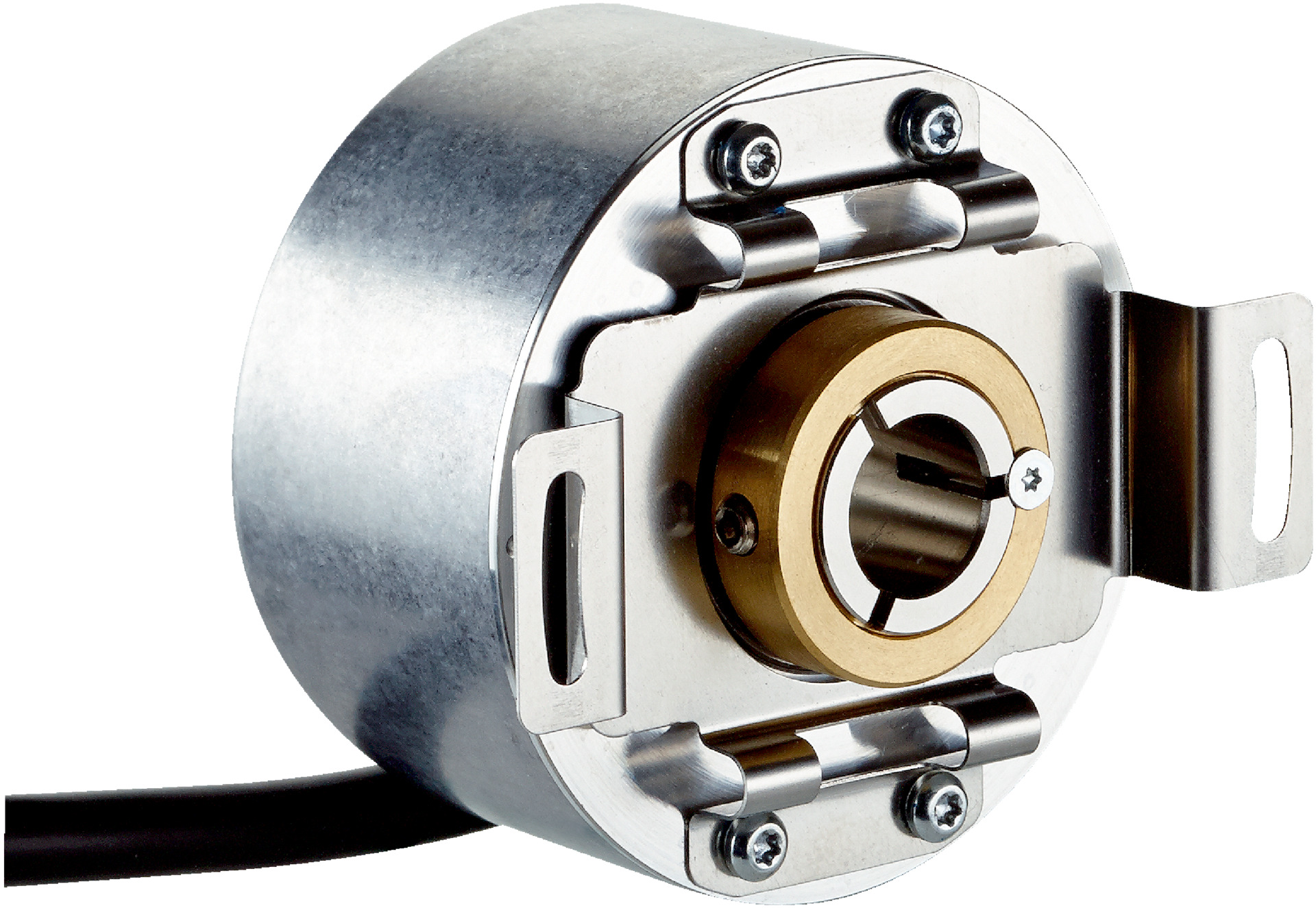

Incremental Rotary Encoder DBS60E-BAEQB1024 | 1024 Pulses/Rev | IP67 Rated | Stainless Steel Shaft | by SICK
The Incremental Rotary Encoder DBS60E-BAEQB1024 offers high precision with 1,024 pulses per revolution, making it ideal for industrial automation and robotics applications. Designed for durability, it features a robust stainless steel shaft and an IP67 rated housing for protection against dust and water. With a wide operating temperature range from -20°C to +85°C, this encoder ensures reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 1,024
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5 %
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6-channel
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 1 W (without load)
- Connection type: Cable, 8-wire, with male M23 12-pin connector, 0.5 m
- Supply voltage: 10 to 27 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity protection: Yes
- Short-circuit protection of outputs: Yes
- Mechanical design: Blind hollow shaft
- Shaft diameter: 6 mm front clamp
- Flange type: Stator coupling, 2-sided, screw hole circle 63 mm
- Shaft material: Stainless steel
- Flange and housing material: Aluminum
- Cable material: PVC
- Start up torque: > 0.5 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Permissible static movement: ± 0.3 mm radial, ± 0.5 mm axial
- Permissible dynamic movement: ± 0.1 mm radial, ± 0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 63mm x 40mm x 63mm
- Weight: 0.25 kg
Key Features
- Incremental communication interface with HTL / Push pull signals
- High resolution with 1,024 pulses per revolution
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- IP67 rated housing for protection against dust and water
- Operating temperature range from -20°C to +85°C
- Short-circuit and reverse polarity protection
- Low power consumption of ≤ 1 W without load
- High maximum operating speed up to 9,000 min⁻¹
- Long bearing lifetime of 3.6 x 10⁹ revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation for precise position and speed measurement
- Robotics and motion control systems
- Conveyor and material handling systems
- Machine tool feedback and control
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-BAEQB1024 incremental encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
