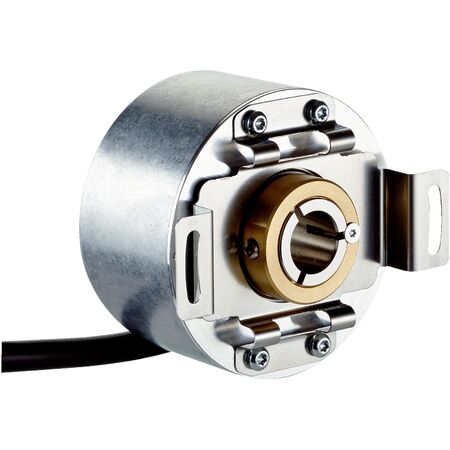

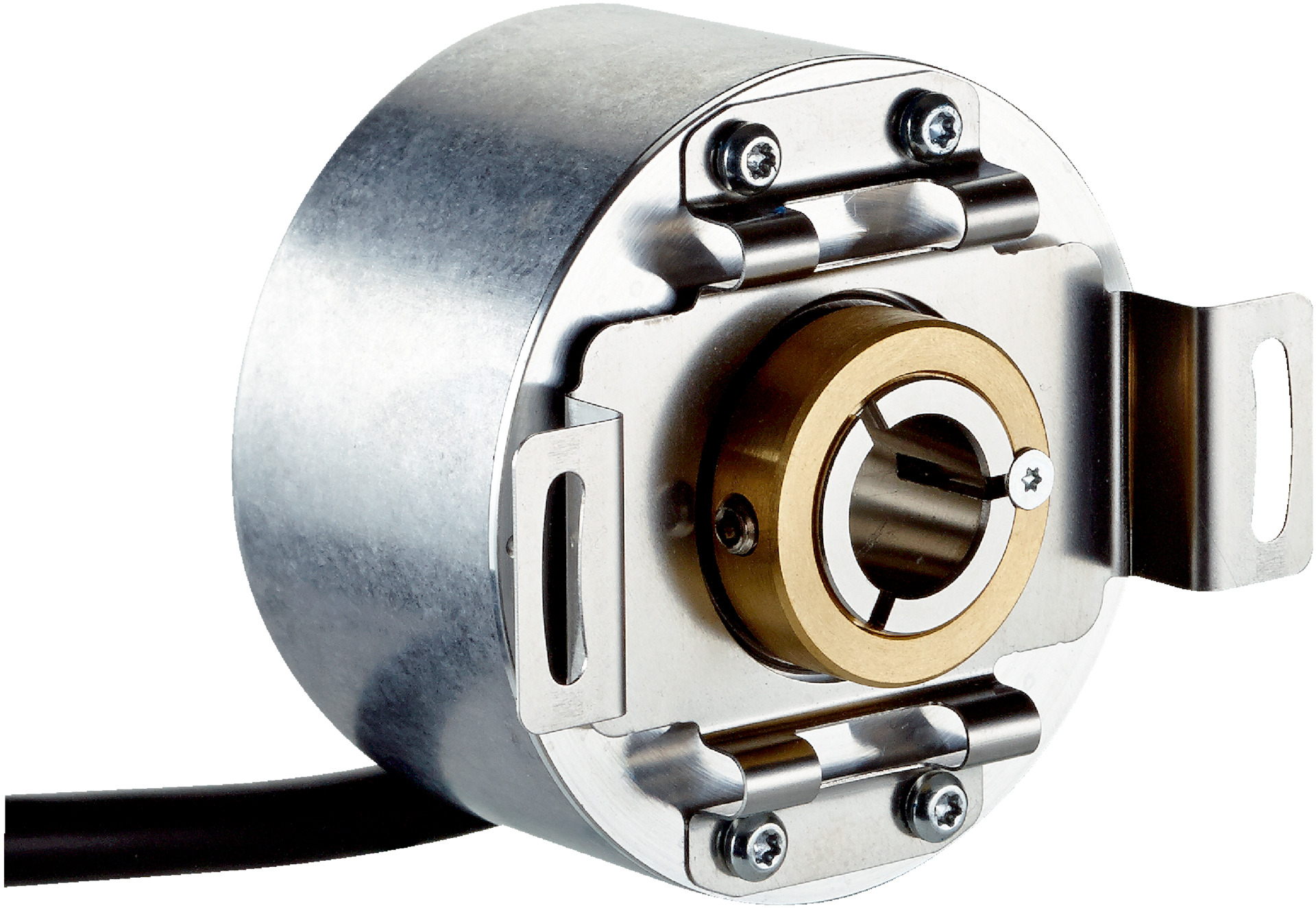

Incremental Rotary Encoder DBS60E-BHEKB2000 | 2000 Pulses/Rev | IP67 & IP65 Rated | by SICK
The Incremental Rotary Encoder DBS60E-BHEKB2000 offers high resolution with 2000 pulses per revolution, making it ideal for industrial automation and control systems. With a robust blind hollow shaft design and IP67 rated housing, it ensures reliable performance in harsh environments. This encoder supports a 6-channel incremental HTL communication interface and features fast initialization under 5 ms, making it perfect for robotics and motion control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pulses per revolution: 2000
- Measuring step: ≤ 90° electric/pulses per revolution
- Measuring step deviation: ± 18° / pulses per revolution
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Initialization time: < 5 ms
- Output frequency: > 300 kHz
- Load current: ≤ 30 mA per channel
- Power consumption: ≤ 1 W (without load)
- Connection type: Cable, 8-wire, universal, 1.5 m
- Supply voltage: 10 to 27 V
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity and short-circuit protection included
- Mechanical design: Blind hollow shaft with 15 mm diameter front clamp
- Flange type: Stator coupling, 2-sided, screw hole circle 63 mm
- Materials: Stainless steel shaft, aluminum flange and housing, PVC cable
- Start up torque: +0.5 Ncm at 20°C
- Operating torque: 0.4 Ncm at 20°C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: 6,000 min⁻¹
- Maximum operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 housing side, IP65 shaft side
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 250 g, 3 ms
- Vibration resistance: 30 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 63mm x 40mm x 63mm
- Weight: 0.25 kg
Key Features
- High resolution with 2000 pulses per revolution
- Robust blind hollow shaft mechanical design with stainless steel shaft
- IP67 rated housing side and IP65 shaft side for harsh environments
- Short-circuit and reverse polarity protection
- Fast initialization time under 5 ms
- Supports 6-channel incremental HTL / Push pull communication interface
- Operating temperature range from -20°C to +85°C
- High mechanical durability with bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Conveyor and material handling systems
- Machine tool positioning and feedback
- Safety-related monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of ≤1 W contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK DBS60E-BHEKB2000 incremental encoder is available for immediate purchase, ideal for industrial automation and safety-related applications.
